Hot Wheels Electric 286cm Race Track User Manual

1. Introduction

Thank you for purchasing the Hot Wheels Electric 286cm Race Track Set. This manual provides important information for the safe and proper assembly, operation, and maintenance of your new race track. Please read it thoroughly before use and keep it for future reference.

This 1:43 scale Hot Wheels Race Set features a total track length of 286 cm (approximately 9.3 feet), offering an exciting racing experience for children aged 5 and above. The set includes a race track, two Hot Wheels vehicles, and two hand controllers, allowing for competitive head-to-head racing.

Figure 1: Complete Hot Wheels Electric Race Track Set with two cars and two controllers, ready for racing.

2. Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• Age Recommendation: This product is suitable for children aged 5 years and older. Adult supervision is recommended, especially during assembly and initial use.
• Battery Safety: The race track requires 6 x 1.5V AA batteries (not included).
  • Do not mix old and new batteries.
  • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
  • Insert batteries with correct polarity (+ and -).
  • Remove exhausted batteries promptly.
  • Remove batteries if the product is not used for a long period.
  • Non-rechargeable batteries are not to be recharged.
  • Rechargeable batteries are only to be charged under adult supervision.
• Choking Hazard: Contains small parts. Not for children under 3 years.
• Electrical Safety: Do not immerse the track or controllers in water. Use only as intended.
• Track Placement: Set up the track on a flat, stable surface to prevent tipping and ensure smooth operation.

3. Package Contents

Verify that all items listed below are present in your package:

• 1 x Hot Wheels Race Track (multi-piece assembly)
• 2 x Hot Wheels Race Cars (approx. 7 x 3 x 2 cm each)
• 2 x Hand Controllers
• 1 x User Manual (this document)
• Note: 6 x 1.5V AA batteries are required and not included.

Figure 2: Retail packaging of the Hot Wheels Race Track Set.

Figure 3: One of the included Hot Wheels race cars, yellow with black accents.

Figure 4: The second included Hot Wheels race car, red with silver accents.

Figure 5: One of the two hand controllers, featuring a blue and grey design with Hot Wheels logo.

Figure 6: The second hand controller, featuring a red and grey design with Hot Wheels logo.

4. Setup Instructions

4.1. Track Assembly

1. Unpack all track pieces from the box.
2. Identify the main start/finish line section, which also houses the battery compartment.
3. Carefully connect the track pieces by aligning the connectors and pressing them firmly together until they click into place. Refer to the diagram on the packaging for the correct track layout.
4. Ensure all connections are secure and the track forms a continuous, stable loop.
5. Place the assembled track on a flat, level surface. The total track length is 286 cm.

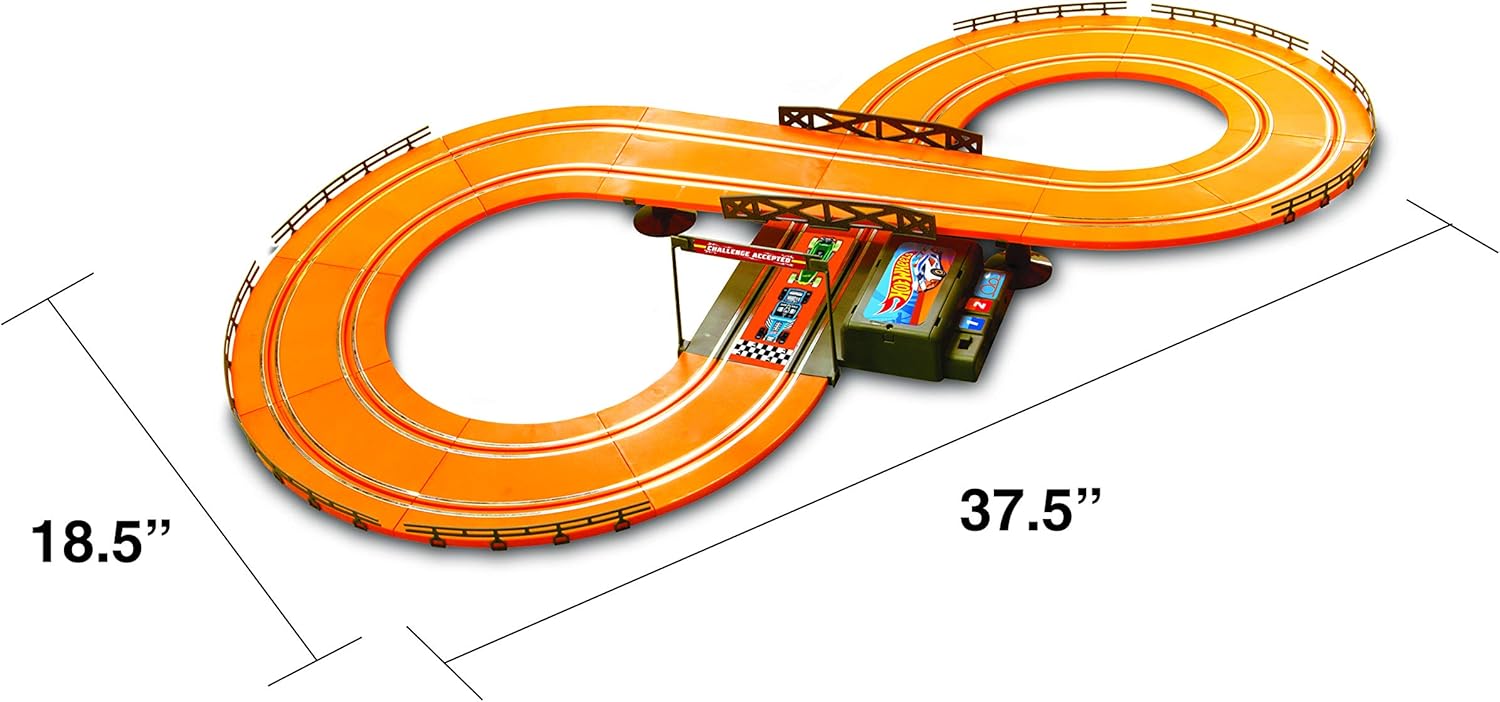

Figure 7: The assembled track showing approximate dimensions (e.g., 18.5" x 37.5" for the layout shown).

4.2. Battery Installation

The race track requires 6 x 1.5V AA batteries to power the track and cars.

1. Locate the battery compartment on the underside of the start/finish line section of the track.
2. Using a Phillips head screwdriver (not included), unscrew the battery compartment cover.
3. Insert 6 x 1.5V AA batteries, ensuring correct polarity (+ and -) as indicated inside the compartment.
4. Replace the battery compartment cover and secure it with the screw.

5. Operating Instructions

5.1. Connecting Controllers and Cars

1. Plug the two hand controllers into the designated ports on the start/finish line section of the track.
2. Place one Hot Wheels race car onto each lane of the track, ensuring the guide pin on the bottom of the car aligns with the slot in the track.

5.2. Starting a Race

1. Ensure the track is fully assembled and batteries are installed.
2. Each player takes one hand controller.
3. To make your car move, gently press the trigger on your hand controller. The harder you press, the faster your car will go.
4. Release the trigger to slow down or stop the car.
5. Race against your opponent to see who can complete the most laps or cross the finish line first!

5.3. Racing Tips

• Cornering: Reduce speed slightly when entering corners to prevent cars from flying off the track.
• Acceleration: Accelerate smoothly on straight sections for maximum speed.
• Fair Play: Encourage friendly competition and good sportsmanship.

6. Maintenance

• Cleaning:
  • Wipe the track and cars with a soft, dry cloth to remove dust and debris.
  • Do not use harsh chemicals or abrasive cleaners.
  • Ensure the track slots are clear of obstructions for smooth car movement.
• Storage:
  • When not in use, disassemble the track and store all components in the original packaging or a suitable container to prevent damage.
  • Store in a cool, dry place away from direct sunlight and extreme temperatures.
  • Remove batteries from the track if storing for extended periods to prevent leakage.

7. Troubleshooting

If you encounter any issues with your Hot Wheels Race Track, please refer to the table below:

8. Specifications

Note: While the original product specifications might state "Assembly Required: No", this refers to the cars themselves. The track set does require assembly of its multiple track pieces.

9. Warranty and Support

For warranty information or technical support, please contact the manufacturer or your retailer directly. Keep your purchase receipt as proof of purchase.

For further assistance, you may refer to the contact information provided on the product packaging or the official Hot Wheels/Kidz Tech website.
