Introduction
This manual provides instructions for the safe and efficient operation, installation, and maintenance of your KEDSUM 1000GPH Inline/Submersible Water Pump. This versatile pump is designed for amphibious use, functioning both submerged in water and connected to a pipe as an inline pump. It is suitable for various applications including water changes, water circulation, hydroponic systems, fountains, fish tanks, and aquariums.
Image: KEDSUM 1000GPH Inline/Submersible Water Pump, showcasing its compact design.
Safety Instructions
- Always disconnect the power supply before handling, installing, or performing maintenance on the pump.
- Ensure the voltage indicated on the pump label matches your power supply.
- Do not operate the pump dry. Ensure it is fully submerged or primed with water for inline use to prevent damage.
- The pump is designed for water use only. Do not use with flammable liquids or other chemicals.
- Keep the power cord away from sharp objects and hot surfaces. Do not modify the power cord or plug.
- If the pump shows any signs of damage, discontinue use immediately and contact customer support.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Product Features
- Amphibious Design: Functions as both a submersible and inline pump.
- Ultra-Quiet Operation: Engineered with a high-quality motor for minimal noise.
- High Lift Capability: Capable of lifting water up to 9.8 feet.
- Detachable & Cleanable: Easy to disassemble for routine cleaning without special tools.
- Secure Placement: Equipped with 4 strong rubber suction cups on the bottom for stable installation and vibration reduction.
- Versatile Nozzles: Includes 5 optional nozzles (4 outflow, 1 inflow) for various water flow effects.
Specifications
| Model Number | KDF354-D20V044A |
| Max Flow Rate | 1000 GPH (3800 L/H) |
| Max Lift Height | 9.8 Feet |
| Wattage | 72W |
| Voltage | 110-120V |
| Dimensions (L x W x H) | 6.7 x 4.7 x 5.3 inches |
| Power Cord Length | 6.5 Feet |
| Material | Acrylonitrile Butadiene Styrene |
Image: Diagram illustrating the pump's dimensions and the included nozzles with different sizes.

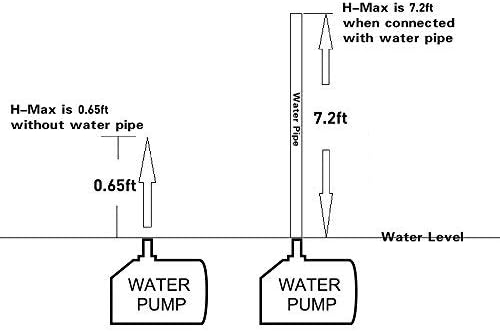

Image: Diagram showing the maximum lift height of the pump, both with and without an extended water pipe.
Package Contents
- KEDSUM 1000GPH Water Pump Unit
- 5 Optional Nozzles (various sizes for inflow and outflow)
Setup
1. Nozzle Attachment
- Select the appropriate nozzle size for your application. The pump includes 4 outflow nozzles (2x 6/7 inch (22mm), 2x 1 inch (25mm)) and 1 inflow nozzle (1 inch (25mm)).
- Screw the chosen nozzle securely onto the pump's outlet. Note that inline and outlet nozzles may have different thread sizes.
2. Placement and Installation
- For Submersible Use: Place the pump entirely underwater in your fish tank, pond, or fountain. The four rubber suction cups on the bottom can be used to secure the pump to a smooth surface, reducing vibration and noise.
- For Inline (External) Use: Connect appropriate piping to both the inlet and outlet of the pump. Important: Ensure water is poured into the pump before initiating external operation to prevent dry running and damage.

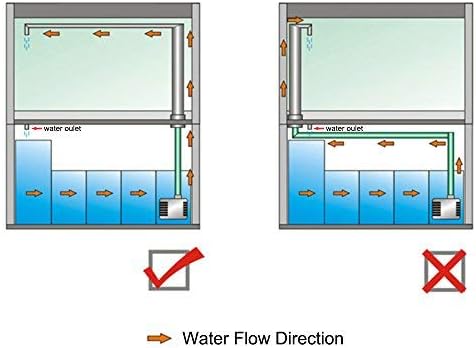

Image: Diagram illustrating the correct and incorrect water flow directions for optimal pump performance in an aquarium setup.
Operation
- Once the pump is correctly installed and connected to the desired tubing or placed submerged, ensure all connections are secure.
- Plug the 6.5ft power cord into a suitable 110-120V electrical outlet.
- The pump will begin operating, circulating water. Monitor the water flow to ensure it meets your requirements.
Image: Visual representation of various applications for the KEDSUM water pump, including aquariums, fish tanks, ponds, rockeries, and fountains.
Maintenance
Regular cleaning of your KEDSUM water pump is essential for maintaining its efficiency and extending its lifespan. The pump is designed for easy disassembly.
- Disconnect Power: Always unplug the pump from the power outlet before any maintenance.
- Disassembly: The pump can be easily separated without tools. Gently detach the front cover and impeller housing.
- Cleaning: Remove any debris, algae, or mineral buildup from the impeller, impeller shaft, and pump housing. Use a soft brush and clean water. For stubborn deposits, a mild, non-toxic cleaning solution suitable for aquatic environments may be used, followed by thorough rinsing.
- Reassembly: Ensure all components are clean and reassemble the pump carefully, making sure all seals are properly seated.
Image: Illustration showing the easy disassembly process of the pump for cleaning and the strong suction cups on its base.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power; Impeller jammed; Dry running (for inline use) | Check power connection; Disconnect power, clean impeller; Ensure pump is primed with water for inline use. |
| Reduced water flow | Clogged intake/impeller; Kinked tubing; Insufficient water level | Clean pump and impeller; Check and straighten tubing; Ensure adequate water level for submersible use. |
| Excessive noise/vibration | Debris in impeller; Improper seating of components; Pump not securely placed | Clean impeller; Reassemble pump carefully; Secure pump with suction cups on a flat surface. |
| Water leakage | Loose connections; Damaged seals | Tighten all hose connections; Inspect and replace damaged seals if necessary. |
Warranty and Support
The KEDSUM 1000GPH Inline/Submersible Water Pump comes with a 1-Year warranty from the date of purchase. This warranty covers manufacturing defects under normal use.
For warranty claims, technical support, or any issues with your product, please contact the seller or KEDSUM customer service directly. Please have your purchase receipt and model number (KDF354-D20V044A) available when contacting support.
