R&G Exhaust Hanger & Footrest Blanking Plate Kit User Manual

1. Product Overview

This R&G Exhaust Hanger Kit is specifically designed for the Suzuki GSX-R1000 '17 and GSX-R1000R '17- models. It allows for the removal of the pillion (passenger) footrests, providing a cleaner, more aggressive race/street bike aesthetic. The kit includes both an exhaust hanger to properly support your exhaust system and a footrest blanking plate for the opposite side, ensuring a balanced and finished look.

The exhaust hanger is constructed from durable 6mm aluminum and features a black powder-coated finish for longevity and a sleek appearance. It also includes a bespoke "GSX-R" printed graphic, while the footrest blanking plate features an "R&G" graphic.

2. Package Contents

Please verify that all components listed below are present in your package:

• 1 x R&G Exhaust Hanger (EH0077BK)
• 1 x R&G Footrest Blanking Plate (BLP0026BK)
• Necessary mounting hardware (bolts, washers, nuts)

Image: All components included in the R&G Exhaust Hanger and Footrest Blanking Plate Kit, laid out on a white background. This includes the main exhaust hanger bracket, the smaller footrest blanking plate, and various bolts, washers, and nuts for installation.

3. Safety Information

Always prioritize safety when working on your motorcycle. If you are unsure about any step of the installation process, it is highly recommended to seek assistance from a qualified motorcycle mechanic.

• Ensure the motorcycle is stable and securely supported on a stand before beginning any work.
• Allow the exhaust system to cool completely before handling to prevent burns.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• Use the correct tools for each fastener to avoid damage to components or injury.
• Do not overtighten fasteners. Refer to your motorcycle's service manual for specific torque specifications where applicable.
• After installation, double-check all fasteners to ensure they are secure.

4. Installation Guide (Setup)

Follow these steps to install your R&G Exhaust Hanger and Footrest Blanking Plate Kit:

1. Preparation: Park your motorcycle on a level, stable surface and secure it using a paddock stand or center stand. Ensure the exhaust system is cool to the touch.
2. Remove Existing Pillion Footrests: Carefully locate and remove the bolts securing the factory pillion footrest assemblies on both the left and right sides of the motorcycle. Retain any factory hardware that may be required for reinstallation or future use.
3. Install Exhaust Hanger (Left Side): Position the R&G Exhaust Hanger (EH0077BK) onto the left side of the motorcycle, aligning it with the mounting points where the original pillion footrest was attached. Use the provided hardware to secure the hanger. Do not fully tighten the bolts at this stage.

Image: Close-up view of the R&G Exhaust Hanger installed on the left side of a blue Suzuki GSX-R1000 motorcycle. The hanger is black with a white and red 'GSX-R' logo, securely bolted to the frame and supporting the exhaust pipe.

Image: Another angle of the R&G Exhaust Hanger installed on the left side of a blue Suzuki GSX-R1000. This view shows more of the rear wheel and brake components, highlighting how the hanger integrates with the motorcycle's design.

4. Install Footrest Blanking Plate (Right Side): On the right side of the motorcycle, align the R&G Footrest Blanking Plate (BLP0026BK) with the mounting points where the original pillion footrest was removed. Secure it using the provided hardware. Again, do not fully tighten the bolts yet.

Image: Close-up view of the R&G Footrest Blanking Plate installed on the right side of a blue Suzuki GSX-R1000. The black plate with the white 'R&G' logo is securely bolted to the frame, covering the area where the passenger footrest was previously located.

Image: A wider perspective of the R&G Footrest Blanking Plate installed on the right side of a blue Suzuki GSX-R1000. This view shows more of the motorcycle's rear section, illustrating how the blanking plate streamlines the bike's profile.

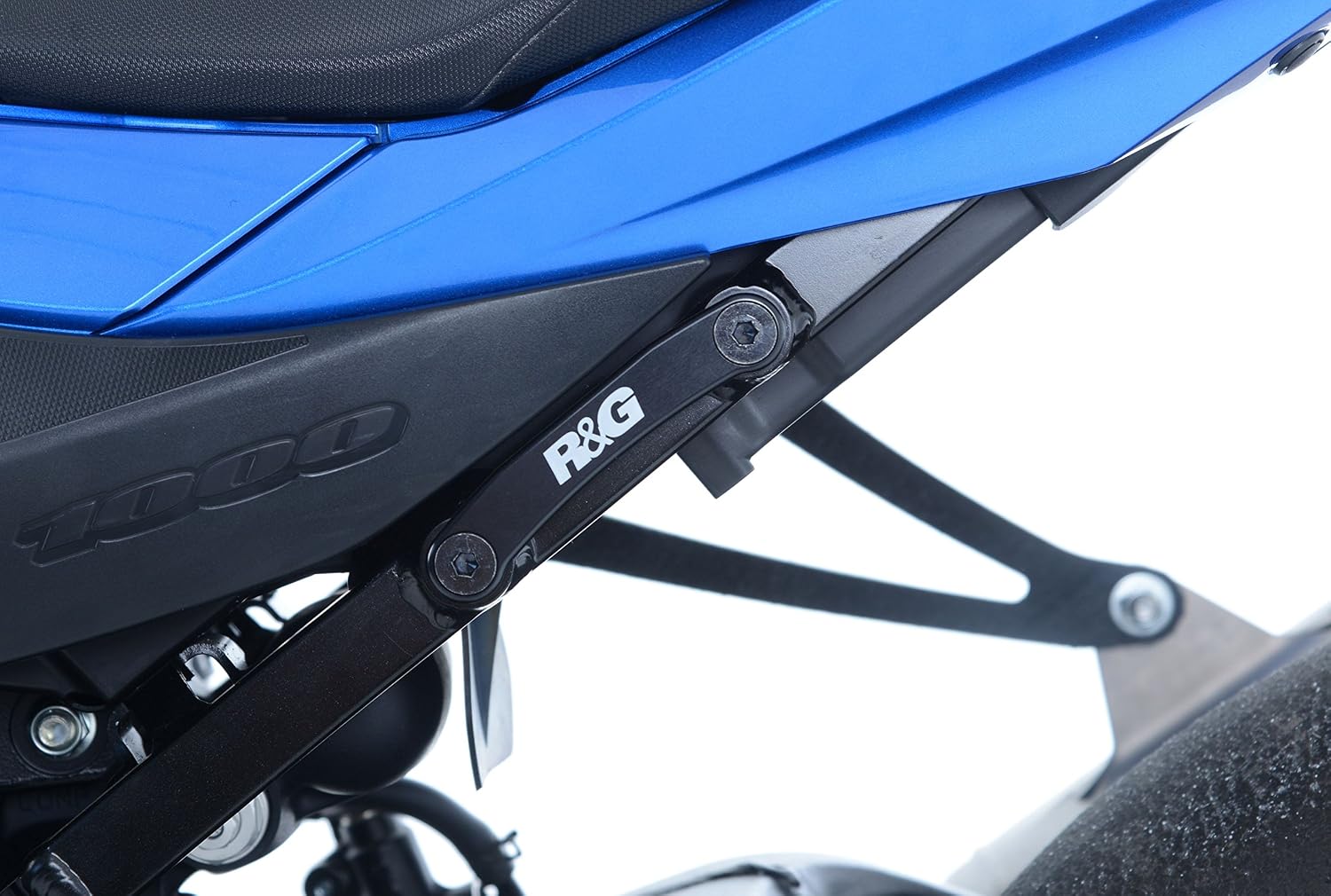

Image: An alternative angle of the R&G Footrest Blanking Plate installed on the right side of a blue Suzuki GSX-R1000. This image provides a slightly different perspective of the plate's fitment and its contribution to the bike's clean lines.

5. Final Tightening: Once both the exhaust hanger and blanking plate are correctly positioned, progressively tighten all mounting bolts. Ensure they are snug and secure, but do not overtighten.
6. Final Check: After installation, gently shake the components to ensure they are firmly attached and do not have any play. Verify that there is no interference with other motorcycle parts.

5. Maintenance

To ensure the longevity and appearance of your R&G Exhaust Hanger and Footrest Blanking Plate, follow these maintenance guidelines:

• Regular Inspection: Periodically check all mounting bolts for tightness, especially after the first few rides following installation. Vibrations from riding can sometimes cause fasteners to loosen.
• Cleaning: Clean the components with mild soap and water. Avoid using harsh abrasive cleaners, solvents, or high-pressure washers, as these can damage the powder-coated finish.
• Damage Check: Inspect the hanger and blanking plate for any signs of damage, cracks, or corrosion. If significant damage is found, consider replacing the affected component.

6. Troubleshooting

If you encounter any issues during or after installation, refer to the following common troubleshooting tips:

• Loose Fit: If the hanger or blanking plate feels loose after tightening, re-check that all bolts are correctly seated and torqued. Ensure no debris is preventing a flush fit.
• Vibration: Minor vibrations are normal for motorcycle components. However, if excessive vibration occurs, ensure the exhaust hanger is not making contact with other parts of the motorcycle frame or exhaust system. Re-check all mounting points.
• Missing Hardware: If any hardware is missing, do not attempt to install the product with incorrect fasteners. Contact R&G support for replacement parts.

7. Specifications

8. Warranty and Support

This R&G product is manufactured to high standards. For information regarding warranty coverage, please refer to the official R&G website or contact your authorized R&G dealer.

For technical support, installation queries, or replacement parts, please contact R&G customer service directly through their official channels. Always provide your product model number (RG-EH0077BKA) when seeking support.
