Product Overview
This manual provides instructions for the assembly, installation, and maintenance of your Relaxdays Stainless Steel Outdoor Stair Handrail. This handrail is designed for both indoor and outdoor use, offering a secure and elegant solution for stairs and ramps.
- Complete set: handrail, posts, and bars. This specific model includes 2 posts and 3 crossbars, with a total length of 1.0 meter.
- Elegant stainless steel design for durable use.
- Versatile installation: can be mounted horizontally or at an incline to suit various stair configurations.
- Secure floor mounting using the provided metal anchors.
Components Included
Please verify that all components are present before beginning assembly:
- Stainless steel stair handrail (1 unit)
- Posts (2 units)
- Crossbars (3 units)
- Mounting hardware and metal anchors (6 pieces)
- Assembly instructions (this document)
Note: Decorations shown in product images are not included.
Figure 1: Detailed view of the base plate, metal anchors, and other mounting hardware.
Setup and Installation
Follow these steps for proper installation of your handrail. It is recommended to have two people for installation.
- Site Preparation: Choose a suitable location for installation, ensuring the surface is stable and capable of supporting the handrail. Mark the positions for the posts.
- Drilling Holes: Drill holes for the metal anchors at the marked positions. Ensure the depth and diameter of the holes match the specifications of the provided anchors.
- Securing Posts: Insert the metal anchors into the drilled holes. Place the handrail posts over the anchors and secure them firmly using the provided mounting hardware.
- Attaching Handrail and Crossbars: Attach the main handrail to the top of the posts. Then, insert and secure the three crossbars between the posts. Ensure all connections are tight.
- Adjusting Angle (if applicable): The handrail features an adjustable joint at the top of the posts, allowing for installation on inclined surfaces. Adjust the angle as needed and tighten the joint securely.
Figure 2: Example of a fully installed handrail on outdoor stone steps.
Figure 3: Detail of the adjustable joint for inclined mounting.

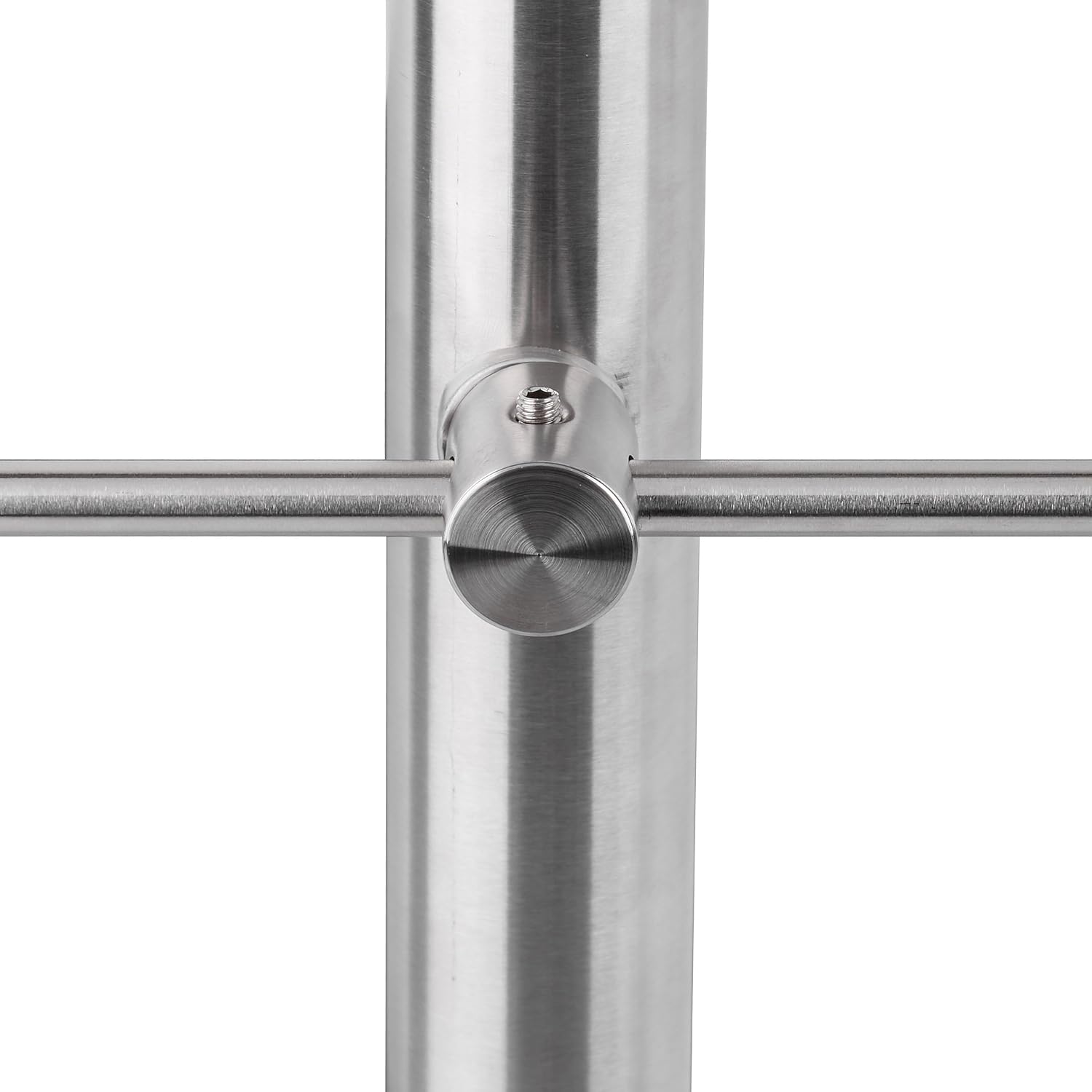

Figure 4: Crossbar attachment detail.
Operation
The Relaxdays Stainless Steel Outdoor Stair Handrail is designed to provide stable support and enhance safety when ascending or descending stairs or ramps. Once properly installed, the handrail requires no specific operational steps. Simply grasp the handrail for support as needed.
Ensure that all mounting points remain secure and that the handrail does not wobble or show signs of instability during use.
Maintenance
To ensure the longevity and appearance of your stainless steel handrail, regular maintenance is recommended:
- Cleaning: Clean the stainless steel surfaces regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners or scouring pads, which can scratch the brushed finish.
- Rust Prevention: Although made of stainless steel, prolonged exposure to harsh environmental conditions or certain chemicals can lead to surface discoloration or "tea staining." Wipe down the handrail after rain or exposure to moisture to prevent water spots.
- Inspection: Periodically inspect all mounting points, screws, and joints for tightness. Re-tighten any loose fasteners to maintain stability and safety.
- Damage: In case of damage to the handrail or its components, contact the manufacturer or a qualified professional for repair or replacement.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Handrail feels wobbly or loose. | Mounting hardware is loose or anchors are not fully secured. | Check and re-tighten all screws and bolts. Ensure anchors are properly installed in a solid surface. If the surface is compromised, professional assistance may be required. |
| Surface rust or discoloration appears on stainless steel. | Exposure to harsh chemicals, salt, or prolonged moisture; improper cleaning. | Clean the affected area with a stainless steel cleaner and a soft cloth. Ensure regular drying after exposure to moisture. Avoid using abrasive materials. |
| Difficulty adjusting the angle of the handrail. | Joint mechanism is too tight or obstructed. | Loosen the adjustment screws slightly. Ensure no debris is obstructing the joint. Adjust carefully and re-tighten. |
Specifications
| Brand | Relaxdays |
| Model Number | 10020766_636 |
| Material | Stainless Steel |
| Color | Silver |
| Finish Type | Brushed |
| Item Weight | 8.4 Kilograms |
| Length | 1.0 meter |
| Posts | 2 |
| Crossbars | 3 |
| Load Capacity | 50 Kilograms |
| Country of Origin | China |
Figure 5: Handrail dimensions (Height: 108 cm, Length: 100 cm, Width: 7.5 cm).
Warranty and Support
Manufacturer's Warranty: No specific warranty is provided for this product.
For any questions, missing parts, or issues not covered in this manual, please contact Relaxdays customer support. Please have your model number (10020766_636) and purchase information ready when contacting support.
You can find more information and contact details on the official Relaxdays website or through your retailer.
