Important Safety Instructions
Please read these instructions carefully before using the appliance. Keep this manual for future reference.
- Always ensure the power supply matches the voltage specified on the rating label.
- Do not use the vacuum cleaner to pick up flammable or combustible liquids, hot ashes, or sharp objects.
- Never immerse the motor unit in water or any other liquid.
- Unplug the appliance from the power outlet before cleaning or performing any maintenance.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Do not operate the vacuum cleaner with a damaged cord or plug.
- This appliance is for indoor use only.
- Supervise children to ensure they do not play with the appliance.
Product Overview
The Impex VC-4701 is a multipurpose dry vacuum cleaner designed for efficient cleaning of various surfaces. Its robust 1600W motor provides powerful suction, while the 18-liter dust capacity allows for extended cleaning sessions without frequent emptying. The unit features a strong metal body, four wheels for easy mobility, and a convenient carrying handle.
Figure 1: Impex VC-4701 Multipurpose Dry Vacuum Cleaner with key features and accessories. This image displays the Impex VC-4701 vacuum cleaner, highlighting its 1600W power, 18-liter dust capacity, 1-year warranty, and multi-purpose accessories. It also shows the high-efficient motor, powerful suction, dry vacuum cleaner function, perfect cleaning capability, and low noise operation.
Key Features:
- Powerful 1600W Motor: Ensures strong suction for effective cleaning.
- 18-Liter Dust Capacity: Large non-rusting container for collecting significant amounts of dirt.
- Blower Function: Provides versatility for clearing debris from hard-to-reach areas.
- Telescopic Metal Tube: Adjustable for comfortable use and extended reach.
- 4 Wheels for Mobility: Allows for easy movement around your home.
- Low Noise Level: Designed for quieter operation.
- Dust Fill Indication: Alerts you when the dust container needs emptying.
Package Contents:

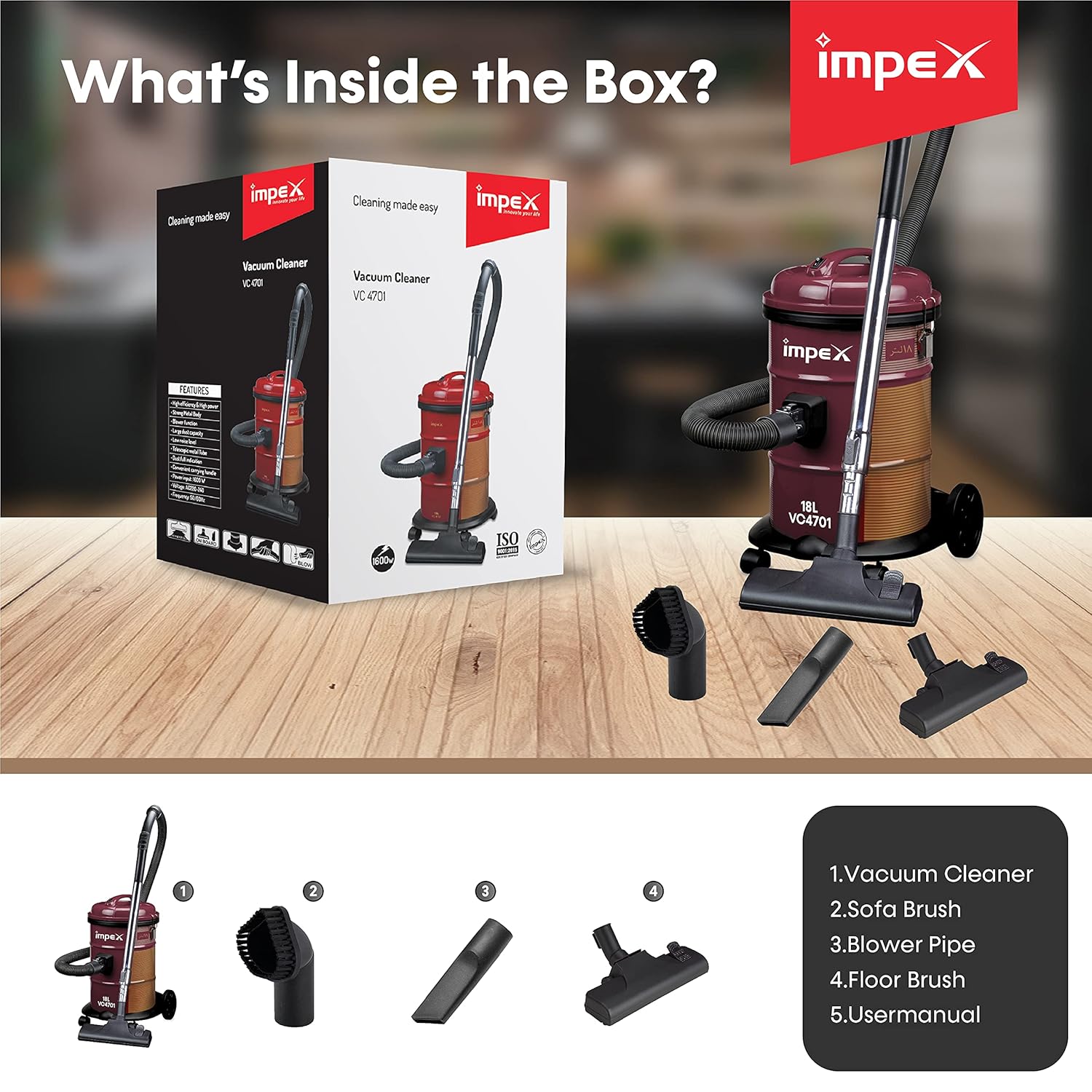

Figure 2: Contents of the Impex VC-4701 Multipurpose Dry Vacuum Cleaner package. This image details the contents included in the Impex VC-4701 package. It shows the main vacuum cleaner unit, a sofa brush, a blower pipe, a floor brush, and the user manual, along with the product packaging.
- Impex VC-4701 Vacuum Cleaner Unit
- Flexible Hose
- Telescopic Metal Tube
- Floor Brush
- Sofa Brush
- Blower Pipe (Crevice Nozzle)
- User Manual
Assembly and Setup
Follow these steps to assemble your Impex VC-4701 vacuum cleaner before first use:
- Attach the Wheels: Insert the four wheels into the designated slots on the bottom of the vacuum cleaner unit until they click into place.
- Connect the Flexible Hose: Insert the larger end of the flexible hose into the suction inlet on the front of the vacuum cleaner unit. Ensure it is securely fastened. For blower function, connect the hose to the blower outlet located at the rear of the unit.
- Assemble the Telescopic Tube: Connect one end of the telescopic metal tube to the handle of the flexible hose. Extend the tube to your desired length by pressing the release button and pulling.
- Attach Cleaning Accessory: Select the appropriate cleaning accessory (floor brush, sofa brush, or blower pipe) and attach it firmly to the open end of the telescopic metal tube.
- Power Connection: Unwind the power cord and plug it into a suitable electrical outlet.
Operation
Dry Vacuuming:
- Ensure the flexible hose is connected to the suction inlet.
- Select the appropriate accessory for the surface you intend to clean (e.g., floor brush for hard floors/carpets, sofa brush for upholstery).
- Press the power button (usually located on the top of the unit) to turn on the vacuum cleaner.
- Adjust the suction power if your model features an adjustable speed control.
- Move the accessory slowly over the surface to be cleaned, allowing the vacuum to pick up dirt and debris.
- When finished, press the power button to turn off the appliance and unplug it from the power outlet.
Figure 3: Impex VC-4701 vacuum cleaner being used for hassle-free cleaning in a car interior. This image demonstrates the Impex VC-4701 vacuum cleaner in use, specifically showing its application for cleaning a car interior, emphasizing its powerful 1600W motor and 18-liter capacity for effective and convenient cleaning.
Blower Function:
- Disconnect the flexible hose from the suction inlet.
- Connect the flexible hose to the blower outlet, typically located at the rear of the vacuum cleaner unit.
- Attach the blower pipe (crevice nozzle) to the end of the telescopic tube or directly to the hose.
- Turn on the vacuum cleaner. Air will now be expelled from the hose, allowing you to blow away dust and debris from hard-to-reach areas, such as corners, vents, or outdoor spaces.
- When finished, turn off the appliance and unplug it.
Maintenance and Care
Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.
Emptying the Dust Container:
- When the dust fill indicator shows full, or suction power decreases, it's time to empty the container.
- Unplug the vacuum cleaner from the power outlet.
- Release the latches on the sides of the unit and carefully lift off the motor head.
- Remove the dust filter (if applicable) and empty the collected dust and debris into a waste bin.
- Clean the inside of the container with a damp cloth if necessary.
- Reassemble the filter and motor head, ensuring the latches are securely fastened.
Cleaning the Filter:
- The HEPA filter should be cleaned regularly to maintain suction efficiency.
- Remove the filter as described in the 'Emptying the Dust Container' section.
- Gently tap the filter to dislodge dust. For a more thorough clean, rinse the filter under cool running water.
- Important: Allow the filter to air dry completely before reinserting it into the vacuum cleaner. Do not use the appliance with a wet filter.
General Cleaning:
- Wipe the exterior of the vacuum cleaner with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Check the hose and accessories for blockages periodically and clear any obstructions.
Troubleshooting
If you encounter issues with your Impex VC-4701, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum cleaner does not turn on. | No power supply. Power button not pressed. | Check if the plug is securely inserted into the outlet. Ensure the power outlet is functional. Press the power button firmly. |
| Low suction power. | Dust container full. Filter is clogged. Hose or accessory blocked. | Empty the dust container. Clean or replace the filter. Check and clear any blockages in the hose or accessories. |
| Unusual noise during operation. | Blockage in the hose or nozzle. Motor head not properly secured. | Check for and remove any obstructions. Ensure the motor head latches are securely fastened. |
| Overheating and automatic shutdown. | Prolonged use. Clogged filter or hose. | Allow the unit to cool down for at least 30 minutes. Clean the filter and check for blockages. |
If the problem persists after trying these solutions, please contact Impex customer support.
Specifications
Figure 4: Dimensions of the Impex VC-4701 Multipurpose Dry Vacuum Cleaner. This image illustrates the physical dimensions of the Impex VC-4701 vacuum cleaner, showing a height of 54.5 cm and a width of 34 cm, providing a clear understanding of its size.
| Feature | Detail |
|---|---|
| Model Number | VC 4701 |
| Brand | Impex |
| Power Input | 1600 Watts |
| Voltage | 240 Volts |
| Capacity | 18 Litres (Dust) / 21 Litres (Output) |
| Filter Type | HEPA Filter |
| Special Features | Adjustable Speed Control, Corded, Blower Function, Dust Fill Indication |
| Surface Recommendation | Hard Floor, Carpets |
| Noise Level | 68 Decibels |
| Item Weight | 6 Kilograms |
| Cord Length | 5 Meter |
| Number of Wheels | 4 |
| Color | Maroon |
Warranty and Support
Warranty Information:
The Impex VC-4701 Multipurpose Dry Vacuum Cleaner comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions. Please retain your purchase receipt as proof of purchase for warranty claims.
The warranty does not cover:
- Damage caused by improper use, negligence, or accident.
- Damage resulting from unauthorized repairs or modifications.
- Normal wear and tear of consumable parts like filters or brushes.
Customer Support:
For any product inquiries, technical assistance, or warranty claims, please contact Impex customer support:
- Manufacturer Contact: 1800-425-9444
- Manufacturer: Impex
When contacting support, please have your product model number (VC 4701) and purchase details ready.
