1. Introduction and Overview
The Sunlite Decorative Duplex Receptacle is designed to provide reliable power in residential and commercial settings. This 15 Amp, 125 Volt, grounded receptacle features a modern design and tamper-resistant technology for enhanced safety. It is UL Listed, ensuring it meets safety and quality standards for electrical products.
Each receptacle includes two 3-prong grounded outlets, capable of handling the power demands of most household devices. Its classic design offers a sleek alternative to traditional wall outlets, suitable for new construction, renovation projects, or simply updating existing electrical service.

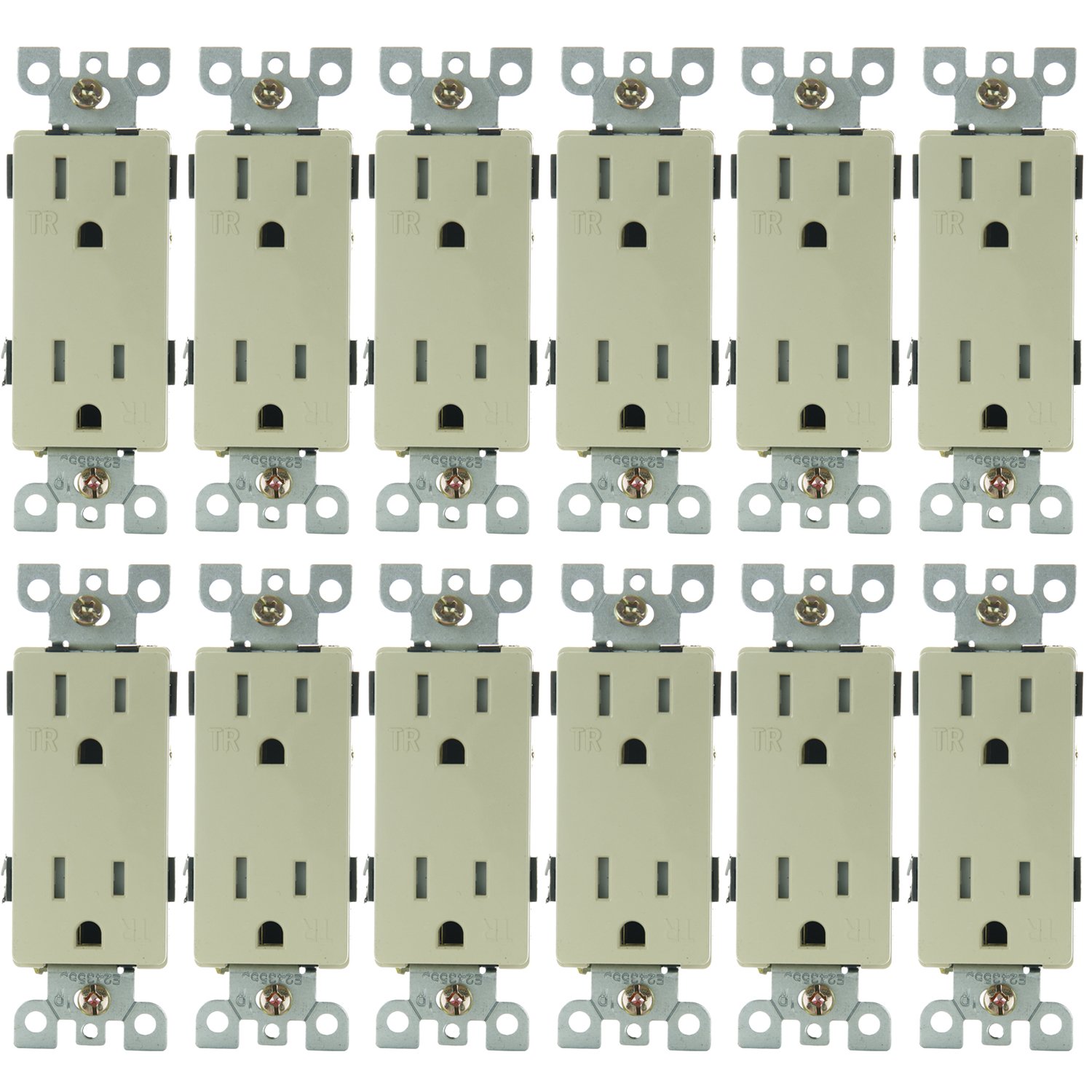

Image 1.1: Sunlite Decorative Duplex Receptacle in Ivory. This image shows the front view of the product, highlighting its color and design.
2. Safety Information
WARNING: To avoid fire, shock, or death, turn off power at the circuit breaker or fuse box and test that power is off before wiring. All wiring should be performed by a qualified electrician or in accordance with local electrical codes.
- This receptacle is UL Listed, indicating compliance with safety standards.
- Features Tamper-Resistant (TR) technology, which helps prevent foreign objects from being inserted into the outlets, reducing the risk of electrical injuries, especially for children.
- Do not exceed the specified electrical ratings of 15 Amp and 125 Volts.
- Ensure proper grounding during installation.
- Do not install in wet or damp locations unless specifically rated for such environments.

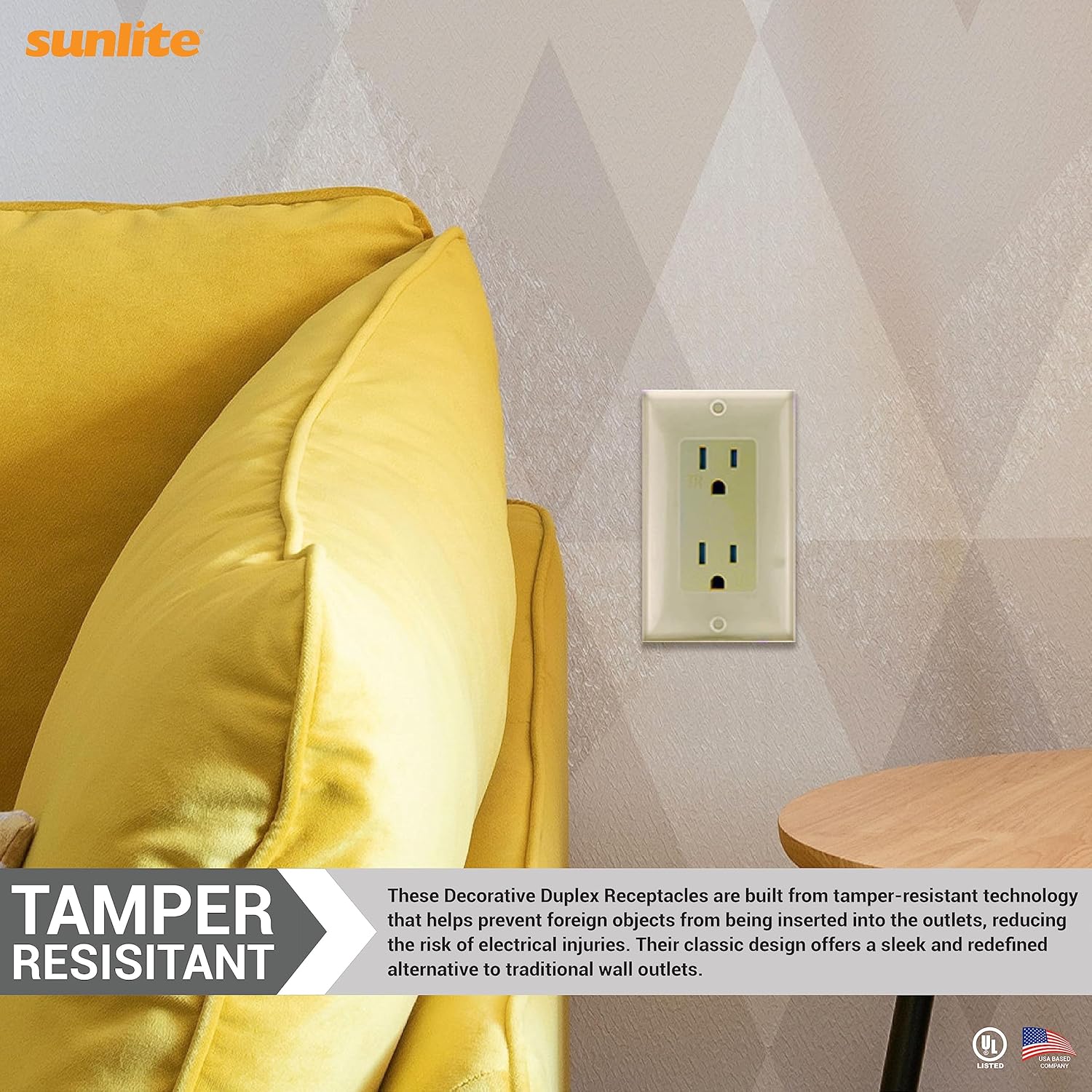

Image 2.1: A Sunlite Tamper-Resistant Duplex Receptacle installed in a wall. This image emphasizes the tamper-resistant feature, designed to enhance safety by preventing accidental insertion of foreign objects.
3. Setup and Installation
Installation of the Sunlite Duplex Receptacle is designed to be straightforward, typically taking less than 15 minutes with a screwdriver. Follow these steps carefully:
Tools Required:
- Screwdriver (Phillips and/or Flathead)
- Wire Strippers/Cutters
- Voltage Tester
Installation Steps:
- Turn Off Power: Locate the circuit breaker or fuse box that controls the power to the outlet you are working on. Turn off the power completely. Use a voltage tester to confirm that the power is off at the outlet.
- Remove Old Receptacle (if applicable): Unscrew the wall plate and then the mounting screws holding the old receptacle in the electrical box. Carefully pull the old receptacle out of the box.
- Disconnect Wires: Disconnect the wires from the old receptacle. Typically, there will be a black (hot), white (neutral), and bare copper or green (ground) wire. Note which wire connects to which terminal.
- Prepare Wires: If necessary, strip approximately 1/2 inch of insulation from the ends of the wires. Ensure the wire ends are clean and straight.
- Connect New Receptacle:
- Connect the black (hot) wire to the brass-colored screw terminal.
- Connect the white (neutral) wire to the silver-colored screw terminal.
- Connect the bare copper or green (ground) wire to the green screw terminal.
- Mount New Receptacle: Carefully push the wired receptacle back into the electrical box. Secure it with the mounting screws provided.
- Install Wall Plate: Attach the decorative wall plate over the receptacle and secure it with the center screw.
- Restore Power: Turn the power back on at the circuit breaker or fuse box.
- Test: Test the newly installed receptacle with a known working device to ensure proper function.
Image 3.1: Detailed view of the Sunlite Duplex Receptacle, illustrating its dimensions (4.1 inches L x 1 inch W) and key features like 15 Amp, 125 Volts, and easy installation. This image is useful for understanding the physical attributes during installation.
4. Operating Instructions
Operating the Sunlite Duplex Receptacle is simple:
- Plugging In Devices: Insert the plug of your electrical device firmly into one of the two outlets. The tamper-resistant shutters may require a slightly firmer and even push to open, ensuring both prongs enter simultaneously.
- Unplugging Devices: Grasp the plug and pull it straight out from the outlet. Avoid pulling by the cord.
- Overload Protection: This receptacle does not provide overload protection. Ensure that the total current draw of devices plugged into the circuit does not exceed the circuit breaker's rating.
5. Maintenance
The Sunlite Duplex Receptacle requires minimal maintenance to ensure continued safe and efficient operation:
- Cleaning: To clean the receptacle and wall plate, first turn off power at the circuit breaker. Use a soft, damp cloth to wipe the surface. Do not use abrasive cleaners or solvents, as these can damage the finish. Ensure the surface is completely dry before restoring power.
- Regular Inspection: Periodically check the receptacle for any signs of damage, such as cracks, discoloration, or loose connections. If any damage is observed, turn off power and have the receptacle inspected and replaced by a qualified electrician.
- Avoid Overloading: Do not continuously overload the receptacle or the circuit it is connected to. This can lead to overheating and potential fire hazards.
6. Troubleshooting
If you encounter issues with your Sunlite Duplex Receptacle, consider the following troubleshooting steps:
- No Power to Outlet:
- Check your circuit breaker or fuse box. A tripped breaker or blown fuse will cut power to the circuit. Reset the breaker or replace the fuse.
- Ensure the receptacle is properly wired. Turn off power and re-check wire connections at the terminals.
- If other outlets on the same circuit are working, the issue might be with the specific receptacle or its wiring.
- Plug Does Not Insert Fully:
- This is likely due to the tamper-resistant feature. Ensure you are inserting both prongs of the plug simultaneously and with a firm, even push. The internal shutters require both prongs to be inserted at the same time to open.
- Do not force the plug, as this can damage the receptacle or the plug.
- Receptacle Feels Warm:
- A slightly warm receptacle can be normal with heavy use. However, if it feels excessively hot, turn off power immediately and disconnect any devices. This could indicate an overload or a loose connection. Consult a qualified electrician.
- Sparks or Burning Smell:
- Immediately turn off power at the circuit breaker. Do not use the outlet. This indicates a serious electrical issue that requires immediate attention from a qualified electrician.
If troubleshooting steps do not resolve the issue, or if you are unsure about any electrical work, contact a qualified electrician.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | 40878-SU |
| Electrical Rating | 15 Amp, 125 Volts |
| Outlet Type | Duplex, 3-prong Grounded |
| Safety Feature | Tamper Resistant (TR) |
| Certifications | UL Listed |
| Material | Metal, Plastic |
| Color | Ivory |
| Product Dimensions | 4.1 inches (L) x 1 inch (W) x 0.1 inches (D) |
| Item Weight | 0.48 ounces |
| Compatible Devices | All standard electrical devices |
Image 7.1: A Sunlite Duplex Receptacle installed in a kitchen. This image reinforces the product's certified quality and suitability for various residential applications.
8. Warranty Information
For detailed warranty information regarding your Sunlite Decorative Duplex Receptacle, please refer to the packaging of the product. Warranty terms and conditions are typically provided directly on the product packaging or included documentation.
9. Support
If you have questions, require technical assistance, or need further support regarding your Sunlite Decorative Duplex Receptacle, please:
- Consult the official Sunlite website for product information and FAQs.
- Contact Sunlite customer service through the contact information provided on their official website or product packaging.
- For complex electrical issues or if you are uncomfortable performing electrical work, always consult a qualified and licensed electrician.
