Introduction
This manual provides detailed instructions for the installation, maintenance, and specifications of the Fetco 1000.00009.00 Top with Hardware. This component is designed for use with specific Fetco L3D-15 and L3D-20 series commercial beverage equipment, ensuring proper function and integration.
Fetco is a leading manufacturer of high-quality coffee brewing equipment, and this top assembly is an original equipment manufacturer (OEM) part designed to meet their rigorous standards.
What's in the Box
Carefully unpack the contents and verify that all items are present and undamaged. If any components are missing or damaged, contact your supplier immediately.
- 1 x Fetco 1000.00009.00 Top Assembly
- Associated Mounting Hardware (screws)

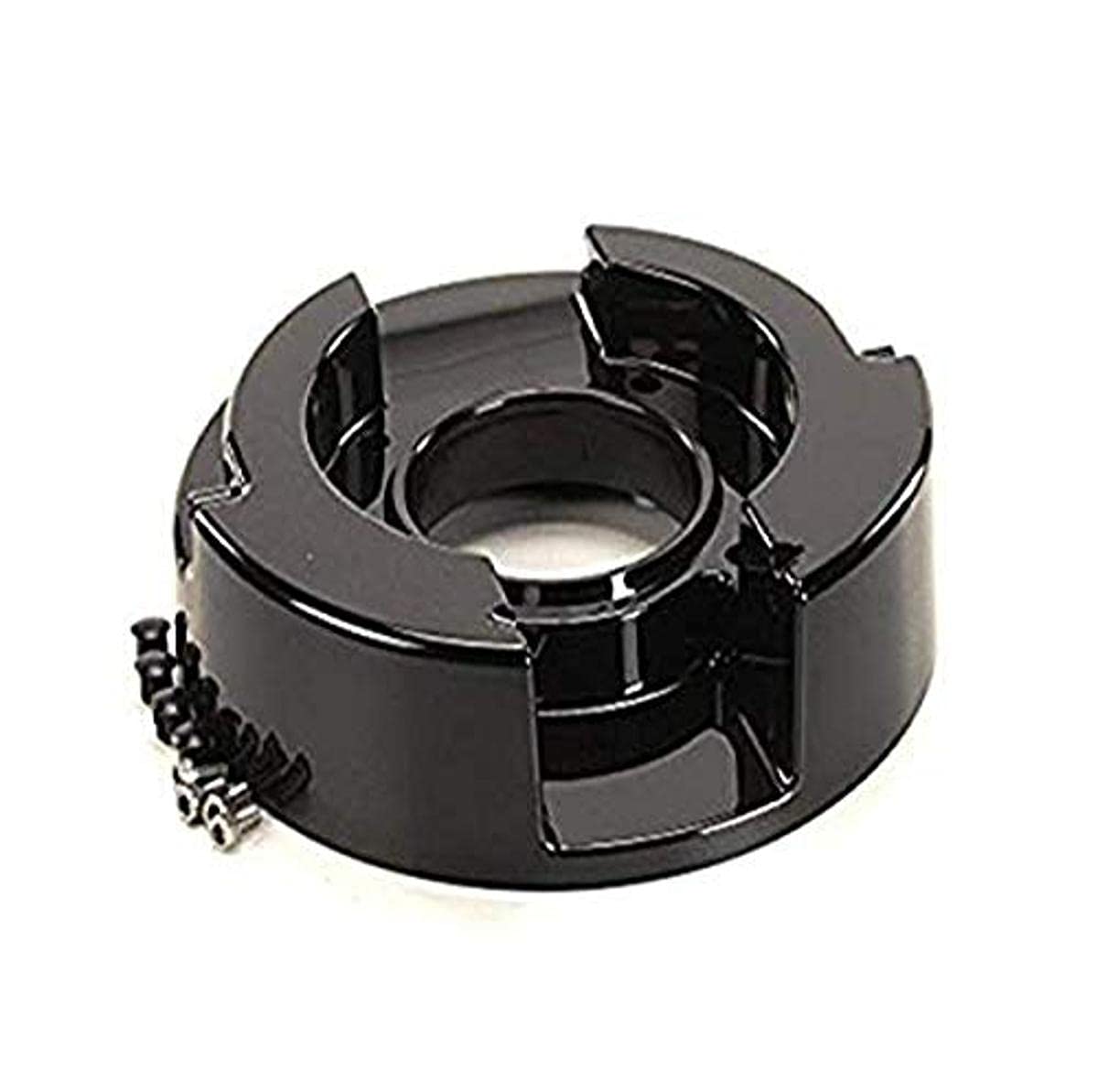

Image 1: The Fetco 1000.00009.00 Top Assembly, showing the main component and the included mounting screws.
Setup and Installation
This section outlines the steps for correctly installing the Fetco 1000.00009.00 Top with Hardware onto your compatible Fetco beverage equipment.
Required Tools (Not Included):
- Appropriate screwdriver for mounting screws
- Clean cloth
Installation Steps:
- Safety First: Ensure the main beverage equipment is powered off and unplugged from the electrical outlet before beginning installation. Allow any hot surfaces to cool completely.
- Prepare the Installation Area: If replacing an existing top, carefully remove the old component and any remaining hardware. Clean the mounting surface thoroughly to ensure a secure fit.
- Position the Top Assembly: Align the Fetco 1000.00009.00 Top Assembly with the designated mounting points on your Fetco L3D-15 or L3D-20 unit. Ensure it sits flush and correctly oriented.
- Secure with Hardware: Using the provided mounting screws, carefully insert and tighten them into the designated holes. Do not overtighten, as this can damage the component or the equipment. Tighten until snug.
- Verify Installation: Gently attempt to move the installed top assembly to ensure it is securely fastened and does not wobble.
- Restore Power: Once installation is complete and verified, plug the main beverage equipment back into the electrical outlet and power it on.
Image 2: A closer view of the Fetco Top Assembly, highlighting the areas where the hardware is attached.
Operating Considerations
The Fetco 1000.00009.00 Top with Hardware is a structural component designed to integrate with your Fetco L3D-15 or L3D-20 series commercial beverage equipment. It does not have active operational controls.
Its primary function is to provide a secure and aesthetically integrated top for the unit, contributing to the overall structural integrity and containment of internal components. Ensure it remains securely attached during operation of the main equipment.
Maintenance
Regular maintenance of the Fetco 1000.00009.00 Top with Hardware will ensure its longevity and proper appearance.
- Cleaning: Wipe the surface of the top assembly with a soft, damp cloth. For stubborn stains, a mild, non-abrasive cleaner can be used. Avoid harsh chemicals or abrasive materials that could damage the finish.
- Inspection: Periodically inspect the top assembly for any signs of wear, cracks, or damage. Check that all mounting screws remain tight. If any issues are found, address them promptly to prevent further damage or compromise to the equipment.
- Component Replacement: If the top assembly becomes significantly damaged or worn, it should be replaced with an authentic Fetco 1000.00009.00 part to maintain equipment integrity and performance.
Troubleshooting
This section addresses common issues related to the Fetco 1000.00009.00 Top with Hardware.
| Problem | Possible Cause | Solution |
|---|---|---|
| Top assembly is loose or wobbly. | Mounting screws are loose. | Tighten all mounting screws. Do not overtighten. |
| Top assembly does not fit correctly. | Incorrect model part; debris on mounting surface. | Verify part number 1000.00009.00. Clean mounting surface thoroughly. |
| Visible damage (cracks, chips). | Physical impact; material fatigue. | Replace the top assembly with a new Fetco 1000.00009.00 part. |
Specifications
Key specifications for the Fetco 1000.00009.00 Top with Hardware:
| Attribute | Detail |
|---|---|
| Model Number | 1000.00009.00 |
| Brand | Fetco |
| Product Dimensions (L x W x H) | 7 inches x 9 inches x 9 inches (7"D x 9"W x 9"H) |
| Package Weight | 0.6 pounds (9.6 ounces) |
| Color | Black |
| Country of Origin | United States |
| Compatible Equipment | Fetco L3D-15, L3D-20 series commercial beverage equipment |
Warranty and Support
For specific warranty information regarding the Fetco 1000.00009.00 Top with Hardware, please refer to the documentation provided with your original Fetco beverage equipment or visit the official Fetco website.
For technical support, replacement parts, or service inquiries, please contact Fetco customer service or an authorized Fetco service provider. Always use genuine Fetco replacement parts to ensure compatibility and maintain product performance.
You can typically find contact information on the manufacturer's official website: www.fetco.com
