Eureka Forbes Jazz Vacuum Cleaner

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Eureka Forbes Jazz Vacuum Cleaner. Please read these instructions thoroughly before using the appliance and retain them for future reference.

The Forbes Jazz Vacuum Cleaner is designed for deep cleaning with its powerful 1200-watt motor, generating 19 KPA suction to remove embedded dust and dirt from various surfaces. Key features include a 1.5-liter dust bag, automatic cord rewind, and 360° swivel wheels for enhanced maneuverability.

Important Safety Instructions

When using electrical appliances, basic precautions should always be followed, including the following:

• Read all instructions before using this vacuum cleaner.
• Always disconnect the appliance from the power supply before cleaning or maintenance.
• Do not use the vacuum cleaner to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without the dust bag and/or filters in place.
• Do not allow children to operate the vacuum cleaner. Close supervision is necessary when used near children.
• Do not immerse the appliance in water or any other liquid.
• Inspect the power cord and plug for damage before each use. Do not use if the cord or plug is damaged.
• Use only as described in this manual. Use only manufacturer's recommended attachments.

Package Contents

Verify that all items are present in the package:

• Eureka Forbes Jazz Vacuum Cleaner Unit
• Accessory Kit (includes crevice nozzle, carpet cleaner, 2-in-1 brush, etc.)
• Instruction Manual

Product Overview

Familiarize yourself with the main components of your vacuum cleaner.

Figure 1: Main unit of the Eureka Forbes Jazz Vacuum Cleaner, showing the canister, hose, and floor nozzle.

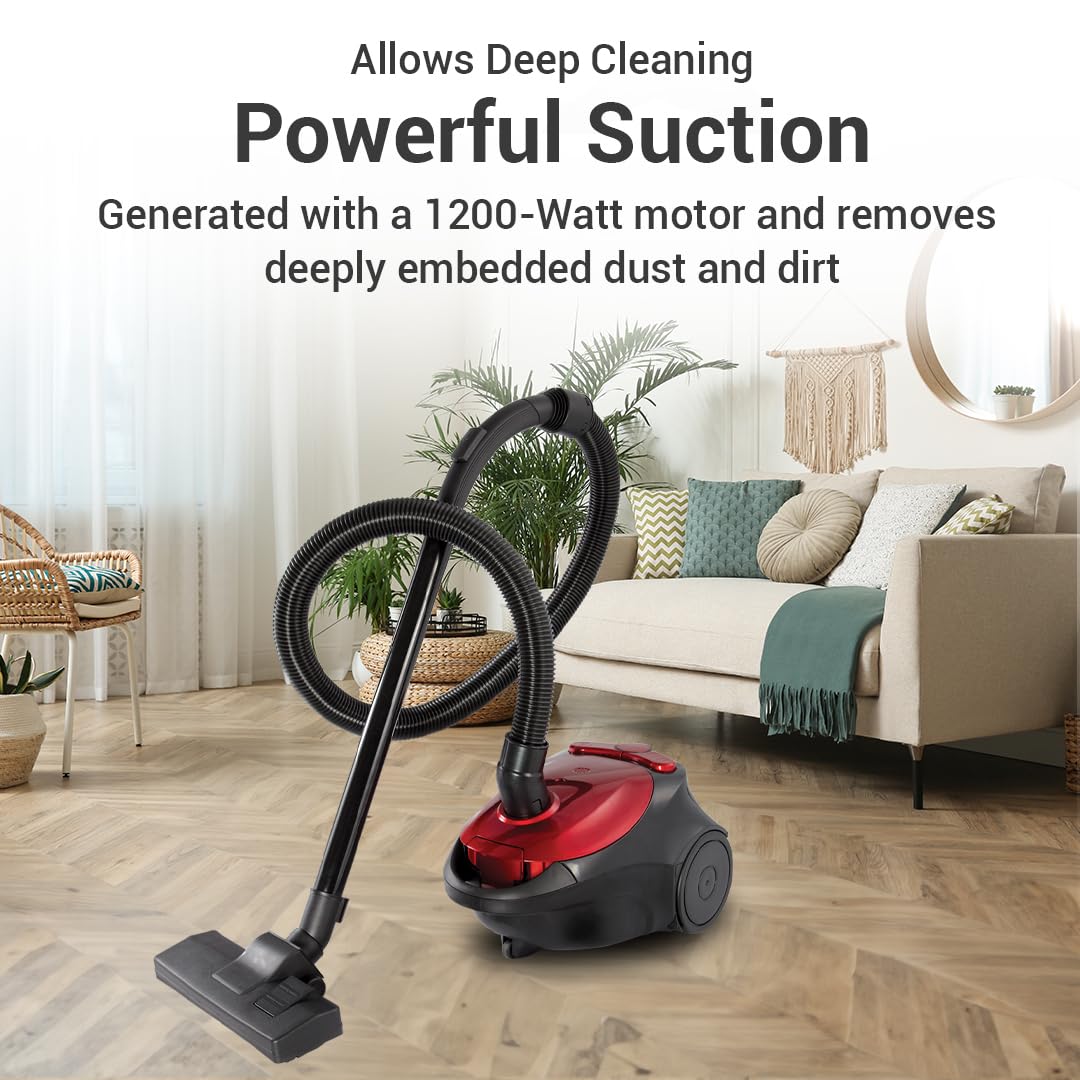

Figure 2: The vacuum cleaner in operation, demonstrating its powerful suction capability for deep cleaning in a home environment.

Figure 3: Detail of the 360° swivel wheels, designed for easy handling and enhanced mobility during cleaning tasks.

Figure 4: The range of specialized accessories provided, including a crevice nozzle, carpet cleaner, and 2-in-1 brush, for comprehensive cleaning.

Figure 5: The large 1.5-liter dust bag, designed for extended cleaning sessions and easy disposal of collected dust.

Figure 6: The automatic cord rewind feature, allowing for convenient storage and preventing cord damage or tripping hazards.

Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for storage or if return is necessary.
2. Hose Assembly: Insert the flexible hose into the suction inlet on the main unit until it clicks securely into place.
3. Wand and Nozzle Attachment: Connect the telescopic wand to the hose handle. Then, attach the desired floor nozzle (e.g., carpet cleaner or hard floor brush) to the end of the wand.
4. Accessory Attachment: For specialized cleaning, attach the appropriate accessory (crevice nozzle, 2-in-1 brush) directly to the hose handle or the telescopic wand.
5. Power Connection: Extend the power cord and plug it into a suitable electrical outlet. Ensure the voltage matches the appliance's requirements.

Operating Instructions

1. Power On/Off: Press the power button (Controller Type: Push Button) located on the main unit to turn the vacuum cleaner on or off.
2. Cleaning Surfaces:
   • For carpeted floors, use the carpet cleaner attachment.
   • For hardwood floors, use the appropriate hard floor brush or the general floor nozzle.
   • For upholstery, stairs, or pet hair removal, use the smaller brush or crevice nozzle attachments.
   • For car interiors, the crevice nozzle and small brush are effective for tight spaces.
3. Blower Function: This model also features a powerful blower. To use, detach the hose from the suction inlet and attach it to the blower outlet (usually located at the rear of the unit).
4. Cord Rewind: After use, press the automatic cord rewind button to retract the power cord safely into the unit.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.

Emptying the Dust Bag

1. The vacuum cleaner is equipped with a Dust Bag Full Indicator. When this indicator shows full, or when suction power decreases, it is time to empty the dust bag.
2. Ensure the vacuum cleaner is unplugged from the power outlet.
3. Open the dust bag compartment cover.
4. Carefully remove the dust bag. Dispose of the collected dust in a waste bin.
5. Reinsert the empty dust bag, ensuring it is properly seated. Close the compartment cover securely.

Cleaning Filters

This vacuum cleaner uses a HEPA Filter. Filters should be checked regularly and cleaned or replaced as needed.

1. Unplug the appliance.
2. Locate the filter compartments (typically near the dust bag and at the exhaust).
3. Remove the filters. Tap them gently over a dustbin to dislodge accumulated dirt. If washable, rinse under cool running water and allow to air dry completely before reinserting. Do not use detergents or hot water.
4. Replace filters if they are heavily soiled or damaged.

General Cleaning

• Wipe the exterior of the vacuum cleaner with a soft, damp cloth. Do not use abrasive cleaners.
• Check the hose and attachments for blockages periodically.

Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

Specifications

Warranty Information

For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Eureka Forbes website. Keep your purchase receipt as proof of purchase for warranty claims.

Customer Support

Should you require assistance, service, or have any questions regarding your Eureka Forbes Jazz Vacuum Cleaner, please contact:

• Manufacturer: Eureka Forbes Limited
• Phone Number: 18602661177
• Email Id: customercare@eurekaforbes.com
• Registered Office Address: B1/B2, 701, 7th Floor, Marathon Innova, Off. Ganpatrao Kadam Marg, Lower Parel (West), Mumbai, Maharashtra – 400013

You can also visit the Eureka Forbes Store on Amazon for more product information.
