BECA BHT-2000GALTP Smart Floor Heating Thermostat User Manual

1. Introduction

Thank you for choosing the BECA BHT-2000GALTP Smart Floor Heating Thermostat. This device is designed to provide intelligent and efficient control over your electric floor heating system, ensuring optimal comfort and energy savings. Featuring a modern black screen display and intuitive touch controls, this thermostat offers 5+2 weekly programming capabilities to suit your lifestyle.

Figure 1: Front view of the BECA BHT-2000GALTP Smart Floor Heating Thermostat, displaying temperature, time, and mode indicators.

2. Safety Information

Please read this section carefully before installation and operation to prevent personal injury or damage to the product.

• Installation must be carried out by a qualified electrician in accordance with local electrical codes and regulations.
• Always disconnect power at the circuit breaker before installing, cleaning, or servicing the thermostat.
• Do not expose the thermostat to water or excessive humidity.
• Ensure all wiring connections are secure and properly insulated.
• This thermostat is designed for indoor use only.

3. Package Contents

Verify that all items are present in the package:

• BECA BHT-2000GALTP Thermostat Unit
• Mounting Screws (2)
• User Manual (this document)

4. Specifications

5. Installation (Setup)

The thermostat is designed for installation into a standard 86mm square or European 60mm round wall box. Ensure the power supply is disconnected before beginning installation.

1. Turn off the main power supply to the heating system at the circuit breaker.
2. Separate the mounting plate from the thermostat unit by gently prying the bottom clips.
3. Connect the wiring according to the diagram in Section 6.
4. Mount the back plate into the wall box using the provided screws.
5. Align the thermostat unit with the mounting plate and snap it into place.
6. Restore power to the heating system.

Figure 2: Side profile of the thermostat, illustrating its compact design for wall mounting.

6. Wiring Diagram

Proper wiring is essential for the safe and correct operation of your thermostat. Refer to the diagrams below and ensure all connections are secure.

Figure 3: Rear view of the thermostat with terminal labels for power, load, and NTC sensor.

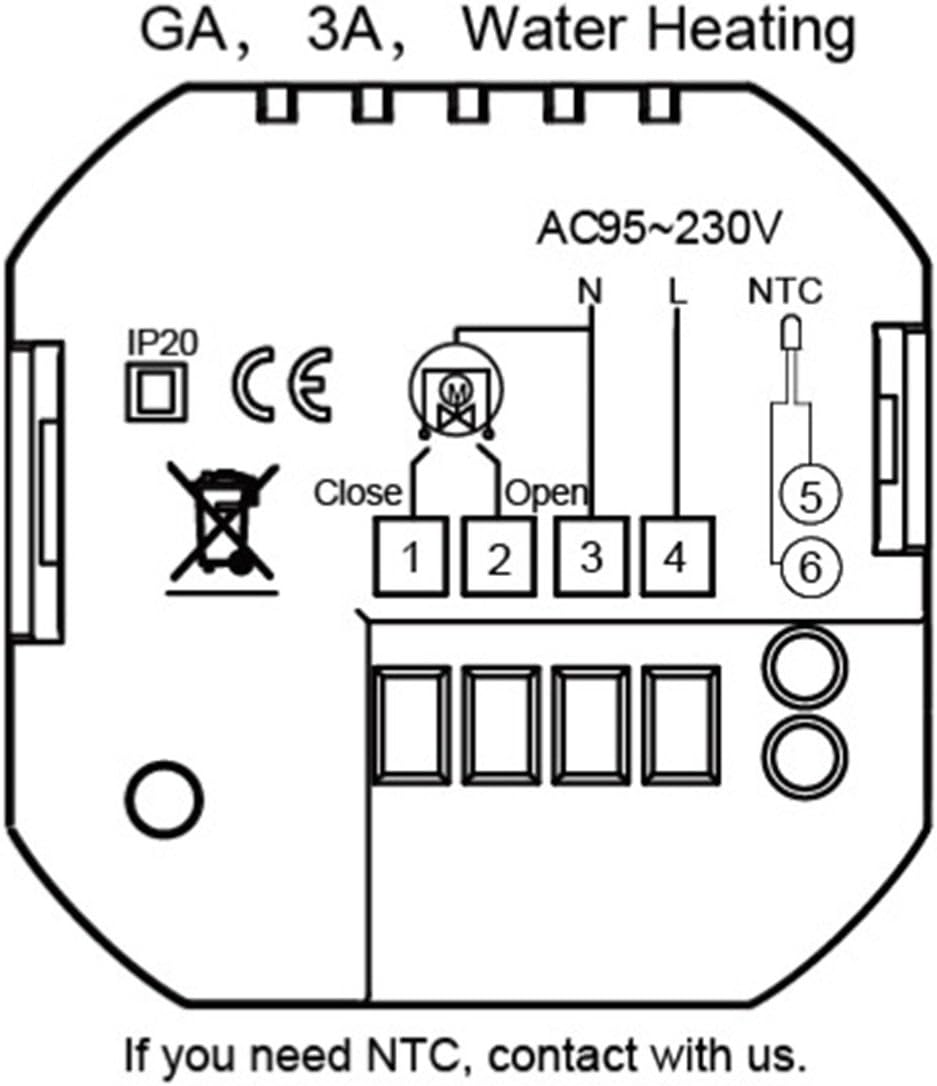

Figure 4: Detailed wiring schematic for GA, 3A, Water Heating models. Connect Live (L) and Neutral (N) to terminals 3 and 4 respectively. Connect the heating load to terminals 1 and 2. The NTC floor sensor connects to terminals 5 and 6.

Terminal Descriptions:

• N: Neutral wire for power supply.
• L: Live wire for power supply.
• 1, 2: Load connections for the heating element.
• 5, 6: NTC sensor connections (for floor temperature sensing).

7. Operation

The thermostat features a clear display and touch buttons for easy operation.

Figure 5: Thermostat display and button function overview.

Button Functions:

• M (Mode): Press to switch between Manual mode and Program mode.
• ⏱ (Clock/Time): Press to set time and date. Hold to enter programming settings.
• ⏻ (Power): Press to turn the thermostat ON/OFF.
• ▲ (Up Arrow): Increase temperature or adjust settings.
• ▼ (Down Arrow): Decrease temperature or adjust settings.

Setting Time and Date:

1. With the thermostat ON, press the ⏱ button once. The hour digit will flash.
2. Use ▲ and ▼ to adjust the hour.
3. Press ⏱ again to move to minutes, then use ▲ and ▼ to adjust.
4. Press ⏱ again to move to the day of the week (1-7, Monday-Sunday), then use ▲ and ▼ to adjust.
5. Press ⏱ again or wait 10 seconds to save and exit.

8. Programming (5+2 Weekly Schedule)

The thermostat supports 5+2 weekly programming, allowing you to set different temperatures for weekdays (Monday-Friday) and weekends (Saturday-Sunday) across six time periods each day.

1. With the thermostat ON, hold the ⏱ button for 3-5 seconds to enter programming mode. The display will show "WEEK" and the first period (Period 1) for weekdays.
2. Use ▲ and ▼ to adjust the start time for Period 1.
3. Press ⏱ to move to the temperature setting for Period 1. Use ▲ and ▼ to adjust the desired temperature.
4. Repeat steps 2 and 3 for Period 2 through Period 6 for weekdays.
5. After setting all 6 periods for weekdays, the display will switch to weekend programming (Saturday-Sunday). Repeat the process for Period 1 through Period 6 for weekends.
6. Once all periods are set, press ⏱ again or wait 10 seconds to save the settings and exit programming mode.

Default Program Settings (Example):

9. Maintenance

The BECA BHT-2000GALTP thermostat requires minimal maintenance.

• Cleaning: Wipe the display and casing with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• No User Serviceable Parts: Do not attempt to open or repair the thermostat yourself. Refer all servicing to qualified personnel.

10. Troubleshooting

If you encounter issues with your thermostat, refer to the following common problems and solutions:

11. Warranty and Support

For warranty information or technical support, please contact your point of purchase or the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: BECA
