1. Product Overview
The Orion Motor Tech 21-Piece Ball Joint Press Kit is a heavy-duty tool designed for the efficient removal and installation of press-fit parts. This comprehensive kit includes a C-frame press, various adapters, and receiver tubes, making it suitable for servicing ball joints, U-joints, and brake anchor pins on a wide range of 2-wheel drive (2WD) and 4-wheel drive (4WD) vehicles. Its robust construction ensures durability and reliability for demanding automotive tasks.
Figure 1.1: Orion Motor Tech 21-Piece Ball Joint Press Kit in its blue storage case.
Figure 1.2: Overview of the professional ball joint press kit components.
2. Safety Information
WARNING: Always read and understand all instructions before using this tool kit. Failure to follow these instructions may result in serious injury or property damage.
- Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
- Ensure the vehicle is securely supported on jack stands or a lift before beginning any work. Never rely solely on a jack.
- Use the correct adapters and receiver tubes for your specific application to prevent damage to the tool or vehicle components.
- Inspect all tools for damage before each use. Do not use damaged equipment.
- Keep hands and clothing clear of moving parts during operation.
- Apply steady, controlled pressure. Avoid sudden impacts or excessive force that could cause components to slip or break.
- Keep children and bystanders away from the work area.
- Store the kit in its case in a clean, dry place when not in use.
3. Package Contents
The Orion Motor Tech 21-Piece Ball Joint Press Kit includes the following components, neatly organized in a heavy-duty ABS plastic blow-molded carrying case:
Figure 3.1: Visual representation of the 21-piece kit contents.
- 1x C-Frame Press
- 1x Forcing Screw (10-inch)
- 1x Center Rod
- 3x Receiving Tubes (various sizes)
- 1x Receiving Cup
- 1x Install Cup
- 1x Install Cup Adapter
- 1x Installation Adapter
- 1x Removal Adapter
- 9x Adapters (various sizes and shapes)
- 1x Sleeve
The kit is designed for easy storage and quick organization, ensuring all components are readily accessible.
4. Setup & Assembly
Before use, identify the specific components required for your task. The kit includes various adapters and receiver tubes to accommodate different ball joint, U-joint, and brake anchor pin sizes and configurations.
4.1 Key Components
Figure 4.1: The C-frame press and various receiver tubes.
The core of the kit is the heavy-duty C-frame press and the 10-inch forcing screw. These components are constructed from forged solid carbon steel with an anti-rust black-oxide finish for maximum strength and longevity.
Figure 4.2: The robust C-frame press, built for durability.
Figure 4.3: The 10-inch forcing screw features tough forged steel, heat treatment, and a reinforced jackscrew for maximum torque.
4.2 Selecting Adapters
Carefully select the appropriate receiving tubes, installing cups, and removal adapters that match the size and shape of the component you are working on. Incorrect selection can lead to damage or improper operation.
Figure 4.4: Diagram illustrating various universal adapters and sleeves.
Figure 4.5: More examples of universal adapters and sleeves for diverse applications.
5. Operating Instructions
This kit is designed to simplify the removal and installation of ball joints, U-joints, and brake anchor pins without requiring the removal of the control arm from the vehicle.
5.1 General Usage
Figure 5.1: The kit's versatility for ball joint, U-joint, and brake anchor pin service.
The process generally involves positioning the C-frame press with the appropriate adapters and receiver tubes around the component to be pressed. The forcing screw is then tightened, applying pressure to either remove or install the part.
5.2 Ball Joint Removal & Installation
For ball joint service, select a receiving tube that fits over the ball joint housing and an adapter that presses against the ball joint stud or body. For removal, ensure the receiving tube allows the ball joint to pass through. For installation, ensure the installing cup presses evenly on the ball joint body.

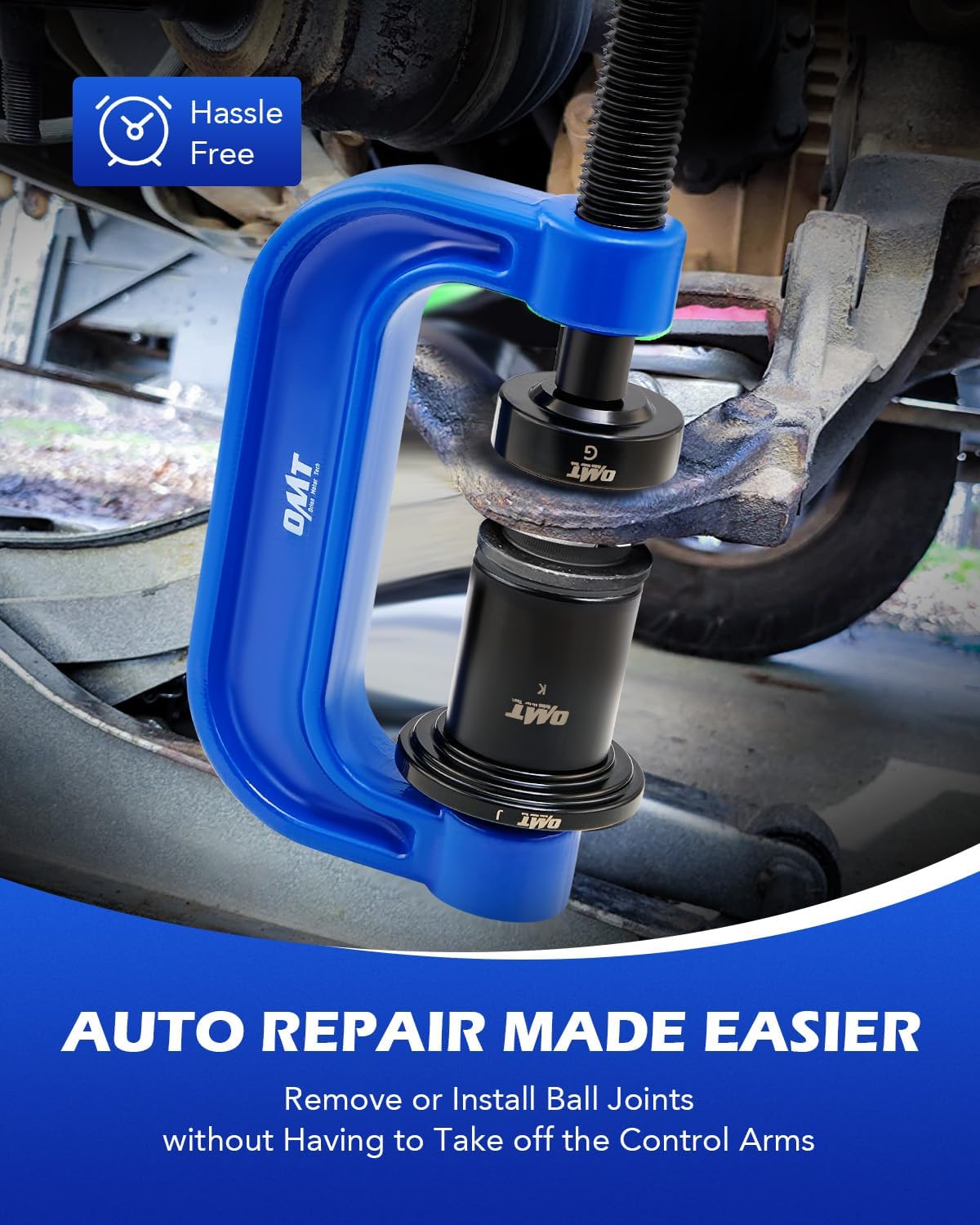

Figure 5.2: The C-frame press in action, making auto repair easier by allowing ball joint service without removing control arms.
Figure 5.3: A practical demonstration of ball joint removal using the press kit.
5.3 Official Product Video: 21PCS Ball Joint Removal Tool Kit
Video 5.1: This video provides a detailed walkthrough of the Orion Motor Tech 21-Piece Ball Joint Removal Tool Kit, demonstrating its components and proper usage for various automotive applications.
5.4 Official Product Video: Ball Joint Press Set
Video 5.2: A concise video showcasing the Orion Motor Tech Ball Joint Press Set, highlighting its features and ease of use for pressing ball joints.
5.5 Vehicle Compatibility
This kit is universally compatible with a wide range of vehicles, including most 2-wheel drive (2WD) and 4-wheel drive (4WD) pickups, vans, and sport utility vehicles. It is particularly effective for vehicles featuring Dana 28, 30, 35, 44, and 60 axles, and is suitable for GM, Chevy, Ford, and Dodge models.
Figure 5.4: The kit offers wide compatibility for upper and lower ball joints on most 2WD & 4WD pickups, vans, and SUVs.
Figure 5.5: Illustrates compatibility with major vehicle brands like GM, Ford, and Dodge.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Ball Joint Press Kit.
- Cleaning: After each use, wipe all components clean with a dry cloth to remove grease, dirt, and debris.
- Lubrication: Periodically apply a light coat of machine oil to the forcing screw threads to ensure smooth operation and prevent corrosion.
- Inspection: Regularly inspect the C-frame, forcing screw, and all adapters for signs of wear, cracks, or deformation. Replace any damaged components immediately.
- Storage: Store all components in the provided blow-molded case in a cool, dry place, away from direct sunlight and moisture.
7. Troubleshooting
If you encounter issues while using the Ball Joint Press Kit, consider the following:
- Difficulty in Pressing: Ensure the correct adapters and receiver tubes are used and properly aligned. Apply penetrating oil to stubborn components and allow time for it to work.
- Tool Slippage: Verify that all components are securely seated and aligned before applying pressure. The C-frame and adapters should be stable and not rocking.
- Damaged Threads on Forcing Screw: This can occur from excessive force or improper alignment. Ensure the screw is lubricated and that pressure is applied smoothly. If threads are damaged, the screw may need replacement.
- Component Damage: Using incorrect adapters or applying uneven force can damage ball joints or vehicle components. Always double-check fitment and alignment.
For persistent issues or if you suspect a tool defect, contact Orion Motor Tech customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Orion Motor Tech |
| Model Number | 0021BL |
| Manufacturer Part Number | BJS 002100 GWCA |
| Item Weight | 25.6 pounds |
| Product Dimensions | 23.62 x 4.72 x 19.69 inches |
| Material | Heavy-duty forged solid carbon steel with anti-rust black-oxide finish |
| Compatibility | Most 2WD & 4WD vehicles (GM, Chevy, Ford, Dodge), Dana 28, 30, 35, 44, 60 axles |
9. Warranty & Support
Orion Motor Tech is committed to providing outstanding quality and professional technical support. If you are not satisfied with this product or have any questions, please do not hesitate to contact our customer service team. We strive to ensure customer satisfaction and are ready to assist with any inquiries or concerns regarding your Ball Joint Press Kit.
For further assistance, please visit the official Orion Motor Tech store or contact our support channels.
