1. Product Overview
This manual provides essential information for the installation, operation, and maintenance of your UpStart Components Replacement Air Filter and Pre-Cleaner. This product is designed to replace John Deere 491588S Filter and 493537S Pre-Filter, ensuring optimal engine performance and longevity for compatible John Deere JS30 models.
Figure 1: UpStart Components Replacement Air Filter (blue frame) and Pre-Cleaner (green foam). This image displays both components included in the package, ready for installation.
2. Setup and Installation
Proper installation of the air filter and pre-cleaner is crucial for effective engine protection. Follow these steps carefully:
- Safety First: Ensure the engine is turned off and cool before beginning any maintenance. Disconnect the spark plug wire to prevent accidental starting.
- Locate Air Filter Housing: Identify the air filter housing on your John Deere JS30 equipment. It is typically a plastic or metal box secured with clips or screws.
- Remove Old Filter: Open the air filter housing. Carefully remove the old air filter and pre-cleaner. Note their orientation for correct installation of the new components.
- Clean Housing: Wipe down the inside of the air filter housing with a clean cloth to remove any dirt or debris. Ensure no foreign objects fall into the carburetor or engine intake.
- Install New Pre-Cleaner: Place the green foam pre-cleaner over the new air filter. Ensure it fits snugly and covers the entire filter surface.
- Install New Air Filter: Insert the new air filter (with pre-cleaner attached) into the housing. Make sure it seats properly and creates a tight seal.
- Secure Housing: Close the air filter housing and secure it with the clips or screws. Ensure it is tightly sealed to prevent unfiltered air from entering the engine.
- Reconnect Spark Plug: Reconnect the spark plug wire.

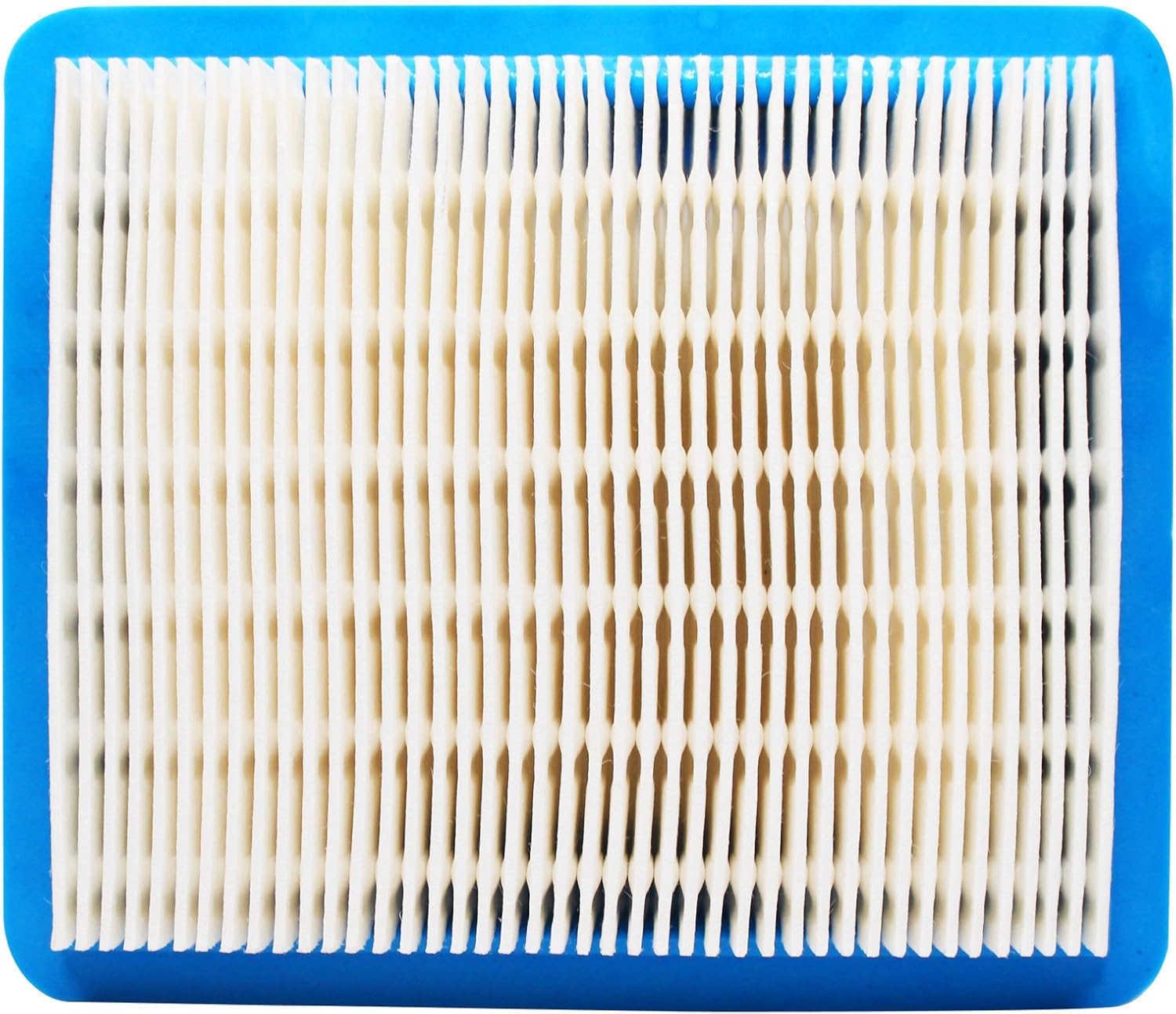

Figure 2: Top view of the UpStart Components Replacement Air Filter. This image shows the pleated filter material designed to capture dirt and debris, ensuring clean air supply to the engine.
Figure 3: UpStart Components Replacement Pre-Cleaner. This green foam pre-cleaner is designed to capture larger particles before they reach the main air filter, extending the filter's life.
3. Operating Principles
The air filter and pre-cleaner system works by filtering incoming air before it enters the engine's carburetor or fuel injection system. The pre-cleaner, typically a foam element, captures larger dust and debris particles. The main pleated paper filter then traps finer particles, preventing them from causing wear and damage to internal engine components. This process ensures that the engine receives clean, unrestricted airflow, which is vital for efficient combustion, optimal power output, and reduced emissions.
4. Maintenance
Regular maintenance of your air filter and pre-cleaner is essential for prolonging engine life and maintaining peak performance. A dirty filter can restrict airflow, leading to reduced power, increased fuel consumption, and potential engine damage.
- Inspection: Inspect the air filter and pre-cleaner regularly, especially after operating in dusty conditions. Look for visible dirt, debris, or damage to the filter media.
- Cleaning Pre-Cleaner: The foam pre-cleaner can often be cleaned. Wash it in warm, soapy water, rinse thoroughly, and allow it to air dry completely before reinstallation. Do not use gasoline or harsh solvents.
- Filter Replacement: The pleated paper air filter cannot be effectively cleaned and should be replaced when it appears dirty or clogged. UpStart Components recommends replacing your air filter and pre-cleaner every season, or more frequently depending on usage and operating conditions, to ensure best performance.
- Storage: If storing the equipment for an extended period, ensure the air filter is clean and dry to prevent mold or mildew growth.
5. Troubleshooting
If you experience issues with your equipment's performance, the air filter may be a contributing factor. Consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Engine Power / Stalling | Clogged or dirty air filter restricting airflow. | Inspect and replace the air filter and pre-cleaner. |
| Excessive Engine Smoke | Restricted airflow causing rich fuel mixture. | Replace the air filter and pre-cleaner. |
| Engine Difficult to Start | Severely clogged air filter. | Replace the air filter and pre-cleaner. |
| Increased Fuel Consumption | Engine working harder due to restricted airflow. | Replace the air filter and pre-cleaner. |
If these steps do not resolve the issue, consult your equipment's specific service manual or a qualified technician.
6. Specifications
Key specifications for the UpStart Components Replacement Air Filter & Pre-Cleaner:
- Product Type: Replacement Air Filter & Pre-Cleaner
- Compatibility: Replaces John Deere 491588S Filter & 493537S Pre-Filter
- Quantity: 1 Air Filter, 1 Pre-Filter
- Dimensions: Approximately 5 x 5 x 10.5 inches (Product dimensions)
- Model Number: LM-491588S-493537S-DL21
- UPC: 711841355067
- Material: High-quality filter media and foam
7. Warranty Information
This product is an UpStart Components brand replacement part. Any warranties for this product are offered solely by UpStart Components. This product is not affiliated with any OEM brands and is not covered under any warranties offered by the original manufacturers. For specific warranty terms and conditions, please refer to the official UpStart Components warranty policy or contact their customer support.
8. Support and Contact
For further assistance, technical support, or inquiries regarding your UpStart Components Replacement Air Filter & Pre-Cleaner, please contact UpStart Components directly. Refer to their official website or product packaging for the most current contact information.
