BURCAM 506221P 3/4 HP Noryl Shallow Well Jet Pump Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe installation, efficient operation, and proper maintenance of the BURCAM 506221P 3/4 HP Noryl Shallow Well Jet Pump. This pump is engineered for use in conjunction with a captive air pressure tank to deliver potable water from shallow wells, accommodating a maximum vertical suction lift of 25 feet. Adhering to these guidelines will ensure optimal performance and longevity of your pump.

Important Safety Information

Read all instructions thoroughly before proceeding with installation or operation. Failure to comply with these safety directives may lead to personal injury, property damage, or pump malfunction.

• All electrical connections must be performed by a qualified electrician and conform to local electrical codes and regulations.
• Always disconnect the power supply to the pump before attempting any maintenance, inspection, or service procedures.
• Never operate the pump without water (dry running), as this can cause severe damage to internal components.
• This pump is designed exclusively for pumping potable (drinking) water. Do not use it for other liquids.
• Protect the pump from freezing temperatures.

Product Overview

The BURCAM 506221P is a robust 3/4 HP shallow well jet pump, distinguished by its corrosion-resistant Noryl body. It features a dual voltage 115/230V, totally enclosed fan-cooled motor, equipped with automatic thermal and overload protection, and a full-time run capacitor. The pump includes a built-in ejector and comes with a factory-preset 30/50 PSI pressure switch and a 0-100 PSI pressure gauge.

Key Features:

• Corrosion-Resistant Noryl Body: Ensures clean, rust-free water delivery.
• Quiet Operation: Noryl construction contributes to reduced sound levels for smoother performance.
• Industrial Motor: 115/230 Volts fan-cooled motor with integrated thermal and overload protection.
• Easy Priming: The large Noryl body facilitates the priming process.
• Application: Ideal for shallow well applications with a maximum vertical suction lift of 25 feet or less.
• Connections: Features 1 1/4 inch suction and 1 inch discharge reinforced stainless steel threaded connections.
• Pumping Capacity: Capable of pumping up to 850 Gallons per Hour (GPH).

Setup and Installation

1. Unpacking: Carefully remove the pump from its packaging. Inspect the unit for any signs of shipping damage. Report any damage to the carrier immediately.
2. Location: Select a suitable installation location that is dry, well-ventilated, and protected from freezing temperatures, direct sunlight, and excessive moisture. Ensure sufficient space around the pump for future maintenance.
3. Mounting: Securely mount the pump to a stable, level, and solid surface using appropriate fasteners. This will minimize vibration and noise during operation.
4. Plumbing Connections:
   • Connect the 1 1/4 inch suction line to the pump's inlet port.
   • Connect the 1 inch discharge line to the pump's outlet port, leading to your pressure tank and water distribution system.
   • Use high-quality thread sealant (e.g., PTFE tape or pipe dope) on all threaded connections to ensure a watertight seal and prevent leaks.

   Note: Some users have reported that careful application of thread sealant is crucial for plastic fittings to prevent minor leaks.
5. Electrical Connections:
   • The pump motor is dual voltage (115V/230V). Verify the motor is correctly wired for your specific electrical supply voltage. If unsure, consult a qualified electrician.
   • Connect the pump to a dedicated, properly grounded electrical circuit equipped with appropriate overcurrent protection (circuit breaker or fuse) as per local codes.
6. Priming the Pump:
   • Locate and remove the priming plug, typically found on the top of the pump casing.
   • Slowly fill the pump casing completely with clean water until it overflows from the priming port.
   • Securely replace the priming plug.
   • Ensure the entire suction line is also filled with water and free of any air pockets. A foot valve at the end of the suction line in the well is recommended to maintain prime.

Operating Instructions

1. After completing the priming process, ensure all valves in both the suction and discharge lines are fully open.
2. Turn on the electrical power supply to the pump.
3. The pump will initiate operation and begin to build pressure within the system. The integrated pressure switch is factory preset to activate at 30 PSI and deactivate at 50 PSI.
4. Monitor the pressure gauge to confirm that the pump is building pressure correctly and operating within the expected range.
5. The pump will automatically shut off once the upper pressure limit (50 PSI) is reached and will restart when the system pressure drops to the lower limit (30 PSI), maintaining consistent water pressure.

Maintenance

Regular maintenance ensures the longevity and efficient operation of your BURCAM pump.

• Regular Inspection: Periodically inspect the pump and plumbing for any signs of leaks, unusual noises, excessive vibration, or corrosion. Address any issues promptly.
• Winterization: In regions prone to freezing temperatures, it is crucial to drain the pump and all exposed plumbing lines completely to prevent ice damage. Follow proper winterization procedures for your entire water system.
• Cleanliness: Keep the area around the pump clean and free of dust, debris, and obstructions to ensure proper motor ventilation and prevent overheating.
• Pressure Switch: Occasionally inspect the pressure switch contacts for cleanliness and ensure they are free from corrosion or debris that could impede proper operation.

Troubleshooting Common Issues

Pump runs but no water is delivered:

Check if the pump is properly primed. Ensure the suction line is fully submerged in water and free of air leaks. Verify that any foot valve in the well is functioning correctly and not clogged.

Pump cycles too frequently (short cycling):

This often indicates a leak in the plumbing system, a waterlogged pressure tank (meaning the air charge is lost), or a faulty pressure switch. Inspect all plumbing for leaks and check the air pressure in your pressure tank.

Low pressure or flow:

Check for clogged suction lines, a partially closed valve in the system, or a worn impeller. Ensure the well water level is adequate for the pump's suction capabilities.

Pump does not start:

Verify the electrical power supply to the pump. Check the circuit breaker or fuse. Ensure the pressure switch is not stuck in the open position. The motor may have tripped its internal thermal overload protection; allow it to cool down before attempting to restart.

Excessive noise or vibration:

Check for loose mounting bolts. Inspect the impeller for foreign objects. Worn motor bearings can also cause excessive noise; if suspected, professional service may be required.

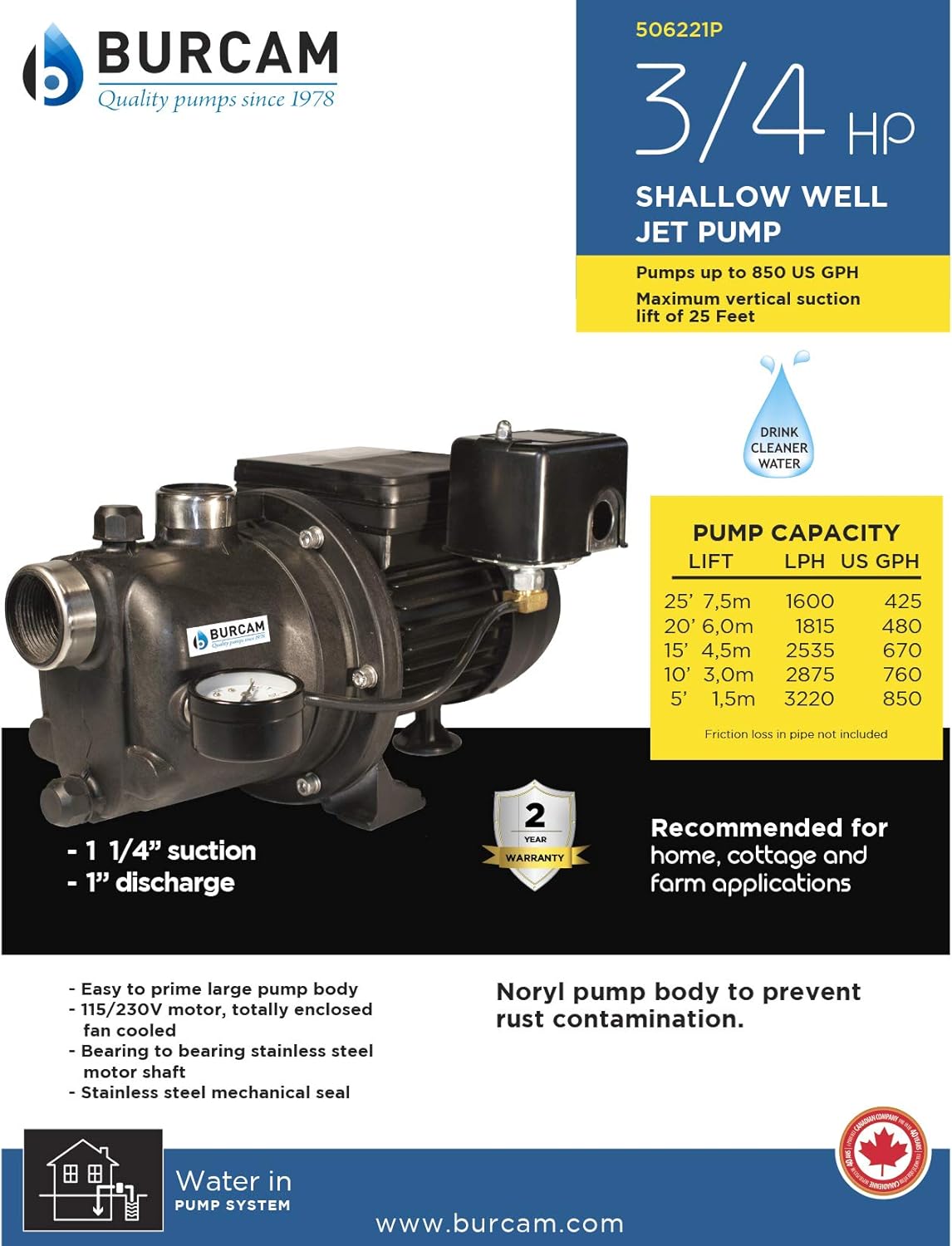

Technical Specifications

Warranty Information

The BURCAM 506221P pump is backed by a 2-year limited warranty from the original date of purchase. This warranty covers defects in materials and workmanship under normal use and service conditions. To make a warranty claim, you must retain your original proof of purchase. For complete details regarding warranty terms, conditions, and exclusions, please refer to the warranty documentation included with your product or contact BURCAM customer support directly.

Customer Support

For technical assistance, inquiries about replacement parts, or to process a warranty claim, please contact BURCAM customer support.

Manufacturer: BURCAM

Website: www.burcam.com

When contacting support, please have your product model number (506221P) and the date of purchase readily available to expedite service.
