Introduction
The MaximalPower 3.5mm Receiver/Listen Only Surveillance Headset Earpiece is designed for clear and discrete audio reception in various professional environments. This kit is compatible with a wide range of two-way radios, transceivers, and radio speaker microphones that feature a standard 3.5mm earphone jack. Its rugged design and high-quality components ensure reliable performance for surveillance, patrol, police, and hospitality jobs.
Safety Information
- Avoid prolonged listening at high volume levels to prevent hearing damage.
- Keep the earpiece clean and free from debris to maintain optimal audio quality and hygiene.
- Do not attempt to disassemble or modify the earpiece, as this may void the warranty and cause damage.
- Ensure the earpiece is securely connected to your device to prevent accidental disconnection during use.
- Store the earpiece in a cool, dry place away from direct sunlight and extreme temperatures.
Package Contents
Each package includes:
- Ten (10) 3.5mm Receiver/Listen Only Surveillance Headset Earpieces
Image: A view of the ten 3.5mm surveillance earpieces included in the package.
Product Overview
The MaximalPower surveillance earpiece features a clear coil tube earbud for discrete listening, a durable polyurethane jacketed cable, and a reinforced earphone clip for secure attachment.

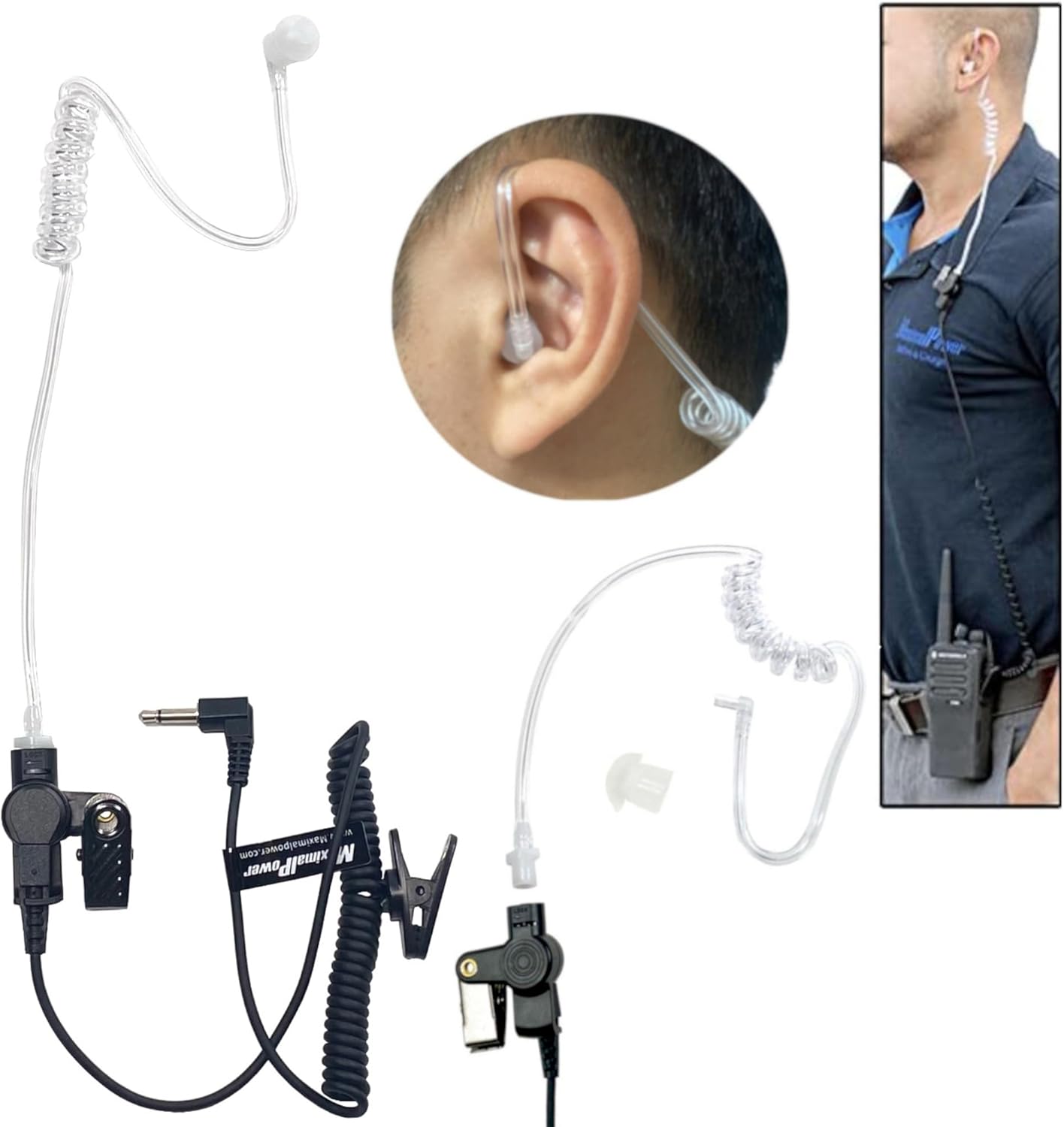

Image: Demonstrates how the clear coil tube earbud fits discreetly into the ear and how the cable can be routed for surveillance use.
Image: Illustrates the rotatable clip, which allows for easy and secure attachment to collars or other clothing, ensuring cable retention and reducing strain.
Image: Details the easy disconnect and lock function of the acoustic tube, facilitating maintenance and replacement.
Setup
Connecting the Earbud
To set up your MaximalPower surveillance earpiece, simply plug the 3.5mm jack into the corresponding audio output port on your two-way radio, radio speaker microphone, remote microphone, MP3 player, or any other audio device.
Image: Shows the earpiece connected to a two-way radio speaker mic, illustrating the proper connection point.
Video: An overview of the 10-Pack 3.5mm Plug Tube Earbud Audio Kit for Two-Way Radios, highlighting its features and applications.
Video: Demonstrates the 3.5mm Receiver/Listen Only Surveillance Headset for 2-Way Radios, showing its design and ease of use.
Compatibility
This earpiece is designed to be 100% compatible with all original equipment manufacturer (OEM) parts that utilize a standard 3.5mm earphone jack. This includes devices from brands such as MOTOROLA, KENWOOD, and ICOM. Please verify your device's jack size before use.
Image: Provides a visual guide to the standard 3.5mm plug and acoustic tube holder, differentiating it from other versions.
Operating Instructions
- Once connected, ensure the earpiece is comfortably and securely placed in your ear.
- Adjust the volume on your connected device to a comfortable listening level.
- The clear coil tube design allows for discrete listening, making it ideal for environments where privacy is required.
- The reinforced earphone clip can be attached to your clothing to manage cable slack and prevent accidental tugs.
Maintenance
- Cleaning the Earbud: Regularly wipe the earbud and the clear acoustic tube with a soft, damp cloth. For thorough cleaning, disconnect the acoustic tube by twisting and turning, then use a can of compressed air to blow out any debris or water from the tube.
- Acoustic Tube Replacement: It is recommended to replace the acoustic tube every 3-4 months, or more frequently if used in dusty or harsh environments, to maintain optimal hygiene and sound clarity.
- Cable Care: Avoid sharp bends or excessive pulling on the cable to prevent internal wire damage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No audio or low volume | Incorrect connection; Device volume too low; Debris in acoustic tube; Damaged cable/earbud. | Ensure 3.5mm jack is fully inserted. Increase device volume. Clean acoustic tube. Inspect cable for damage; replace if necessary. |
| Distorted audio | Loose connection; Device audio settings; Interference. | Reconnect the earpiece. Check device audio settings. Move away from sources of electromagnetic interference. |
| Earpiece falls out easily | Improper fit; Acoustic tube not securely attached. | Adjust the earpiece for a snug fit. Ensure the acoustic tube is locked into place. |
Specifications
| Feature | Detail |
|---|---|
| Output Level | 72dB |
| Rated Input Power | 0.1W |
| Maximum Input Power | 0.2W |
| Output Impedance | 32 ohms |
| Headphones Jack | 3.5 mm Jack |
| Connectivity Technology | Wired |
| Material | Polyurethane (PU) |
| Earpiece Shape | Coil tube |
| Product Dimensions | 0.2 x 10 x 0.5 inches |
| Item Weight | 11.3 ounces (for the 10-pack) |
| Model Number | RHF 617-1N x10 |
Warranty and Support
MaximalPower products are manufactured to high-quality standards. For specific warranty information regarding your 3.5mm Surveillance Plug Coil Tube Earbud Audio Kit, please refer to the documentation included with your purchase or visit the official MaximalPower website. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact MaximalPower customer service through their official channels.
