1. Introduction
This manual provides essential information for the proper handling, installation, operation, and maintenance of the GOWE 4BT/4BTA engine cylinder head. This component is specifically designed for Cummins Series B 3.9D engines. Adherence to these instructions is crucial for ensuring optimal performance and longevity of the cylinder head and the engine system.
The GOWE 4BT/4BTA engine cylinder head is a critical component responsible for sealing the combustion chamber and housing the valves, camshaft, and other related parts. Its precise engineering ensures efficient engine operation.

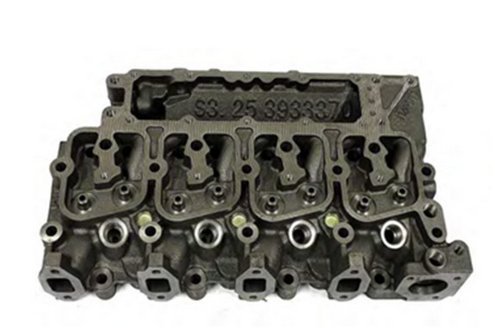

This image displays the GOWE 4BT/4BTA engine cylinder head, highlighting its primary components and overall structure. It is designed for Cummins Series B 3.9D engines.
2. Setup and Installation
Installation of an engine cylinder head requires specialized knowledge and tools. It is strongly recommended that installation be performed by a qualified and certified mechanic or engine specialist.
2.1 Pre-Installation Checks
- Compatibility: Verify that the cylinder head part numbers (3962005, 3932011, 3903920) match the specifications for your Cummins Series B 3.9D engine.
- Inspection: Carefully inspect the cylinder head for any signs of shipping damage. Do not install if damage is observed.
- Cleanliness: Ensure all mating surfaces on both the cylinder head and the engine block are thoroughly clean and free of debris, old gasket material, or contaminants.
2.2 Installation Procedure (General Guidelines)
- Refer to the specific Cummins engine service manual for detailed, step-by-step installation instructions, including torque specifications and sequences for cylinder head bolts.
- Install a new cylinder head gasket according to the manufacturer's recommendations.
- Carefully position the cylinder head onto the engine block, ensuring proper alignment.
- Install cylinder head bolts and tighten them in the specified sequence and to the correct torque values, often requiring multiple stages.
- Reinstall all associated engine components, including intake and exhaust manifolds, fuel system components, cooling system hoses, and electrical connections.
- Refill engine fluids (coolant, oil) to appropriate levels.
Caution: Incorrect installation can lead to severe engine damage, coolant leaks, oil leaks, or performance issues. Always consult the official engine service manual.
3. Operating Considerations
Once the GOWE 4BT/4BTA cylinder head is installed, its operation is integral to the overall function of the Cummins Series B 3.9D engine. Proper engine operation and monitoring are essential.
- Initial Start-up: After installation, perform an initial engine start-up and allow the engine to reach operating temperature. Monitor for any leaks (coolant, oil, exhaust) and unusual noises.
- Cooling System: Ensure the engine's cooling system is functioning correctly to prevent overheating, which can severely damage the cylinder head. Regularly check coolant levels and condition.
- Lubrication: Maintain proper engine oil levels and use the recommended oil type to ensure adequate lubrication for all moving parts within the cylinder head, such as valves and camshaft.
- Performance Monitoring: Pay attention to engine performance, fuel efficiency, and exhaust emissions. Any significant changes may indicate an issue requiring inspection.
4. Maintenance
Regular maintenance of the engine is crucial for the longevity and reliable performance of the cylinder head. While the cylinder head itself does not require specific routine maintenance apart from general engine care, certain practices directly impact its condition.
- Coolant System Maintenance: Periodically flush and refill the cooling system with the manufacturer-recommended coolant. Inspect hoses and connections for leaks or deterioration.
- Oil Changes: Adhere to the engine manufacturer's recommended oil change intervals and use the specified engine oil. Clean oil is vital for valve train components.
- Valve Adjustment: If your engine model requires periodic valve lash adjustment, ensure this is performed by a qualified technician according to the engine service manual.
- Torque Checks: While not typically a routine procedure, if any work is done near the cylinder head, ensure all fasteners are torqued to specification.
- Inspection: During other engine maintenance, visually inspect the cylinder head for any signs of external leaks, cracks, or unusual wear.
5. Troubleshooting
If you experience issues with your engine after cylinder head installation or during its service life, consider the following common symptoms. Always consult a qualified mechanic for diagnosis and repair.
| Symptom | Possible Cause | Action |
|---|---|---|
| Engine Overheating | Low coolant, faulty thermostat, clogged radiator, head gasket leak. | Check coolant level, inspect cooling system, check for head gasket failure. |
| Coolant Loss / External Leaks | Improperly torqued head bolts, damaged head gasket, cracked cylinder head. | Inspect for visible leaks, pressure test cooling system, re-torque head bolts if applicable. |
| Oil in Coolant / Coolant in Oil | Blown head gasket, cracked cylinder head. | Requires immediate professional diagnosis and repair. |
| Loss of Engine Power / Misfires | Valve issues, compression loss due to head gasket, cracked cylinder head. | Perform compression test, inspect valve train. |
| Excessive Exhaust Smoke | Valve guide seals, worn valve guides, head gasket issues. | Identify smoke color (blue for oil, white for coolant) and diagnose accordingly. |
Warning: Attempting complex engine repairs without proper training and tools can lead to further damage or personal injury.
6. Specifications
The following specifications apply to the GOWE 4BT/4BTA Engine Cylinder Head:
- Item: Cylinder head
- Model Number: 4BT/4BTA
- Part Numbers: 3962005, 3932011, 3903920
- Application: For Cummins Series B 3.9D engines
- Certification: ISO9000
- Manufacturer: Gowegroup
- Manufacturer Part Number: GWE-1034234
- Item Weight: 1 kg
- Voltage: 230 Volts (Note: This specification is provided by the manufacturer; its direct relevance to a mechanical cylinder head may vary depending on the overall engine system.)
7. Warranty and Support
For information regarding the warranty period and terms for your GOWE 4BT/4BTA engine cylinder head, please refer to the documentation provided at the time of purchase or contact your seller directly. Warranty coverage typically addresses manufacturing defects.
Should you require technical assistance, support, or have questions not covered in this manual, please contact the GOWE manufacturer or your authorized distributor. Provide your product model and part numbers for efficient service.
