Sojag Cambridge 10 ft. x 12 ft. Gazebo Instruction Manual

Introduction

This manual provides essential instructions for the assembly, operation, maintenance, and safety of your Sojag Cambridge 10 ft. x 12 ft. Gazebo. The Cambridge sun shelter is designed to provide shade and an outdoor entertaining area, featuring a premium powder-coated dark grey aluminum frame and durable aluminum composite roof panels. It is built to withstand various weather conditions and offers UV protection and rust resistance.

Please read this manual thoroughly before assembly and use to ensure proper installation and longevity of your gazebo.

Safety Information

• Snow Accumulation: It is critical to remove any accumulated snow from the gazebo roof to prevent potential collapse and damage to the structure.
• Anchoring: Ensure the gazebo is properly anchored to the ground to maintain stability against wind and other outdoor elements.
• Assembly: Assembly requires at least two people. Follow all steps carefully.
• Tools: No special tools are required for assembly; all necessary hardware is included.

Product Overview

The Sojag Cambridge Gazebo is an all-season outdoor structure designed for durability and comfort. Key features include:

• Frame: Premium dark grey Interpon AkzoNobel powder-coated aluminum frame, resistant to corrosion, rust, and color fading.
• Roof: Dark grey durable aluminum composite roof panels, providing protection from sun and rain, UV-treated and rust-resistant.
• Netting: PVC coated mosquito netting with a two-track system for easy hanging and attachment.
• Dimensions: Approximately 142.32 inches (L) x 116.93 inches (W) x 107.48 inches (H).

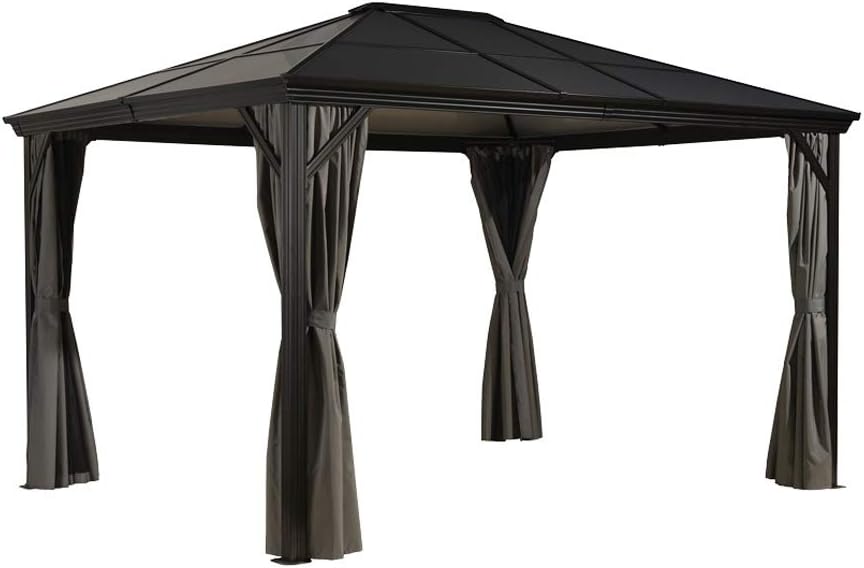

Figure 1: The Sojag Cambridge Gazebo, showcasing its dark grey frame and roof, with mosquito netting tied back.

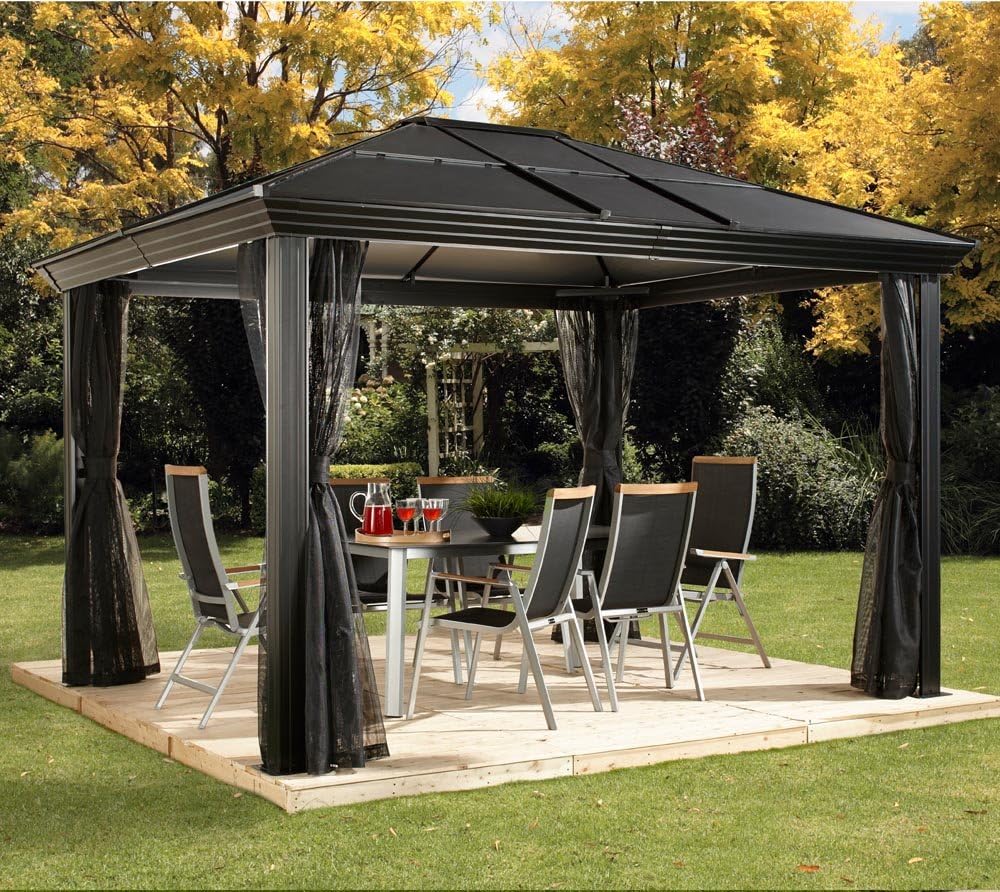

Figure 2: A lifestyle view of the gazebo, demonstrating its use as an outdoor entertaining area with patio furniture.

Setup and Assembly

Assembly of the Sojag Cambridge Gazebo typically requires two people and takes approximately 2 hours. All necessary hardware is included in the package, and no specialized tools are needed. Follow the detailed instructions provided in the separate assembly guide (not included in this manual) for step-by-step installation.

Key Assembly Considerations:

• Site Preparation: Choose a level and stable surface for installation. Ensure adequate clearance around the gazebo.
• Anchoring: Securely anchor the gazebo to the ground immediately after assembly to prevent movement due to wind. Refer to the assembly guide for anchoring methods.
• Component Identification: Before starting, identify all parts and hardware using the provided parts list in the assembly guide.

Figure 3: Detail of a gazebo base plate, illustrating how the structure should be securely anchored.

Operating Instructions

Mosquito Netting:

The gazebo is equipped with PVC coated mosquito netting to protect against insects. The netting utilizes a two-track system, allowing for smooth operation.

• Deployment: Gently pull the netting along the tracks to enclose the gazebo space.
• Securing: Use the integrated zippers or ties to secure the netting panels together and to the gazebo posts.
• Storage: When not in use, the netting can be tied back to the gazebo posts using the attached straps for an open-air feel.

Figure 4: A detailed view of the two-track system, designed for easy installation and movement of mosquito netting and optional privacy curtains.

Optional Privacy Curtains:

Privacy curtains (sold separately) can be installed on the same two-track system alongside the mosquito netting for added privacy and sun protection.

Maintenance

General Cleaning:

• Frame: Clean the aluminum frame with a mild soap solution and water. Rinse thoroughly and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners.
• Roof Panels: The aluminum composite roof panels can be cleaned with a soft brush or cloth and a mild soap solution. Rinse well.
• Netting: Hand wash the mosquito netting with mild soap and water. Allow to air dry completely before folding or storing.

Winterization:

• Snow Removal: Regularly remove any snow accumulation from the gazebo roof to prevent structural damage or collapse.
• Winter Covers: Sojag winter covers are available and sold separately. Using a winter cover can help protect your gazebo during harsh winter conditions.

Figure 5: An interior perspective of the gazebo's roof, highlighting the durable aluminum composite panels designed for weather protection.

Troubleshooting

• Stability Issues: Ensure all frame connections are tight and the gazebo is properly anchored to the ground. Re-check anchor points after strong winds.
• Water Leaks: Inspect roof panels for any gaps or damage. Ensure all roof panel seals are properly seated.
• Netting Snags: Check the two-track system for any obstructions or debris that might hinder the smooth movement of the mosquito netting.
• Fading/Corrosion: While the frame and roof are treated for UV and rust resistance, prolonged exposure to extreme conditions can still cause wear. Regular cleaning and proper winterization can extend product life.

Specifications

Figure 6: Detailed dimensional drawing of the gazebo, including height, width, and depth measurements.

Warranty and Support

The Sojag Cambridge Gazebo includes a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use and service.

For warranty claims, replacement parts, or technical assistance, please contact Sojag customer support. Keep your proof of purchase for warranty validation.

Contact Information: Refer to the contact details provided in your product packaging or visit the official Sojag website for support.
