ITALIKA ATV180 Quad Bike User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and care of your new ITALIKA ATV180 Quad Bike. Please read this manual thoroughly before operating the vehicle to ensure proper understanding of its features and to maximize your riding experience while ensuring safety.

2. Safety Information

Operating an All-Terrain Vehicle (ATV) can be hazardous. To prevent serious injury or death, always follow these safety guidelines:

• Wear Appropriate Safety Gear: Always wear an approved helmet, eye protection, gloves, long pants, a long-sleeved shirt, and sturdy boots.
• No Passengers: This ATV is designed for a single rider only. Do not carry passengers.
• Age and Training: The ATV180 is intended for experienced riders. Ensure you have proper training and are of an appropriate age to operate this vehicle safely.
• Avoid Paved Surfaces: Do not operate the ATV on paved roads, public streets, or highways. It is designed for off-road use only.
• Inspect Before Each Ride: Always perform a pre-ride inspection, checking tires, brakes, controls, lights, and fluid levels.
• Never Operate Under Influence: Do not operate the ATV under the influence of alcohol or drugs.
• Respect Terrain: Ride at a safe speed appropriate for the terrain, visibility, and your experience. Be aware of obstacles and changes in surface.
• Hot Surfaces: The engine and exhaust system become very hot during operation. Avoid contact with these parts to prevent burns.

3. Product Overview

The ITALIKA ATV180 is a robust quad bike designed for off-road adventures. It features a powerful engine, automatic transmission with reverse, and durable construction.

Figure 3.1: Front three-quarter view of the ITALIKA ATV180 Quad Bike, showcasing its green and black color scheme and rugged design.

Figure 3.2: Side view of the ATV180, highlighting its overall profile and tire dimensions.

Figure 3.3: Key components of the ATV180. (A) Headlights, (B) Front Bumper, (C) Fuel Valve.

Figure 3.4: Close-up view of the ATV180 model decal and the engine area.

Figure 3.5: Detailed view of the robust rear cargo rack, designed for carrying equipment.

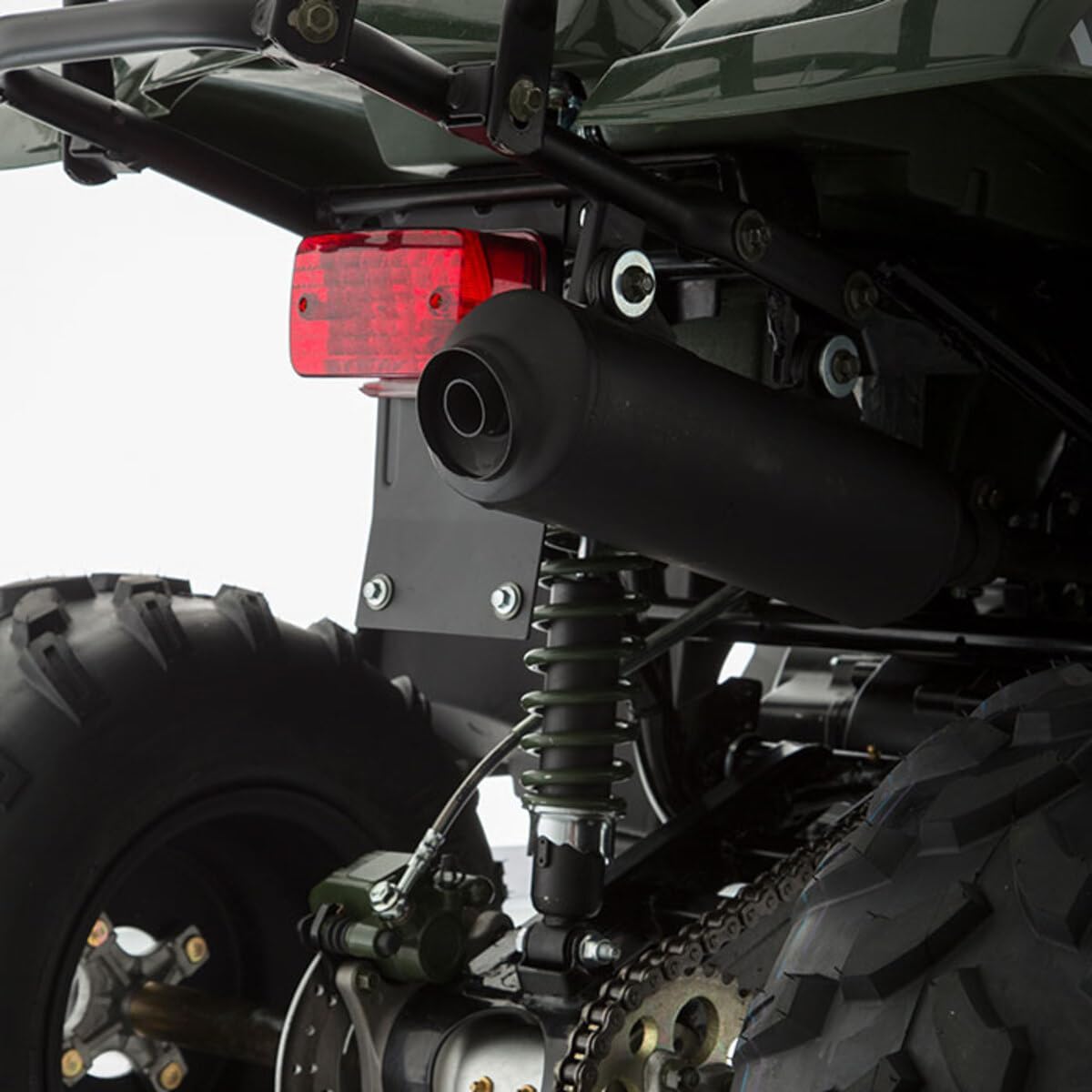

Figure 3.6: View of the exhaust system and the rear disc brake mechanism.

Figure 3.7: Close-up of the front cargo rack and handlebar controls.

4. Setup

Before your first ride, ensure the following checks are completed:

1. Fuel: Fill the fuel tank with the recommended type of gasoline. The fuel capacity is 8 liters.
2. Engine Oil: Check the engine oil level and add if necessary, according to the manufacturer's specifications.
3. Tire Pressure: Verify that all tires are inflated to the correct pressure. Front tire: 21 x 7 - R10, Rear tire: 20 x 10 - R10.
4. Brakes: Test both front (drum) and rear (disc) brakes to ensure they are functioning correctly.
5. Controls: Confirm that the throttle, steering, and all other controls operate smoothly and freely.
6. Lights: Check the operation of headlights, taillights, and brake lights.

5. Operating Instructions

Follow these steps for safe operation of your ATV180:

5.1 Starting the Engine

1. Ensure the ATV is on a level surface and the parking brake is engaged.
2. Turn the fuel valve to the 'ON' position (refer to Figure 3.3, component C).
3. Insert the key into the ignition and turn it to the 'ON' position.
4. If the engine is cold, apply the choke.
5. Press the electric starter button. Once the engine starts, release the button.
6. Allow the engine to warm up for a few moments before riding. If the choke was used, gradually disengage it as the engine warms.

5.2 Transmission and Riding

The ATV180 features an automatic transmission with reverse.

• To move forward, select the 'Drive' position.
• To engage reverse, select the 'Reverse' position. Always ensure the ATV is completely stopped before shifting into reverse.
• Apply throttle gradually to accelerate.
• Use both front and rear brakes simultaneously for effective stopping.

6. Maintenance

Regular maintenance is crucial for the longevity and performance of your ATV180.

• Oil Changes: Refer to the service schedule for recommended oil change intervals. Use only specified engine oil.
• Air Filter: Clean or replace the air filter regularly, especially when riding in dusty conditions.
• Spark Plug: Inspect and clean the spark plug periodically. Replace if worn.
• Brake Inspection: Regularly check brake fluid levels and inspect brake pads for wear. Adjust or replace as needed.
• Tire Care: Monitor tire pressure and inspect for cuts, punctures, or excessive wear.
• Chain Lubrication: Lubricate the drive chain regularly to ensure smooth operation and prevent wear.
• Cleaning: After each ride, clean the ATV to remove dirt and debris. Avoid high-pressure washing directly on electrical components.

7. Troubleshooting

This section provides solutions for common issues you might encounter.

For issues not listed or if solutions do not resolve the problem, contact an authorized ITALIKA service center.

8. Specifications

9. Warranty and Support

Your ITALIKA ATV180 Quad Bike comes with a warranty covering manufacturing defects for 2 years or 20,000 kilometers, whichever comes first. Please retain your proof of purchase for warranty claims.

For technical support, service, or warranty inquiries, please contact your authorized ITALIKA dealer or visit the official ITALIKA website for contact information. Ensure all maintenance is performed according to the schedule to keep your warranty valid.
