Introduction
This manual provides instructions for the proper use and maintenance of your HONEYSEW M-Size Bobbins. These bobbins are designed for use with various industrial sewing machines and are supplied in a 20-piece pack. Adhering to these guidelines will ensure optimal performance and longevity of the bobbins.

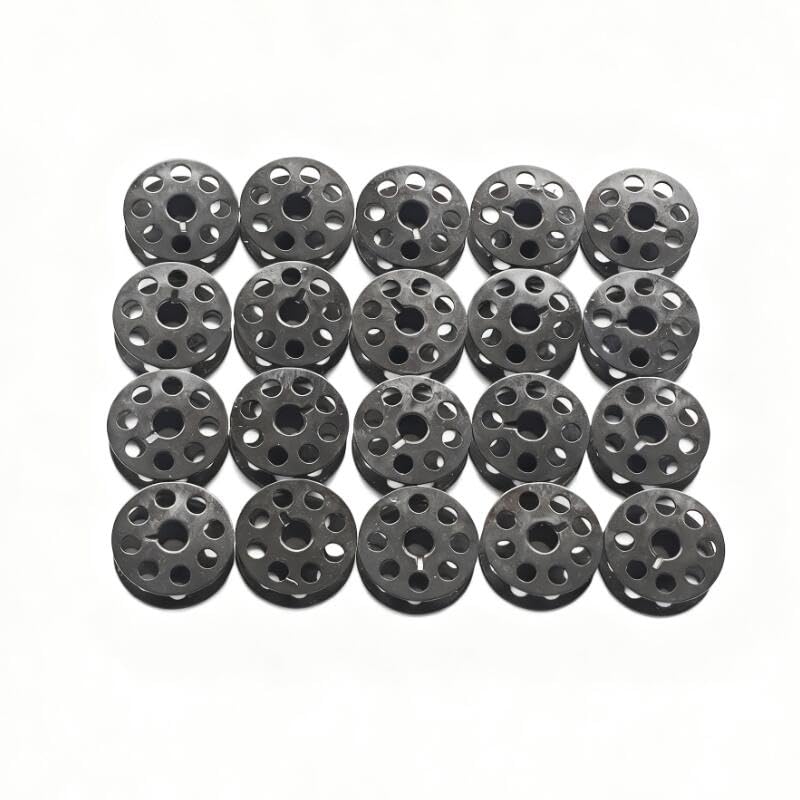

Image: A pack of 20 HONEYSEW M-Size bobbins.
Setup
Before first use, it is important to prepare the bobbins to ensure clean operation and prevent contamination of your sewing projects.
- Initial Cleaning: The bobbins may arrive with a protective coating of oil or black oxide residue from the manufacturing process. It is recommended to thoroughly clean each bobbin before winding thread onto it.
- Cleaning Procedure:
- Wash bobbins individually or in small batches using a mild detergent (e.g., dish soap) and warm water.
- Scrub gently to remove any visible oil or residue. Pay attention to the edges and inner surfaces.
- Rinse thoroughly under clean running water to remove all soap residue.
- Dry each bobbin completely with a clean, lint-free cloth. Ensure no moisture remains to prevent rust.
- Inspect bobbins for any remaining residue. Repeat cleaning if necessary.
- Winding Thread: Once clean and dry, wind your desired thread onto the bobbin according to your industrial sewing machine's instructions. Ensure even tension during winding.
- Bobbin Case Compatibility: These M-Size bobbins are designed to fit M-size bobbin cases, such as part numbers 18045 and B84NBL. Verify your machine's bobbin case type for proper fit.
Operating
Using the HONEYSEW M-Size bobbins involves standard procedures for industrial sewing machines.
- Insert Bobbin into Case: Place the wound bobbin into the bobbin case. Ensure the thread unwinds in the correct direction as specified by your sewing machine manual.
- Install Bobbin Case: Insert the bobbin case, with the bobbin inside, into the bobbin housing of your industrial sewing machine. Confirm it is securely seated and latched.
- Thread Machine: Follow your sewing machine's instructions for threading the upper thread and bringing the bobbin thread up through the needle plate.
- Adjust Tension: Perform test stitches on scrap fabric to adjust upper and bobbin thread tension for balanced stitches.
Maintenance
Proper maintenance extends the life of your bobbins and ensures consistent sewing performance.
- Regular Cleaning: Periodically clean bobbins, especially if switching thread types or colors, to prevent lint and residue buildup.
- Storage: Store clean, dry bobbins in a dedicated bobbin box or container to protect them from dust, dirt, and damage. Avoid storing them loosely where they can get scratched or bent.
- Inspection: Before each use, inspect bobbins for any burrs, nicks, or deformities that could snag thread or affect stitch quality. Discard damaged bobbins.
Troubleshooting
If you encounter issues while using your HONEYSEW M-Size bobbins, consider the following:
- Uneven Stitching or Thread Breakage:
- Ensure the bobbin is wound evenly and not too tightly or loosely.
- Check for any burrs or rough spots on the bobbin that might be snagging the thread.
- Verify that the bobbin is correctly inserted into the bobbin case and that the bobbin case is properly installed in the machine.
- Adjust bobbin tension if necessary, referring to your sewing machine's manual.
- Bobbins Feel Oily or Leave Residue:
- This indicates insufficient initial cleaning. Re-clean bobbins thoroughly as described in the "Setup" section.
- Ensure bobbins are completely dry before use.
- Bobbin Does Not Fit:
- Confirm your sewing machine uses M-Size bobbins. These bobbins are specifically designed for M-size bobbin cases (e.g., 18045, B84NBL).
- Refer to your sewing machine's manual for compatible bobbin types.
Specifications
| Feature | Detail |
|---|---|
| Brand | HONEYSEW |
| Model Number | #18034 (also SG_B01M06EUGM_US) |
| Bobbin Size | M-Size |
| Quantity | 20 Pieces |
| Product Dimensions | 0.9 x 0.8 x 0.2 inches (each bobbin) |
| Item Weight | 3.87 ounces (total for 20 bobbins) |
| Color | Black |
| Compatible Bobbin Cases | 18045, B84NBL |
Machine Compatibility
These M-Size bobbins are compatible with virtually all industrial sewing machines that use the large "M" Style Bobbin. This includes, but is not limited to, the following models:
- ARTISAN: 611-AB, 618, 797AB, 5550-BIG, ZJ8500-H
- BROTHER: B1 BOX MACHINE, B745, B746, B747, B791, B792, B797, B798
- CONSEW: 120, 145R, 146RB, 175RB, 199RB, 205RB, 206RB
- ELTAC: 1250, 1600, 1800
- FEIYUE: FY5318
- JUKI: DDL-201, DDL-201S, DDL-201H, DDL-560, DNU-241, DNU-1541, LZH-1290
- MEISTERGRAM: M600XL, M700XL, M800XL
- MERCURY: M-280L, M-280LS
- MITSUBISHI: CU-865-22, DB-130E22, DB-189-22, DB-199-22, DX-370-20, DX-870, DY-330, DY-337, DY-339, DY-340, DY-349, DY-350, DY-359-22, LT2-180BIT, PB-330, PLK-1210, PLK-1410, PLK-1710, PLK-2520, PV-1000, YU-360-22
- NAKAJIMA: 175-1, 175-2, 178L, 178L-2, 178L-3, 180L, 280L, 280LB, 280LYB, 321L, 341L, 680L, DSN-80-L, DSN-178L-2
- NEELS: NS-0302
- NOLTING: M STYLE
- REX: 11-155
- SAILRITE: 111
- SINGER: 121C, 121D, 369W
- SEIKO: STH-3BL, STH-7BL, STH-8BL, LAH-1LC/N
- TACONY: C206RB, T155RB, T1206
- TACSEW: T111-155
- TAJIMA: TM, TMB, TME, TMI, TMLE-100, TMW
- YAMATA: FY5318
These bobbins are also sold under various other part numbers, including: DO-DBM(1)N, 117061-001, R1143, 18034, B9117-201-000, MF25B0123, 201143000.
Warranty
No specific warranty information is provided for this product in the available documentation. For details regarding returns or product issues, please refer to the retailer's return policy or contact HONEYSEW customer service.
Support
For further assistance or inquiries about HONEYSEW products, please visit the official HONEYSEW store or contact their customer support channels.
