CURRENT USA Orbit Marine IC LED Aquarium Light 72-Inch User Manual

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your CURRENT USA Orbit Marine IC LED Aquarium Light (72-inch model). This advanced lighting system is designed to provide brilliant color and brightness for your saltwater reef aquarium, offering dynamic environmental effects controlled via the integrated LOOP system.

What's Included

Verify that all components are present before beginning installation:

  • Orbit IC LED Light (IP65 water resistant) with sliding docking mounts
  • LOOP Light & Wave Pump Controller with mounting bracket
  • LOOP Light HUB with mounting bracket (controls two lights)
  • Wireless IR Remote Control
  • Remote IR Sensor
  • 12VDC UL Approved Power Supply
  • Instruction Manual (this document)
CURRENT USA Orbit Marine IC LED light fixture, LOOP controller, and IR remote control
Image: The Orbit Marine IC LED light fixture, the LOOP controller, and the wireless IR remote control, showcasing the main components of the system.

Setup and Installation

Proper installation ensures optimal performance and longevity of your Orbit Marine IC LED light. Follow these steps carefully.

Physical Installation

  1. Mount the Light Fixture: Use the sliding docking mounts to position the 72-inch LED light fixture securely over your aquarium. Ensure the fixture is centered and stable. The extendable brackets allow for flexible placement.
  2. Install the LOOP Controller: Mount the LOOP Light & Wave Pump Controller in a dry, accessible location near your aquarium. Use the provided mounting bracket.
  3. Install the LOOP Light HUB: Mount the LOOP Light HUB using its bracket. This HUB is essential for connecting the LED light to the controller.
  4. Connect Components:
    • Connect the Orbit IC LED Light to the LOOP Light HUB.
    • Connect the LOOP Light HUB to the LOOP Controller.
    • Connect the Remote IR Sensor to the LOOP Controller. Position the sensor where it has a clear line of sight to where you will use the IR remote.
    • Connect the 12VDC UL Approved Power Supply to the LOOP Controller and then plug it into a suitable power outlet.
LOOP Light HUB with multiple ports for connecting lights and accessories
Image: The LOOP Light HUB, showing its various connection ports for integrating multiple lights and accessories into the system.

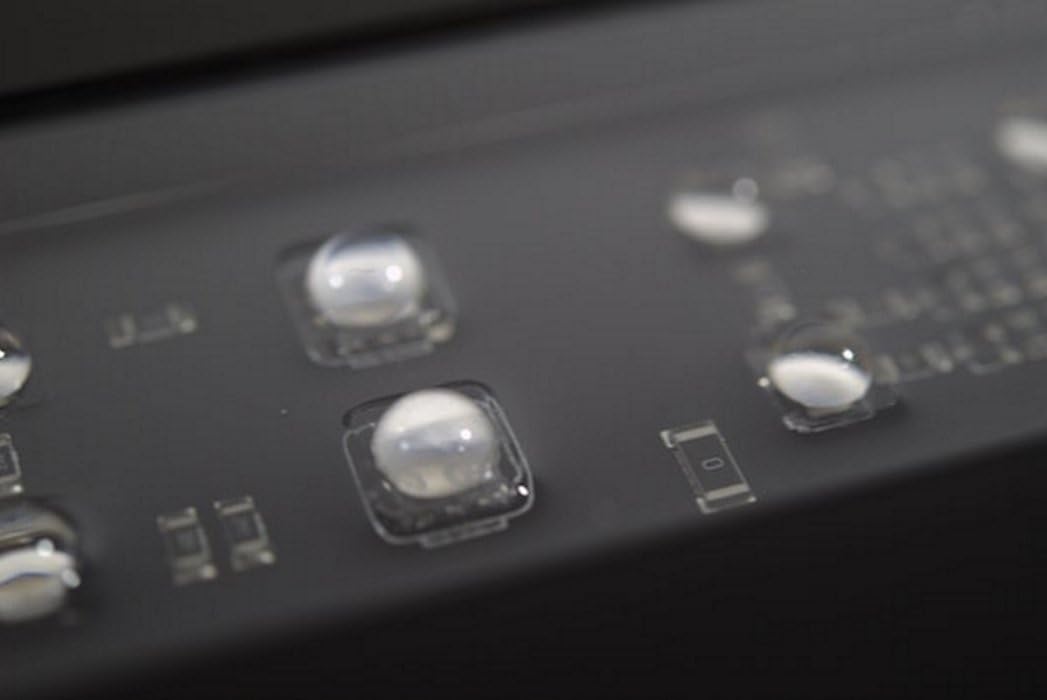

Close-up of the LED optical lenses on the Orbit Marine IC LED light
Image: A close-up view of the 90-degree spherical optical lenses on the Orbit Marine IC LED light, designed to direct light efficiently for coral growth and fluorescence.

Operating Instructions

The Orbit Marine IC LED system is controlled via the LOOP controller and the wireless IR remote. The LOOP system allows for advanced programming of lighting cycles and integration with eFlux wave pumps.

LOOP Controller Overview

The LOOP controller is the central hub for managing your lighting and wave pump accessories. Its display shows current time, light intensity, and wave pump settings.

Front view of the LOOP controller display showing time and percentages
Image: The LOOP controller's digital display, indicating the current time and percentage settings for connected devices, such as lights or wave pumps.

Wireless IR Remote Control

The included IR remote provides immediate control over various functions. Ensure the remote has fresh batteries and a clear line of sight to the IR sensor.

Hand holding the wireless IR remote control for the Orbit Marine IC LED system
Image: A hand holding the wireless IR remote control, displaying its array of buttons for setting time, adjusting colors, and activating weather effects or wave pump functions.
  • Set Clock: Use the "SET CLOCK" button to adjust the current time on the LOOP controller.
  • ON/OFF Time: Program the desired ON and OFF times for the daily lighting cycle.
  • Color Adjustment: Utilize the color buttons (red, green, blue, white, actinic) to fine-tune the light spectrum.
  • Weather Effects: Activate dynamic weather effects such as clouds, lightning, and storm modes.
  • Wave Pump Control: If eFlux wave pumps are connected, use the "STREAM", "SURGE", and "WAVE" buttons to control water flow patterns.
  • Feed Mode: Temporarily pauses lighting or wave pumps for feeding.
  • Clean Mode: Temporarily pauses wave pumps for tank maintenance.

Lighting Modes and Features

  • 24-Hour Biorhythmic Cycle: The system includes a built-in program that mimics a natural 24-hour cycle, including gradual sunrise, intense daylight, dimming sunset, and soothing moonlight phases. This cycle assists in acclimating fish and corals.
  • Full Spectrum Control: The light provides full spectrum control, allowing users to create specific color spectra for reef environments. It utilizes a blend of Dual Actinic blue (445nm/460nm), Dual Daylight white (6,700K/10,000K), and RGB LEDs, combined with 90° spherical optical lenses, to deliver light suitable for coral growth and fluorescence.
  • Dynamic Weather Effects: On-demand or programmed weather effects include random cloud cover and lightning strikes, offering dynamic visual effects that can be activated on-demand or integrated into a daily schedule.
  • eFlux Wave Pump Integration: The LOOP controller can manage up to three eFlux accessory wave pumps, allowing for synchronized water flow patterns like streams, surges, and waves.
  • Expandability: The LOOP system is designed for expansion. Additional Orbit Marine IC Accessory LED lights and other LOOP accessories (e.g., eFlux DC return pumps) can be connected to your existing network.

Maintenance

Regular maintenance ensures the optimal performance and longevity of your aquarium lighting system.

  • Cleaning the Fixture: Periodically wipe the LED fixture and lenses with a soft, damp cloth to remove salt creep, dust, and water spots. Ensure the fixture is unplugged before cleaning. Do not use abrasive cleaners.
  • Controller and Sensor: Keep the LOOP controller and IR sensor clean and free from obstructions. Ensure the IR sensor has a clear line of sight to the remote for proper function.
  • Power Supply: Inspect the power supply and cables for any signs of damage or wear. Replace immediately if damage is found.
  • Water Resistance: The Orbit IC LED Light is IP65 water resistant, meaning it is protected against low-pressure water jets. However, it is not designed for submersion. Avoid direct water spray onto the controller or power supply.

Troubleshooting

This section addresses common issues you might encounter with your Orbit Marine IC LED system.

ProblemPossible CauseSolution
Light does not turn on.
  • No power to the controller.
  • Loose connection.
  • Faulty power supply.
  • Check if the power supply is plugged into a working outlet.
  • Ensure all cables (light to HUB, HUB to controller, power supply to controller) are securely connected.
  • Test with another compatible 12VDC power supply if available.
IR Remote is unresponsive.
  • Dead batteries.
  • IR sensor obstructed or disconnected.
  • Remote out of range or not pointed at sensor.
  • Replace batteries in the remote control.
  • Ensure the IR sensor is connected to the controller and has a clear line of sight.
  • Point the remote directly at the IR sensor within its operational range.
Light colors or intensity are incorrect.
  • Incorrect program settings.
  • Partial LED failure.
  • Review the operating instructions for setting light programs and color adjustments. Reset to default settings if necessary.
  • If specific LEDs are not functioning, contact customer support.
Wave pumps (if connected) are not working.
  • Incorrect connection to LOOP system.
  • Wave pump settings incorrect.
  • Ensure eFlux wave pumps are correctly connected to the LOOP system via a wave pump HUB.
  • Check wave pump settings on the LOOP controller or via the IR remote.

Specifications

FeatureDetail
Model Number4108
Size72 inches
Light Source TypeLED (Dual Actinic blue 445nm/460nm, Dual Daylight white 6,700K/10,000K, RGB)
Voltage12 Volts (DC)
Power SourceCorded Electric
MaterialAluminum
Item Weight3.7 Pounds
Product Dimensions (LxWxH)73.6 x 17 x 10.7 inches
Water ResistanceIP65 (Light Fixture)
UPC842959041082

Warranty and Support

CURRENT-USA products carry a one-year limited warranty from the date of purchase. Lamps carry a three-month limited warranty. If your product is within warranty and you require a replacement part or service, please contact CURRENT-USA customer support.

For further assistance or to report issues, please refer to the contact information provided on the official CURRENT-USA website or your purchase documentation.
