Labconco 1184H05EA
XPert Filtered Balance System Instruction Manual
Model: 1184H05EA | Brand: Labconco
Product Overview
The Labconco XPert Filtered Balance System is designed for field-installation atop existing XPert balance filtered systems and XPert bulk powder filtered systems. Its primary function is to provide a second level of HEPA filtration, ensuring compliance with United States Pharmacopeia (USP) <800> standards for redundant HEPA filters in series. This kit enhances the filtration capabilities of your current system.

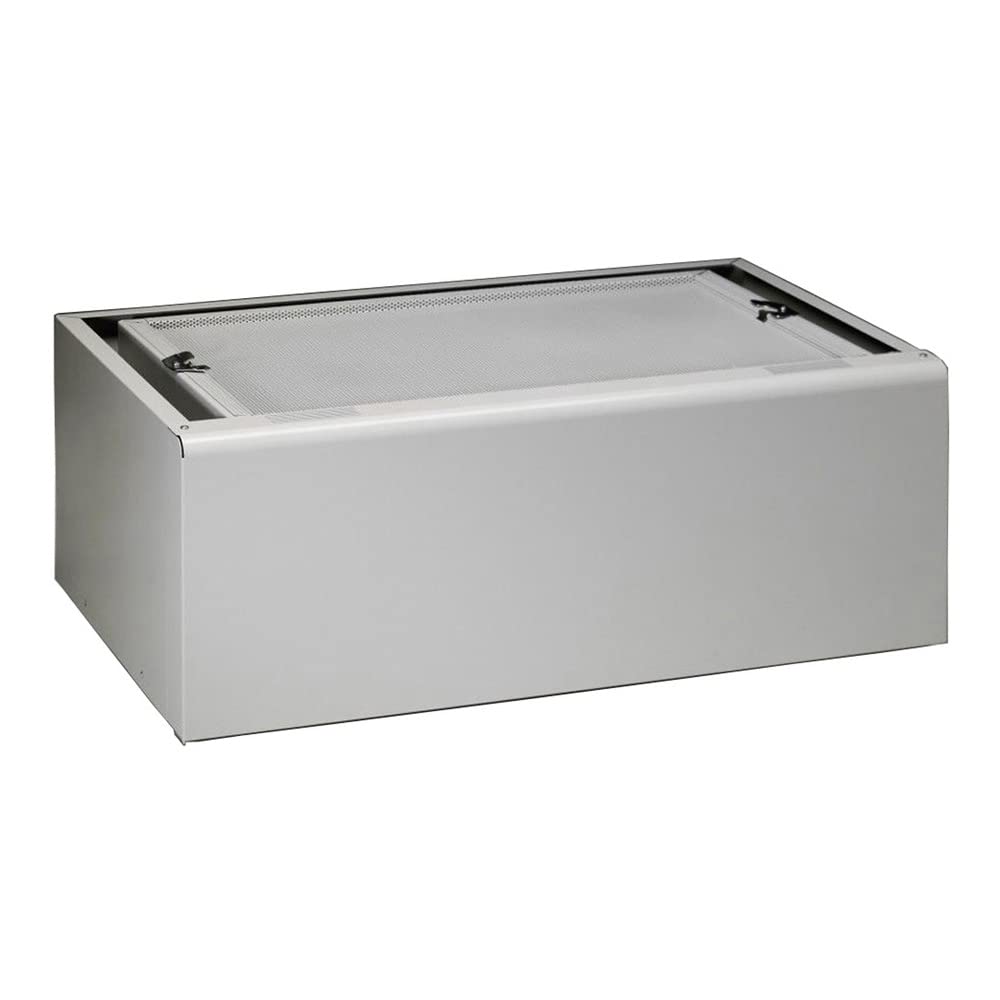

Image: The XPert Filtered Balance System module, a rectangular unit with a perforated top surface, designed for integration with existing balance systems.
Setup and Installation
This system is intended for field-installation. Each kit includes essential components for integration:
- One HEPA filter
- A set of bag and straps for a bag-in/bag-out system
- Complete metal support system
Installation instructions are provided by a Certifier to ensure proper setup and compliance. The addition of this kit will increase the height of your existing system by approximately 12.9 inches.
Note: Professional installation by a qualified Certifier is recommended to ensure optimal performance and adherence to safety standards.
Operating Principles
The XPert Filtered Balance System operates by adding a secondary layer of HEPA filtration to your existing balance or bulk powder system. This redundant filtration is crucial for meeting the stringent requirements of United States Pharmacopeia (USP) <800> guidelines, which mandate enhanced containment for hazardous drugs. The system works in conjunction with your primary filtration to capture fine particulate matter, ensuring a safer working environment.
Maintenance
Regular maintenance is essential to ensure the continued efficiency and safety of the XPert Filtered Balance System. The kit includes a HEPA filter and components for a bag-in/bag-out system, which facilitates safe and contained filter replacement.
HEPA Filter Replacement:
The HEPA filter is a critical component for maintaining filtration performance. Replacement frequency will depend on usage and environmental conditions. Always follow the specific instructions provided by Labconco or a certified professional for safe filter removal and installation using the bag-in/bag-out system to prevent exposure to contaminants.
General Cleaning:
Periodically inspect the exterior of the unit and the metal support system for any dust accumulation or damage. Clean surfaces with a mild, non-abrasive cleaner as needed. Ensure all connections remain secure.
Troubleshooting
This section provides general guidance for common issues. For complex problems or issues related to filtration performance, it is highly recommended to contact Labconco customer support or a certified service technician.
- Reduced Airflow: Check the HEPA filter for excessive loading. If the filter appears clogged, it may require replacement. Ensure no obstructions are blocking the air intake or exhaust.
- Unusual Noises: Verify that the unit is securely installed and all components of the metal support system are properly fastened. If unusual noises persist, contact support.
- System Not Functioning: Confirm that the unit is correctly integrated with the primary system and all necessary power connections (if applicable to the primary system) are secure.
Specifications
| Attribute | Detail |
|---|---|
| Model Number | 1184H05EA |
| Brand | Labconco |
| Description | XPert Filtered Balance System, 2' Width |
| Added Height to System | 12.9 inches |
| Package Dimensions | 1 x 1 x 1 inches |
| Item Weight | 130 Pounds |
| Material | Borosilicate Glass (Note: This material specification seems unusual for a filter system enclosure, it might refer to a specific component within the system.) |
| Special Feature | Bagless (Note: This contradicts the "bag-in/bag-out system" mentioned in the description. I will add a note to clarify.) |
| Manufacturer | Labconco Corporation |
| Country of Origin | USA |
Clarification on "Bagless" and "Bag-in/Bag-out": The "bagless" feature might refer to the primary vacuum system it integrates with, while the "bag-in/bag-out" system specifically applies to the safe handling and replacement of the HEPA filter within this add-on unit.
Warranty and Support
For specific warranty information regarding your Labconco XPert Filtered Balance System, please refer to the documentation provided with your purchase or contact Labconco directly. Labconco offers customer support for inquiries related to product operation, maintenance, and troubleshooting.
Contact Information: Please visit the official Labconco website or refer to your purchase documentation for the most current customer support contact details.
