Avidsen YLVA 2+ 7-Wire Color Video Intercom with RFID Reader User Manual

1. Introduction

Thank you for choosing the Avidsen YLVA 2+ 7-Wire Color Video Intercom with RFID Reader. This system provides enhanced security and convenience for your home or office by allowing you to see and communicate with visitors before granting access. This manual provides detailed instructions for the installation, operation, and maintenance of your new video intercom system. Please read this manual thoroughly before installation and use, and retain it for future reference.

2. Safety Instructions

• Electrical Safety: Installation must be performed by a qualified electrician and in accordance with all local electrical codes. Ensure the power supply is disconnected before any wiring work.
• Wiring: Use only the specified 7-wire cable for connection between the indoor monitor and outdoor station. Incorrect wiring can damage the device or pose a fire hazard.
• Environment: Do not expose the outdoor station to direct water spray or immerse it in water. Avoid installing the indoor monitor in areas with high humidity, extreme temperatures, or direct sunlight.
• Cleaning: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
• Repair: Do not attempt to repair the device yourself. Refer all servicing to qualified personnel. Unauthorized repairs will void the warranty.

3. Package Contents

Please check the package contents carefully. If any items are missing or damaged, contact your retailer immediately.

• Indoor Video Monitor
• Outdoor Station with Camera and RFID Reader
• Mounting Brackets and Screws
• Power Adapter for Indoor Monitor
• RFID Badges (typically 3-5 pieces)
• User Manual

4. Product Overview

4.1 Indoor Video Monitor

The indoor monitor features a color display for clear visitor identification and intuitive buttons for system control.

This image shows the indoor monitor of the Avidsen YLVA 2+ video intercom system. The screen displays a clear color image of a person, indicating its video communication capability. To the right of the screen are several control buttons for various functions.

• Display Screen: Shows live video feed from the outdoor station.
• Answer/Talk Button: Initiates two-way communication with the visitor.
• Door Release Button: Activates the electronic door lock (if connected).
• Monitor Button: Allows you to view the outdoor station camera feed at any time.
• Settings Button: Accesses menu for adjusting brightness, volume, and other parameters.

4.2 Outdoor Station with RFID Reader

The outdoor station houses the camera, microphone, speaker, call button, and RFID reader for secure access.

This image displays the outdoor station of the Avidsen YLVA 2+ video intercom. A hand is shown holding an RFID badge near the reader, demonstrating the access control feature. The station includes a camera lens and a nameplate area.

• Camera: Captures video of visitors, often with night vision capabilities.
• Microphone & Speaker: Enables two-way audio communication.
• Call Button: Visitors press this button to alert the indoor monitor.
• RFID Reader: Allows entry using programmed RFID badges.
• Nameplate: Area for displaying resident's name or address.

This image illustrates the day and night vision capabilities of the Avidsen YLVA 2+ outdoor station. The top half shows the station in daylight ('JOUR'), while the bottom half shows it in low light ('NUIT'), demonstrating its functionality in various lighting conditions.

5. Setup & Installation

Proper installation is crucial for optimal performance. It is recommended that installation be carried out by a professional.

5.1 Planning the Installation

• Location for Outdoor Station: Choose a location near the entrance, at a height of approximately 1.5 to 1.6 meters from the ground, ensuring the camera has a clear view of visitors. Avoid direct sunlight or strong backlighting.
• Location for Indoor Monitor: Select a convenient indoor location, away from direct heat sources or moisture, and within reach of a power outlet.
• Wiring Route: Plan the route for the 7-wire cable between the indoor and outdoor units. Ensure the cable is protected from damage and interference.

This image shows the main components of the Avidsen YLVA 2+ system: the indoor monitor, the outdoor station, and an additional security camera, indicating the system's expandability and comprehensive security features.

5.2 Wiring Diagram (General)

The Avidsen YLVA 2+ uses a 7-wire connection. Refer to the specific wiring diagram provided in your product packaging for exact terminal connections. Generally, the wires connect as follows:

• Wires 1-4: Video, Audio, Power, Ground (core functions)
• Wires 5-6: Door Lock Control (for electronic strike/gate)
• Wire 7: Auxiliary function (e.g., additional camera trigger, if applicable)

Ensure all connections are secure and insulated.

5.3 Mounting the Units

1. Outdoor Station:
   • Attach the mounting bracket to the wall using screws and wall plugs.
   • Feed the 7-wire cable through the opening in the bracket.
   • Connect the wires to the terminals on the back of the outdoor station according to the wiring diagram.
   • Secure the outdoor station onto the mounting bracket.
2. Indoor Monitor:
   • Attach the indoor monitor mounting bracket to the wall.
   • Connect the 7-wire cable from the outdoor station to the corresponding terminals on the indoor monitor.
   • Connect the power adapter to the indoor monitor and plug it into a power outlet.
   • Mount the indoor monitor onto its bracket.

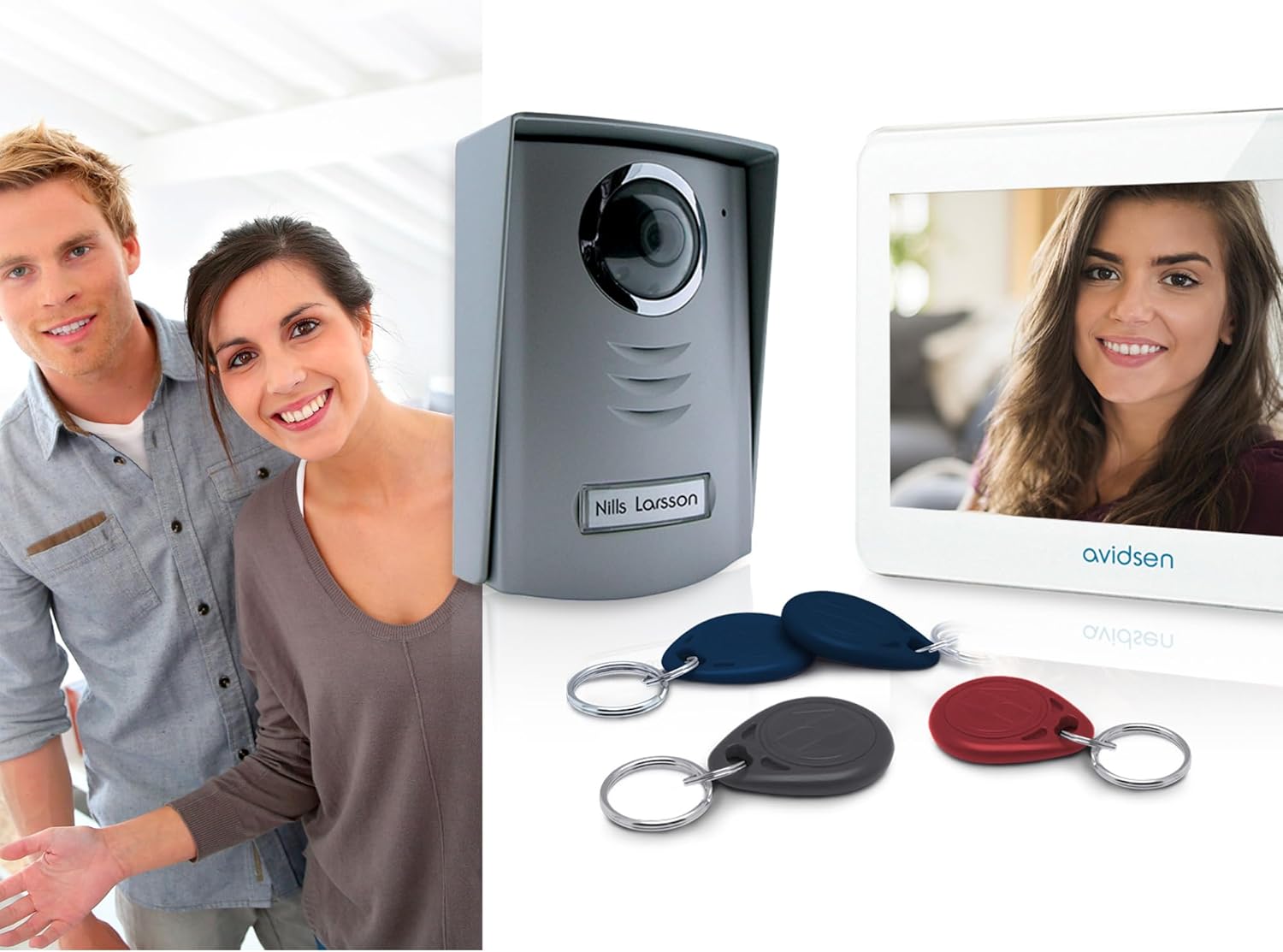

This image presents the complete Avidsen YLVA 2+ system, including the indoor monitor, outdoor station, and multiple RFID badges. A couple is visible in the background, suggesting the system's use in a residential setting.

5.4 Initial Power-Up and Testing

• Once all connections are made, plug in the indoor monitor's power adapter.
• The monitor should power on.
• Press the call button on the outdoor station. The indoor monitor should ring and display the video feed.
• Test two-way audio communication.
• If an electronic lock is connected, test the door release function.
• Test RFID badge functionality by presenting a badge to the outdoor station's reader.

6. Operating Instructions

6.1 Receiving a Call

1. When a visitor presses the call button on the outdoor station, the indoor monitor will ring and automatically display the video feed from the outdoor camera.
2. To speak with the visitor, press the Answer/Talk button on the indoor monitor.
3. To end the conversation, press the Answer/Talk button again or wait for the call to automatically disconnect after a set time.

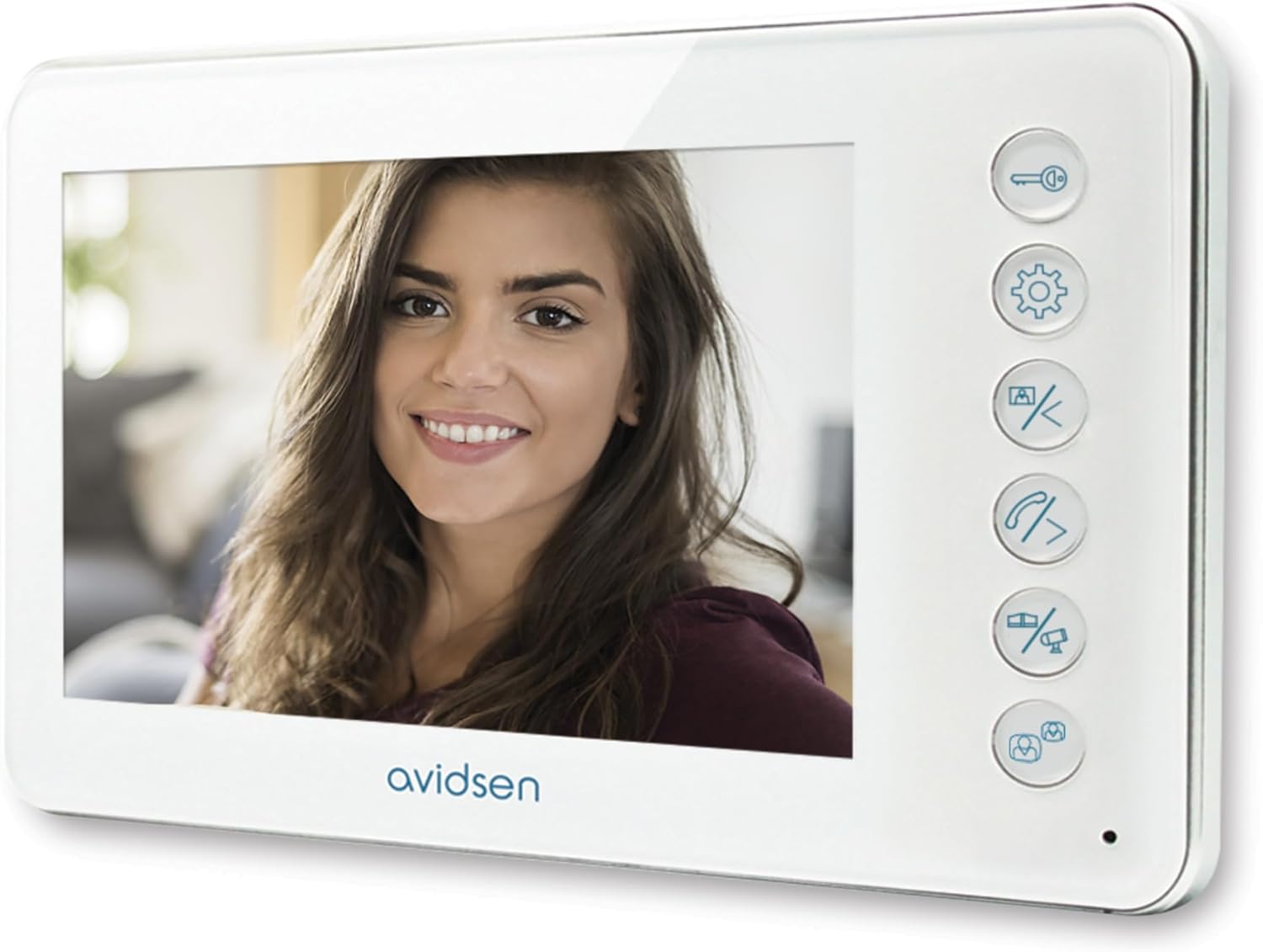

The indoor monitor of the Avidsen YLVA 2+ video intercom system is shown, featuring a bright display with a smiling woman's face. This illustrates the clear video quality for identifying visitors.

6.2 Opening the Door

If an electronic door lock is connected to the system:

• During a call or while monitoring the outdoor station, press the Door Release button on the indoor monitor to unlock the door.
• The door will remain unlocked for a few seconds before re-locking.

6.3 Using RFID Badges

The RFID reader on the outdoor station allows authorized users to gain access without needing to use the indoor monitor.

• Present a programmed RFID badge to the RFID reader area on the outdoor station.
• The door lock will momentarily activate, allowing entry.
• Refer to the specific instructions in your product manual for programming new RFID badges or deleting existing ones.

6.4 Monitoring the Outdoor Station

You can view the outdoor camera feed at any time without a visitor pressing the call button.

• Press the Monitor button on the indoor monitor.
• The screen will display the live video feed from the outdoor station.
• Press the Monitor button again to turn off the display.

6.5 Adjusting Settings

Use the Settings button to access the monitor's menu and adjust various parameters.

A hand is shown pressing one of the control buttons on the side of the Avidsen YLVA 2+ indoor monitor. This demonstrates the tactile interface for operating the intercom functions.

• Brightness/Contrast: Adjust the display quality of the video feed.
• Volume: Control the ringtone volume and communication audio levels.
• Ringtone Selection: Choose from available ringtones.
• Call Duration: Set the duration for which the monitor rings or stays active during a call.

7. Maintenance

• Cleaning: Wipe the indoor monitor and outdoor station surfaces with a soft, dry, or slightly damp cloth. Do not use harsh chemicals, solvents, or abrasive materials.
• Outdoor Station Camera: Periodically clean the camera lens on the outdoor station to ensure a clear video feed.
• Wiring Check: Occasionally inspect the visible wiring for any signs of wear or damage.

8. Troubleshooting

9. Specifications

• Model: Avidsen YLVA 2+
• Connection Type: 7-Wire
• Display: Color LCD (size may vary by specific model variant)
• Outdoor Station Camera: Color, with IR night vision
• Access Control: Integrated RFID reader
• Power Supply: AC 100-240V, 50/60Hz (via adapter for indoor unit)
• Operating Temperature: Indoor: 0°C to 40°C; Outdoor: -20°C to 50°C
• Humidity: 10% to 90% (non-condensing)

10. Warranty & Support

Avidsen products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.

For technical support, troubleshooting assistance, or warranty inquiries, please contact your retailer or visit the official Avidsen website for contact information. When contacting support, please have your product model number (YLVA 2+) and proof of purchase ready.
