1. Introduction
Thank you for choosing the Nexel 14305C Chrome Wire Shelving unit. This manual provides detailed instructions for the safe assembly, operation, and maintenance of your new shelving unit. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
This shelving unit is designed for efficient storage, featuring an open wire design that allows for air circulation and light penetration, minimizing dust accumulation. The shelves are adjustable without tools, allowing for flexible storage solutions.
2. Safety Information
- Read all instructions: Ensure you understand all assembly steps and safety warnings before use.
- Weight Capacity: Do not exceed the maximum weight capacity per shelf or for the entire unit. Overloading can cause structural failure and injury. (Specific weight capacity not provided, exercise caution.)
- Level Surface: Always assemble and use the shelving unit on a flat, level, and stable surface to prevent tipping.
- Secure Assembly: Ensure all components are securely fastened before placing items on the shelves.
- Children and Pets: Keep children and pets away from the assembly area. Do not allow children to climb on or play with the shelving unit.
- Sharp Edges: Be aware of potential sharp edges during assembly. Wear gloves if necessary.
- Proper Placement: Distribute weight evenly on shelves. Place heavier items on lower shelves for increased stability.
3. Package Contents
Before assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact Global Industrial customer service for assistance.
- 4 x Posts with Leveling Feet
- 4 x Wire Shelves
- 16 x Snap-on Sleeves (4 per shelf)

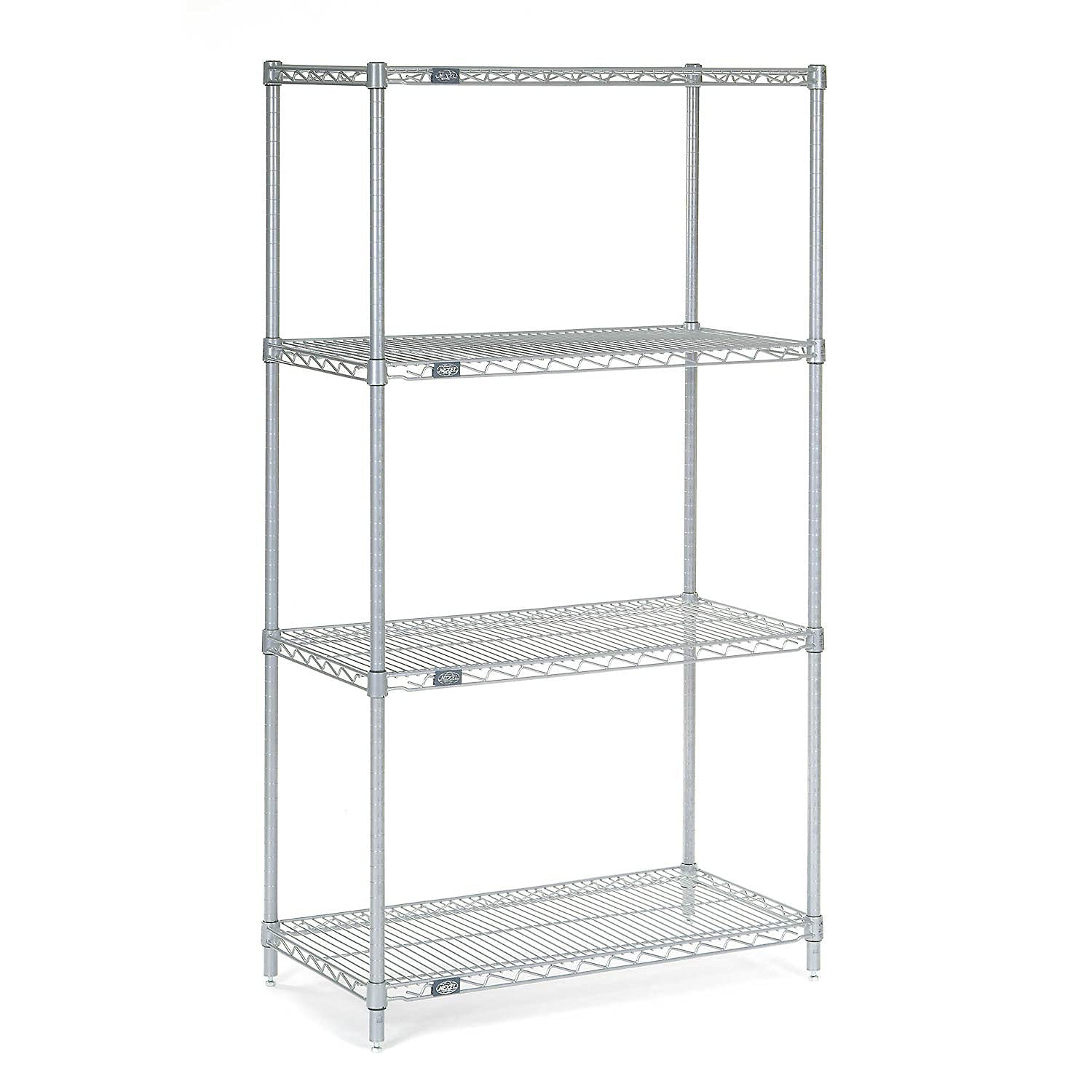

Figure 3.1: Assembled Nexel 14305C Chrome Wire Shelving Unit. This image shows the complete four-shelf unit with its chrome finish and open wire design.
4. Setup and Assembly
Assembly of the Nexel 14305C Chrome Wire Shelving unit is designed to be straightforward and tool-free. Follow these steps carefully:
- Attach Leveling Feet: Screw the leveling feet into the bottom of each of the four posts. Ensure they are securely tightened.
- Determine Shelf Height: On each post, there are horizontal grooves at 1-inch increments. Decide the desired height for your first (bottom) shelf.
- Install Snap-on Sleeves: Take two halves of a snap-on sleeve and snap them together around a post at the desired groove. Repeat this for all four posts at the same height for the first shelf. Ensure the sleeves are firmly seated in the grooves.
- Place First Shelf: Carefully slide the first wire shelf down over the four posts until it rests securely on the snap-on sleeves. Apply even pressure to all corners to ensure it seats properly.
- Install Remaining Shelves: Repeat steps 3 and 4 for the remaining three shelves, adjusting their heights as needed.
- Final Check: Once all shelves are in place, gently push down on each shelf to ensure it is fully seated and stable. Adjust the leveling feet if the unit wobbles.
5. Operating and Usage
The Nexel 14305C shelving unit is designed for versatile storage. Here are guidelines for optimal use:
- Adjusting Shelves: To adjust a shelf's height, remove all items from the shelf. Lift the shelf off the snap-on sleeves. Remove the sleeves, reposition them at the desired new height (ensuring they are at the same level on all four posts), and then place the shelf back onto the sleeves.
- Loading Items: Distribute weight evenly across each shelf. Avoid concentrating heavy items in one small area. Place heavier items on lower shelves to enhance the unit's stability.
- Environment: This unit is suitable for various indoor environments. While chrome offers good corrosion resistance, avoid prolonged exposure to excessive moisture or harsh chemicals to maintain its finish.
6. Maintenance
Regular maintenance will help prolong the life and appearance of your Nexel Chrome Wire Shelving unit:
- Cleaning: Wipe down the shelves and posts with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used, followed by drying thoroughly. Avoid abrasive cleaners or scouring pads, which can damage the chrome finish.
- Inspection: Periodically check all snap-on sleeves and leveling feet to ensure they are secure. Tighten leveling feet if they have loosened.
- Stability Check: Ensure the unit remains stable and level. Adjust leveling feet as needed to compensate for uneven floors.
7. Troubleshooting
If you encounter issues with your shelving unit, refer to the following common solutions:
- Unit is Wobbly:
- Ensure the unit is on a level surface. Adjust the leveling feet until the unit is stable.
- Verify that all snap-on sleeves are fully seated in the grooves on the posts and that the shelves are resting firmly on them.
- Check that weight is evenly distributed on the shelves.
- Shelf Not Level:
- Ensure the snap-on sleeves for that shelf are all placed at the same groove height on each post.
- Confirm the shelf is fully seated on all four sleeves.
- Difficulty Assembling:
- Ensure you are using the correct number of snap-on sleeves (4 per shelf).
- Make sure the two halves of each snap-on sleeve are fully snapped together around the post before attempting to slide the shelf over them.
8. Specifications
Key specifications for the Nexel 14305C Chrome Wire Shelving unit:
- Model Number: 14305C
- Material: Alloy Steel
- Finish: Chrome
- Product Dimensions (D x W x H): 14 inches x 30 inches x 54 inches
- Number of Shelves: 4
- Shelf Type: Tiered Shelf
- Mounting Type: Surfaces (Freestanding)
- Item Weight: Approximately 38.6 pounds
- Special Feature: Durable, Adjustable Shelves
Figure 8.1: Dimensions of the Nexel 14305C Chrome Wire Shelving Unit. This image illustrates the height (54"), width (30"), and depth (14") of the assembled shelving unit.
9. Warranty and Support
For warranty information or customer support regarding your Nexel 14305C Chrome Wire Shelving unit, please contact Global Industrial directly. Refer to their official website or your purchase documentation for the most current contact details and warranty terms.
Manufacturer: Global Industrial
