Fasco D310 4.4 Frame Open Ventilated Shaded Pole General Purpose Motor Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Fasco D310 4.4 Frame Open Ventilated Shaded Pole General Purpose Motor. The D310 is a 1/12HP, 1550 RPM motor designed for various general-purpose applications requiring reliable performance. It operates on 115V, 60Hz power with a 4 amp rating and features a durable sleeve bearing design.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in electric shock, fire, serious injury, or death.

• Always disconnect power before installing, servicing, or performing any maintenance on the motor.
• Installation and wiring should be performed by a qualified electrician in accordance with all local and national electrical codes.
• Ensure the motor is properly grounded to prevent electrical shock.
• Do not operate the motor in wet or damp conditions unless specifically rated for such environments.
• Keep hands, clothing, and tools clear of moving parts during operation.
• Ensure adequate ventilation around the motor to prevent overheating.
• Do not exceed the motor's specified voltage, current, or speed ratings.

3. Setup and Installation

Proper installation is crucial for the motor's performance and longevity. Refer to the following guidelines:

3.1 Mounting

Mount the motor securely to a stable, vibration-free surface using appropriate fasteners. Ensure the mounting orientation allows for proper airflow and access for maintenance. Avoid mounting in areas with excessive dust, moisture, or corrosive fumes.

3.2 Wiring

All electrical connections must comply with local and national electrical codes. Connect the motor to a dedicated circuit with appropriate overcurrent protection. Verify the supply voltage matches the motor's rated voltage (115V). Consult a qualified electrician for wiring if you are unsure.

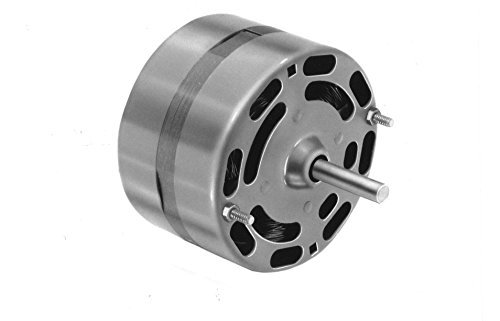

Image of the Fasco D310 motor, showing its general appearance and sleeve bearing. This motor is designed for general purpose applications.

4. Operating Instructions

Once installed and wired correctly, the Fasco D310 motor is ready for operation.

• Initial Start-up: After ensuring all connections are secure and safety precautions are observed, apply power to the motor. The motor should start smoothly and reach its rated speed of 1550 RPM.
• Normal Operation: Monitor the motor for any unusual noises, vibrations, or excessive heat during the initial operating period. The open ventilated design relies on ambient air for cooling.
• Stopping the Motor: Disconnect power to stop the motor.

5. Maintenance

Regular maintenance helps ensure the longevity and reliable performance of your motor.

5.1 Cleaning

Periodically inspect the motor for dust and debris accumulation, especially around the ventilation openings. Use compressed air or a soft brush to clean the exterior. Ensure power is disconnected before cleaning.

5.2 Bearing Maintenance

The D310 motor features sleeve bearings. These bearings typically require periodic lubrication. Consult the motor's specific lubrication requirements, if provided on the motor label or in supplementary documentation, for the type and frequency of lubricant application. Over-lubrication can be as detrimental as under-lubrication.

5.3 Inspection

Regularly check for loose connections, damaged wiring, or signs of wear. Address any issues promptly to prevent further damage or safety hazards.

6. Troubleshooting

This section outlines common issues and basic troubleshooting steps. For complex problems, contact qualified service personnel.

• Motor Does Not Start:
  • Check power supply and circuit breaker.
  • Verify all wiring connections are secure and correct.
  • Ensure there is no mechanical obstruction preventing the motor shaft from turning.
• Motor Overheats:
  • Check for proper ventilation around the motor.
  • Ensure the motor is not overloaded (e.g., driving a load that requires more power than the motor can provide).
  • Verify the supply voltage is within the motor's specified range.
• Unusual Noise or Vibration:
  • Check for loose mounting bolts or components.
  • Inspect for foreign objects in or around the motor.
  • Examine the bearings for signs of wear or lack of lubrication.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or service inquiries regarding your Fasco D310 motor, please refer to the documentation provided at the time of purchase or contact Fasco customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
