Eurodib BI001 Drop In Induction Range User Manual

1. Introduction

Thank you for choosing the Eurodib BI001 Drop In Induction Range. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read these instructions thoroughly before use and retain them for future reference.

2. Important Safety Instructions

WARNING: To reduce the risk of fire, electric shock, injury to persons, or damage when using the appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance is for commercial use only.

3. Setup and Installation

3.1 Unpacking

Carefully remove the induction range from its packaging. Inspect the unit for any shipping damage. Report any damage immediately to your supplier. Keep the packaging materials for future transport if needed.

3.2 Placement

• Ensure the installation surface is stable, level, and non-combustible.
• Allow adequate ventilation around the unit. Do not block air vents.
• Maintain a safe distance from walls and other appliances to prevent overheating.
• This is a drop-in model, designed to be installed into a countertop cutout. Ensure the cutout dimensions match the unit's specifications.

3.3 Electrical Connection

The Eurodib BI001 operates on 120V, 1600W. Ensure the electrical outlet meets these requirements and is properly grounded. Do not use extension cords or adapters.

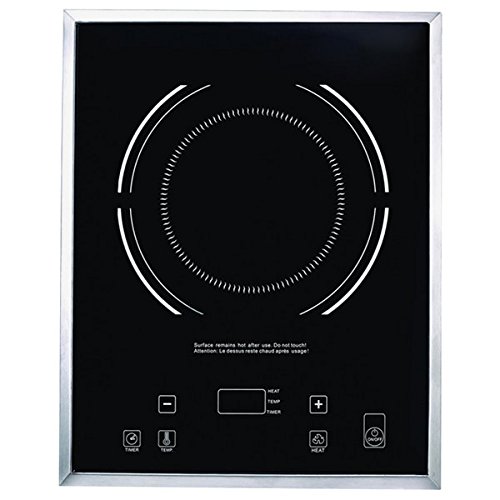

Figure 1: Eurodib BI001 Drop In Induction Range. This image shows the compact design of the induction cooktop, featuring a black glass-ceramic surface and a digital display with touch controls.

4. Operating Instructions

4.1 Compatible Cookware

Induction cooktops require cookware made of ferromagnetic material. To check if your cookware is compatible, hold a magnet to the bottom. If the magnet sticks, the cookware is suitable for induction. Examples include cast iron, enameled steel, and stainless steel with a magnetic base.

4.2 Basic Operation

1. Power On: Place compatible cookware with food on the cooking zone. Plug the unit into a grounded 120V outlet. The unit will enter standby mode.
2. Start Cooking: Press the Power button (often indicated by an ON/OFF symbol). The LED display will illuminate.
3. Adjust Power/Temperature: Use the + and - buttons or touch slider (if available) to select the desired power level or temperature setting. The BI001 features a digital display for precise control.
4. Timer Function: If available, press the Timer button and use + and - to set the cooking duration. The unit will automatically shut off when the timer expires.
5. Power Off: Press the Power button again to turn off the unit. Remove the cookware. The surface may remain warm for a short period.

4.3 Safety Features

• Automatic Shut-off: The unit will automatically shut off if no compatible cookware is detected or if left unattended for an extended period.
• Overheat Protection: If the internal temperature becomes too high, the unit will automatically reduce power or shut down to prevent damage.

5. Maintenance and Cleaning

CAUTION: Always unplug the induction range from the power outlet and allow it to cool completely before cleaning.

5.1 Cleaning the Surface

• Wipe the glass-ceramic surface with a soft, damp cloth and a mild detergent.
• For stubborn stains, use a non-abrasive ceramic cooktop cleaner.
• Do not use abrasive pads, harsh chemicals, or scouring powders, as these can scratch or damage the surface.
• Ensure the surface is completely dry before plugging the unit back in.

5.2 Cleaning the Air Vents

Regularly check and clean the air intake and exhaust vents to ensure proper airflow and prevent overheating. Use a soft brush or vacuum cleaner to remove dust and debris.

5.3 Storage

If storing the unit for an extended period, ensure it is clean and dry. Store in a cool, dry place, away from direct sunlight and moisture.

6. Troubleshooting

7. Specifications

• Model: BI001
• Brand: Eurodib
• Power: 120V, 1600W
• Heating Elements: 1
• Burner Type: Induction
• Control Type: Touch Controls with LED Display
• Heater Surface Material: Glass-Ceramic
• Color: Black
• Fuel Type: Electric
• Special Feature: Digital Display
• ASIN: B01LJWETXQ
• Manufacturer Reference: BUR-980BI001

8. Warranty and Support

Eurodib products are manufactured to the highest quality standards. For warranty information and customer support, please refer to the warranty card included with your product or visit the official Eurodib website. Keep your proof of purchase for warranty claims.

For technical assistance or service inquiries, please contact your authorized Eurodib dealer or customer service representative.
