1. Product Overview
The Spectra Premium S10243 Camshaft Position Sensor is an essential component designed to meet or exceed original equipment (OE) performance standards. It plays a critical role in your vehicle's engine management system by monitoring the rotational position of the camshaft, which is vital for precise fuel injection and ignition timing.
Key features include:
- Designed to original equipment (OE) fit, form, and function requirements.
- Tested for durability through long-cycle thermal shock tests (-50 to 300 degrees) to ensure reliability against extreme vibrations.
- Salt spray tested for high resistance to corrosion.
- Road tested to verify real-world performance and adherence to Spectra Premium quality standards.
- Engineered to stringent tolerances based on in-depth OE part knowledge.
Figure 1: The Spectra Premium S10243 Camshaft Position Sensor, showing the main sensor body, wiring, and electrical connector.
2. What's in the Box
Upon opening the product packaging, you will find the following item:
- One (1) Camshaft Position Sensor
3. Setup and Installation
Installation of the camshaft position sensor typically involves replacing an existing faulty sensor. Due to the critical nature of this component and its integration with the vehicle's engine management system, it is highly recommended that installation be performed by a qualified automotive technician.
3.1. Safety Precautions
- Always disconnect the vehicle's battery before beginning any electrical work.
- Ensure the engine is cool to the touch to prevent burns.
- Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves.
- Refer to your vehicle's specific service manual for detailed instructions and torque specifications.
3.2. General Installation Steps (Consult Vehicle Manual)
- Locate the existing camshaft position sensor on your vehicle's engine. Its location varies by vehicle make and model.
- Carefully disconnect the electrical connector from the old sensor.
- Remove any retaining bolts or clips securing the old sensor.
- Gently remove the old sensor from its mounting location.
- Inspect the mounting surface for any debris or damage and clean if necessary.
- Install the new Spectra Premium S10243 sensor, ensuring it seats correctly.
- Secure the sensor with the retaining bolts or clips, tightening to the vehicle manufacturer's specified torque.
- Reconnect the electrical connector, ensuring a secure connection.
- Reconnect the vehicle's battery.
- Start the engine and check for proper operation and any diagnostic trouble codes (DTCs).

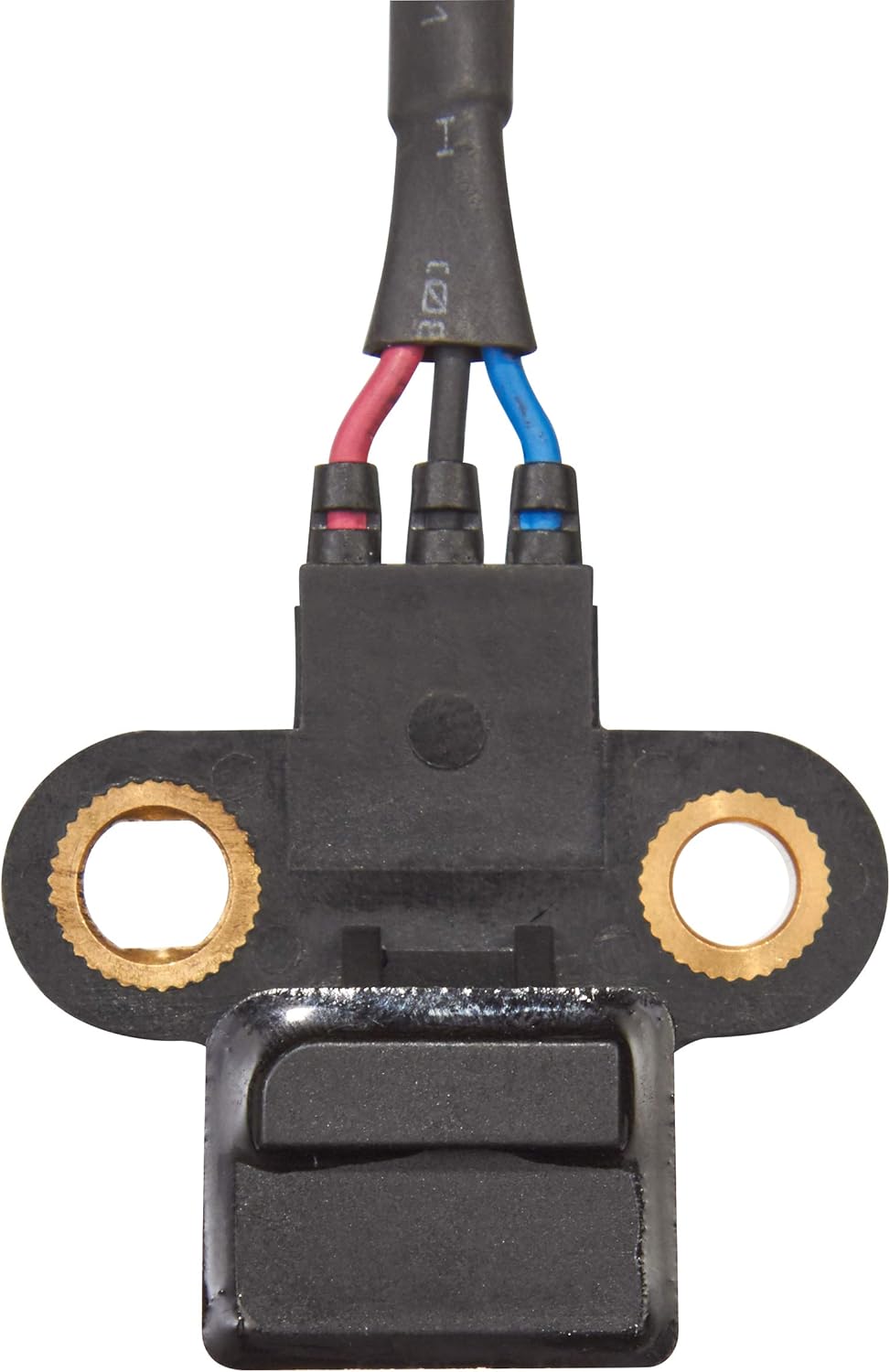

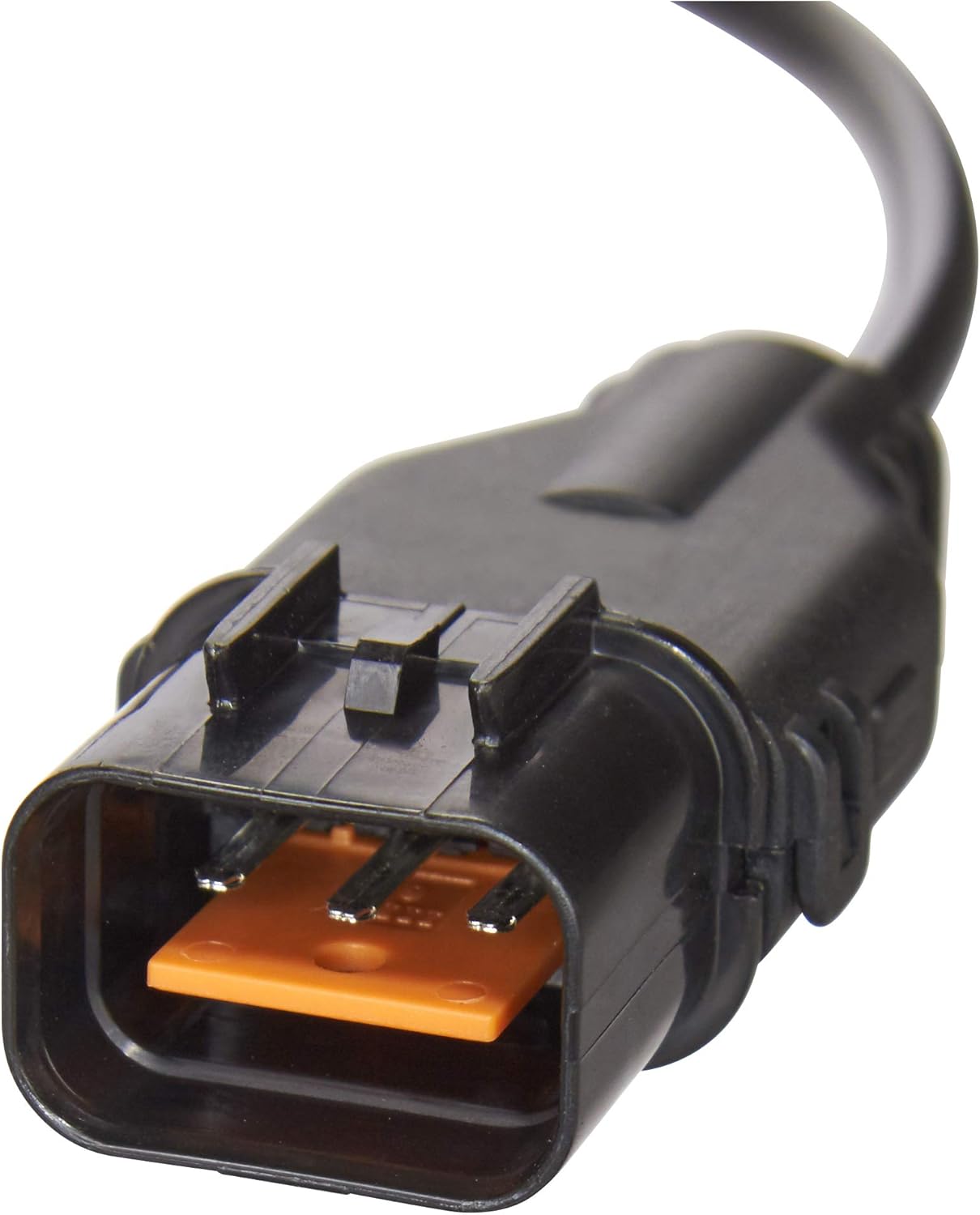

Figure 2: Left: Close-up view of the sensor head with mounting holes. Right: Detailed view of the electrical connector, ensuring proper fitment during installation.
4. Operating Principles
The camshaft position sensor (CPS) is a crucial component in modern engine management systems. It monitors the position of the camshaft, which controls the opening and closing of the engine's valves. This information is sent to the engine control unit (ECU).
The ECU uses the camshaft position data, along with crankshaft position data, to:
- Determine the precise timing for fuel injection.
- Control ignition timing for optimal combustion.
- Detect misfires.
- Operate variable valve timing (VVT) systems, if equipped.
A properly functioning Spectra Premium S10243 sensor ensures accurate data transmission to the ECU, contributing to efficient engine performance, fuel economy, and reduced emissions.
5. Maintenance
The Spectra Premium S10243 Camshaft Position Sensor is designed for long-term reliability and typically requires no routine maintenance. However, it is advisable to periodically inspect the sensor and its wiring harness during routine vehicle maintenance for any signs of:
- Physical damage or cracks on the sensor body.
- Corrosion or dirt on the electrical connector pins.
- Fraying, cuts, or damage to the wiring harness.
- Loose connections.
If any damage is observed, replacement of the sensor or repair of the wiring may be necessary. Always ensure the electrical connector is clean and securely fastened.
6. Troubleshooting
A faulty camshaft position sensor can lead to various engine performance issues. If you experience any of the following symptoms, the sensor may need inspection or replacement:
- Check Engine Light (CEL) illuminated: This is often the first indicator, with specific diagnostic trouble codes (DTCs) related to the camshaft position sensor (e.g., P0340, P0341).
- Difficulty starting the engine: The ECU may not know when to fire the spark plugs or inject fuel.
- Rough idling or stalling: Inaccurate camshaft position data can disrupt engine timing.
- Reduced engine power or acceleration: The engine may enter "limp mode" or operate inefficiently.
- Poor fuel economy: Incorrect timing can lead to inefficient fuel combustion.
Recommended Action:
- Use an OBD-II scanner to retrieve any stored diagnostic trouble codes.
- Inspect the sensor's electrical connector and wiring for damage or corrosion.
- If the sensor is suspected to be faulty, replacement with a quality part like the Spectra Premium S10243 is recommended.
For accurate diagnosis and repair, it is always best to consult a professional automotive technician.
7. Specifications
| Attribute | Value |
|---|---|
| Brand | Spectra Premium |
| Model Number | S10243 |
| Item Dimensions (L x W x H) | 4.33 x 3.31 x 2.87 inches |
| Item Weight | 3.2 ounces (0.2 Pounds) |
| Mounting Type | Flange Mount |
| Specific Uses For Product | Camshaft Position Sensor |
| UPC | 627785016752, 874183017007 |
| OEM Part Number | 3931039110; 3931839700 |
8. Warranty and Support
Spectra Premium products are manufactured to high-quality standards. For specific warranty information regarding your S10243 Camshaft Position Sensor, please refer to the warranty documentation included with your purchase or visit the official Spectra Premium website. For technical support or inquiries, please contact Spectra Premium customer service through their official channels.
