Char-Broil G432-001N-W1 Cooking Grate Replacement Part Instruction Manual

Introduction

This manual provides essential information for the proper installation, use, and maintenance of your Char-Broil G432-001N-W1 Cooking Grate Replacement Part. This part is an O.E.M. authorized and authorized aftermarket product designed to fit specific Char-Broil grill models. Please read these instructions carefully before proceeding with installation or use.

Important Safety Information

Always exercise caution when working with grill components. Ensure the grill is completely cool and disconnected from any fuel source (gas or electricity) before attempting to replace parts. Wear appropriate protective gear, such as gloves, to prevent injury from sharp edges or residual heat.

• Ensure the grill is off and cool before handling any parts.
• Use caution when handling metal parts, as edges may be sharp.
• Keep children and pets away from the grill during maintenance.

Setup and Installation

Before installing the new cooking grate, it is crucial to verify compatibility with your specific grill model. Many replacement parts may appear similar but are designed for different models. Refer to your grill's original manual or the product specifications to confirm the correct part number.

This image emphasizes the importance of checking your grill's model number to ensure the replacement part is compatible.

Installation Steps:

1. Prepare the Grill: Ensure your grill is completely cool. Open the grill lid.
2. Remove Old Grate: Carefully lift and remove the existing cooking grate(s) from the grill. Dispose of the old grate responsibly if it is damaged.
3. Clean Grill Interior: This is an opportune time to clean the interior of your grill, including burner covers and the firebox, removing any accumulated grease or debris.
4. Position New Grate: Place the new Char-Broil G432-001N-W1 Cooking Grate into the designated position within the grill. Ensure it sits level and securely on the grate supports.
5. Verify Fit: Gently close the grill lid to ensure the grate does not interfere with the lid's movement.

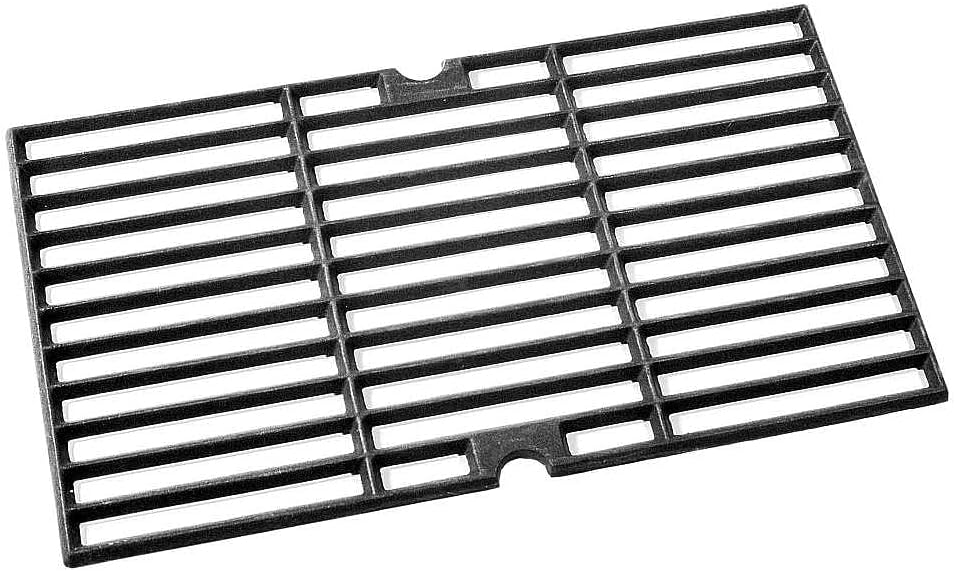

The Char-Broil G432-001N-W1 Cooking Grate, ready for installation.

Operating the Cooking Grate

The cooking grate serves as the primary surface for cooking food on your grill. Proper use ensures even heat distribution and optimal cooking results.

• Preheating: Always preheat your grill with the lid closed for 10-15 minutes before placing food on the grate. This allows the grate to reach the desired cooking temperature.
• Seasoning (if applicable): If your grate is cast iron and not pre-seasoned, follow manufacturer instructions for initial seasoning to prevent rust and create a non-stick surface.
• Food Placement: Arrange food evenly on the grate to ensure consistent cooking.

Maintenance and Care

Regular cleaning and maintenance will extend the life of your cooking grate and ensure optimal grilling performance.

• After Each Use: While the grate is still warm (but not excessively hot), use a grill brush to scrape off any food residue.
• Deep Cleaning: Periodically, remove the grate and wash it with warm, soapy water. Rinse thoroughly and dry completely to prevent rust.
• Storage: If storing the grill for an extended period, ensure the grate is clean and dry. Consider lightly coating cast iron grates with cooking oil to prevent rust.
• Inspection: Regularly inspect the grate for signs of wear, damage, or rust. Replace if necessary to maintain safe and effective grilling.

Troubleshooting

This section addresses common concerns related to cooking grates.

• Food Sticking to Grate:
  • Ensure the grill is properly preheated.
  • Clean the grate thoroughly before use.
  • Lightly oil the grate before placing food, especially for non-seasoned grates.
• Rust Formation:
  • Ensure the grate is dried completely after washing.
  • For cast iron grates, regular seasoning helps prevent rust.
  • Store the grill in a dry environment or use a grill cover.

Specifications

Note: Dimensions and weight are approximate and may vary slightly. Always measure your existing grate to ensure proper fit.

Warranty Information

As an O.E.M. authorized and aftermarket replacement part, the warranty for the Char-Broil G432-001N-W1 Cooking Grate typically aligns with the original manufacturer's warranty policy for replacement parts. Specific warranty terms can vary. Please refer to the warranty documentation provided with your original Char-Broil grill or contact Char-Broil customer support directly for detailed warranty information regarding this replacement part.

Support

For further assistance, technical support, or inquiries regarding your Char-Broil G432-001N-W1 Cooking Grate Replacement Part, please contact Char-Broil customer service. You can typically find contact information on the official Char-Broil website or in your original grill's user manual.

Char-Broil Official Website: www.charbroil.com
