Introduction
Thank you for choosing the Sonneman Stix Collection 2770.16 LED Bath Bar. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.

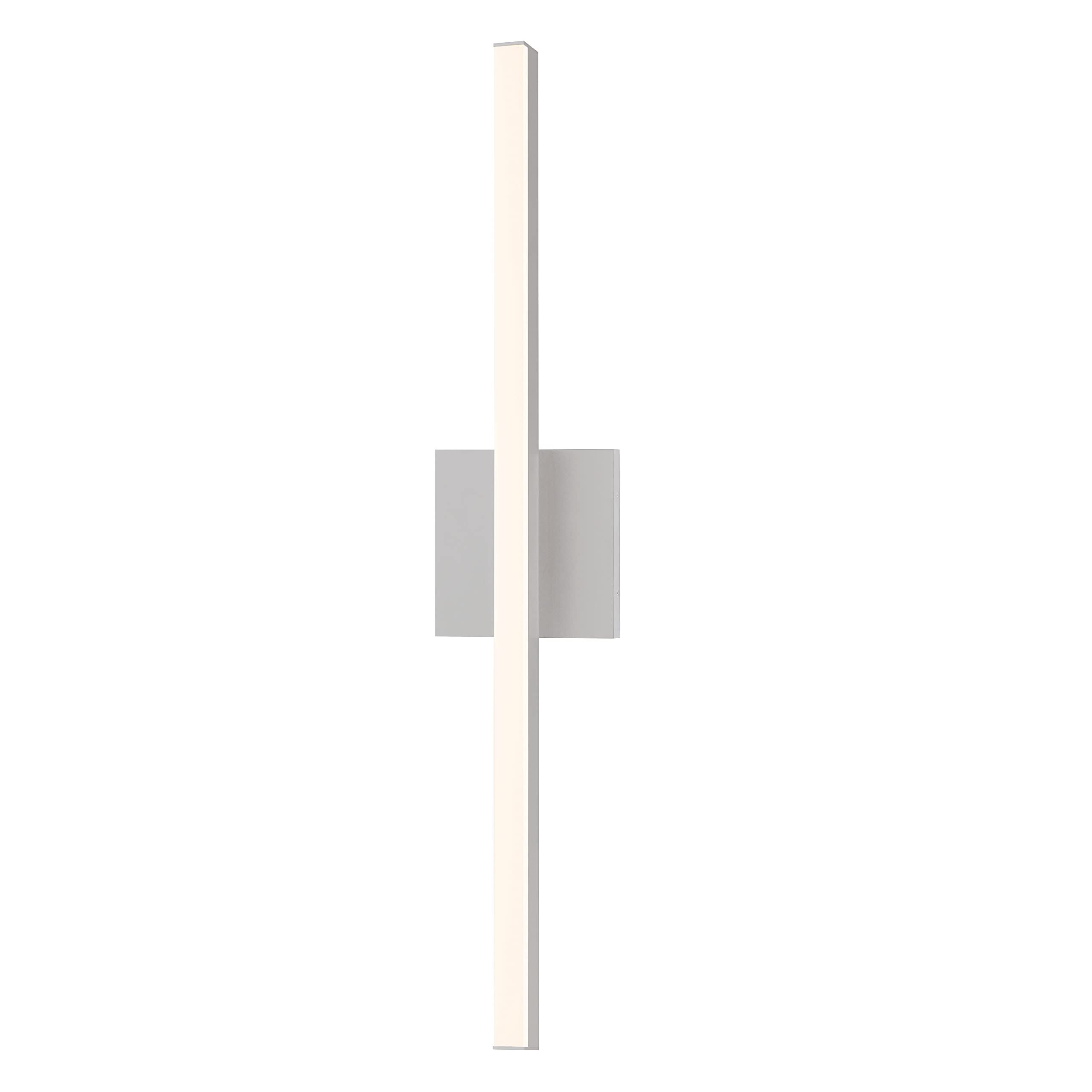

Image: Sonneman Stix Collection 2770.16 LED Bath Bar in Silver finish.
Important Safety Information
WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing. All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- Ensure the fixture is properly grounded.
- Do not install near any heat source.
- Do not exceed the recommended voltage (120 Volts AC).
- This product is for indoor use only.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Package Contents
Verify that all components are present before beginning installation.
- Sonneman Stix Collection 2770.16 LED Bath Bar (1 unit)
- Installation Hardware (screws, wire nuts, mounting bracket)
- Instruction Manual
Note: No additional items are included beyond the fixture and standard installation hardware.
Specifications
| Feature | Detail |
|---|---|
| Brand | Sonneman |
| Model Number | 2770.16 |
| Model Name | Stix |
| Color | Silver (Frosted Shade) |
| Material | Metal, Optical Acrylic |
| Style | Modern |
| Light Fixture Form | Vanity |
| Room Type | Bathroom, Bedroom |
| Indoor/Outdoor Usage | Indoor |
| Power Source | Corded Electric |
| Special Features | Dimmable |
| Control Method | Remote (if compatible dimmer switch is used) |
| Light Source | LED (Integrated) |
| Number of Light Sources | 1 |
| Voltage | 120 Volts (AC) |
| Light Color | Warm White |
| Wattage | 21 watts |
| Brightness | 1120 Lumens |
| Color Temperature | 3000 Kelvin |
| Mounting Type | Wall Mount, Semi Flush Mount |
| Required Assembly | Yes |
| Item Dimensions (L x W x H) | 1.5"L x 0.75"W x 24.75"H |
| Item Weight | 2 Pounds |
| UPC | 872681069337 |
| ADA Compliant | Yes |
Image: Technical drawing showing the dimensions of the Sonneman Stix Bath Bar.
Setup and Installation
Professional installation is recommended. Ensure power is disconnected at the circuit breaker before proceeding.
- Prepare the Mounting Location: Identify the desired location for the bath bar. This fixture can be installed horizontally or vertically. Ensure there is a standard electrical junction box available.
- Mount the Bracket: Secure the mounting bracket to the junction box using the provided screws. Ensure the bracket is firmly attached and level.
- Electrical Connections:
- Connect the fixture's ground wire (usually bare copper or green) to the house ground wire.
- Connect the fixture's neutral wire (usually white) to the house neutral wire.
- Connect the fixture's hot wire (usually black) to the house hot wire.
- Use appropriate wire nuts to secure all connections.
- Attach the Fixture: Carefully align the fixture with the mounting bracket and secure it using the provided screws. Ensure no wires are pinched during this step.
- Restore Power: Once the fixture is securely installed and all connections are checked, restore power at the circuit breaker.
Image: Example of the Sonneman Stix Bath Bar installed horizontally above a mirror.
Operating Instructions
The Sonneman Stix LED Bath Bar is designed for simple operation.
- Turning On/Off: Use a standard wall switch connected to the fixture to turn the light on or off.
- Dimming Function: This fixture is dimmable. To utilize the dimming feature, ensure you have installed a compatible LED dimmer switch (sold separately). Follow the dimmer switch manufacturer's instructions for operation.
Video: Sonneman Stix Bath Bar in operation, showcasing its modern design and illumination. This video is provided by Sonneman.
Care and Maintenance
To maintain the appearance and performance of your fixture:
- Cleaning: Always disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
- LEDs: The LED light source is integrated and not user-replaceable. Do not attempt to disassemble the fixture to replace LEDs.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. | Check circuit breaker and wall switch. Ensure all electrical connections are secure. |
| Light flickers or dims improperly. | Incompatible dimmer switch or loose wiring. | Ensure a compatible LED dimmer switch is used. Check all electrical connections for tightness. |
| Clicking sound after turning on/off. | Transformer noise (as reported in customer reviews). | This may be a characteristic of the internal transformer. If persistent or loud, contact customer support. |
| Insufficient light output. | Fixture size not suitable for the space. | Ensure the fixture's lumen output (1120 Lumens) is appropriate for the room size and desired brightness. Consider additional lighting if needed. |
Warranty Information
The Sonneman Stix Collection 2770.16 LED Bath Bar is backed by a 5-year limited manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty details, please refer to the official Sonneman website or contact customer support.
Customer Support
For technical assistance, replacement parts, or warranty inquiries, please contact Sonneman customer support:
- Website: Visit the Sonneman Store on Amazon
- Refer to the packaging or official Sonneman website for direct contact information (phone/email).
