Introduction
Thank you for choosing the Farm Innovators FB-80 3 Gallon Heated Flat Back Bucket. This product is designed to provide a reliable, ice-free water source for your animals in cold weather conditions. Please read this manual thoroughly before installation and operation to ensure safe and efficient use.
This heated bucket features a 70-watt heating element, a hide-away cord compartment, an anti-chew cord, and is thermostatically controlled to maintain water temperature above freezing.
Important Safety Information
- Always ensure the bucket is placed on a stable, level surface to prevent tipping.
- Do not immerse the bucket or its electrical components in water.
- Ensure the power cord is routed safely to prevent tripping hazards and animal interference.
- Only use with a properly grounded 120V AC outlet.
- Inspect the power cord and bucket for any damage before each use. Do not use if damaged.
- Unplug the unit when cleaning or when not in use.
- This product is intended for animal use only.
Setup Instructions
- Unpacking: Carefully remove the heated bucket from its packaging. Inspect for any shipping damage.
- Placement: Position the flat back of the bucket against a wall or sturdy fence post. Ensure the bucket is on a stable, level surface to prevent accidental spills or tipping by animals.
- Cord Management: Locate the hide-away cord compartment. Extend the anti-chew power cord from this compartment. Ensure the cord is fully extended and free from kinks.
- Filling: Fill the bucket with clean, fresh water. Do not overfill; leave some space from the rim.
- Power Connection: Plug the anti-chew power cord into a grounded 120V AC outdoor-rated electrical outlet. Ensure the outlet is protected from weather elements.

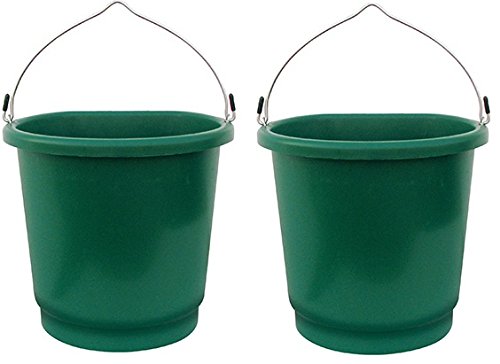

Image: The Farm Innovators FB-80 3 Gallon Heated Flat Back Bucket. This image shows the green bucket with its flat back design and metal handle.
Operating Instructions
- Once plugged in, the thermostatically controlled heating element will automatically activate when the water temperature drops near freezing (approximately 35°F / 2°C).
- The heater will turn off automatically once the water reaches a safe temperature above freezing.
- Regularly check the water level and refill as needed to ensure continuous operation and prevent the heating element from running dry.
- The anti-chew cord is designed to resist damage from animals, but periodic inspection is recommended.
Maintenance
- Daily Cleaning: Empty and clean the bucket daily with fresh water to prevent algae growth and maintain water quality for your animals.
- Periodic Inspection: Regularly inspect the bucket, power cord, and plug for any signs of wear, cracks, or damage. If any damage is found, discontinue use immediately and replace the unit.
- Storage: When not in use, especially during warmer months, unplug the bucket, clean it thoroughly, and store it in a dry, protected area away from direct sunlight and extreme temperatures. Ensure the cord is neatly stored in its compartment.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water is not heating. |
|
|
| Water is leaking. |
|
|
| Cord appears damaged. |
|
|
Specifications
- Model: FB-80
- Capacity: 3 Gallons
- Power: 70 Watts
- Voltage: 120V AC
- Control: Thermostatically Controlled (activates near 35°F / 2°C)
- Cord: Anti-Chew, Hide-Away Compartment
- Color: Green
- Item Weight: 8.4 Pounds
- Handle Material: Metal
Warranty and Support
For warranty information, technical support, or to inquire about replacement parts, please contact Farm Innovators directly. Keep your purchase receipt as proof of purchase.
Contact information for Farm Innovators can typically be found on their official website or product packaging.
