Introduction
This manual provides instructions for the installation, operation, and maintenance of the Richelieu Hardware BP391299903 Chaillot Collection Cabinet and Drawer Knob. This classic oval metal knob, featuring an antique iron finish, is designed for use in kitchens, bathrooms, and on various furniture pieces.
Figure 1: Top view of the Richelieu Hardware BP391299903 Chaillot Collection Cabinet Knob.
Setup and Installation
The Richelieu Hardware BP391299903 knob is designed for straightforward installation. Mounting hardware, specifically 8/32 screws, is included with each unit. These screws are a standard 1 inch (25 mm) length, quadrex, pan head type, suitable for most melamine thicknesses ranging from 5/8 inch to 3/4 inch (16 mm to 19 mm).
Installation Steps:
- Prepare the Surface: Ensure the cabinet door or drawer surface where the knob will be installed is clean and free of debris.
- Mark the Drilling Point: Carefully measure and mark the desired location for the knob on the cabinet or drawer. For consistent placement, consider using an installation template.
- Drill the Hole: Using an appropriate drill bit size for the included 8/32 screw, drill a pilot hole through the marked point. Ensure the hole is straight and clean.
- Attach the Knob: Insert the screw from the inside of the cabinet door or drawer through the drilled hole. Align the knob on the exterior side and thread it onto the screw.
- Tighten Securely: Hand-tighten the screw until the knob is firmly attached. Avoid over-tightening, which can damage the cabinet material or the knob.

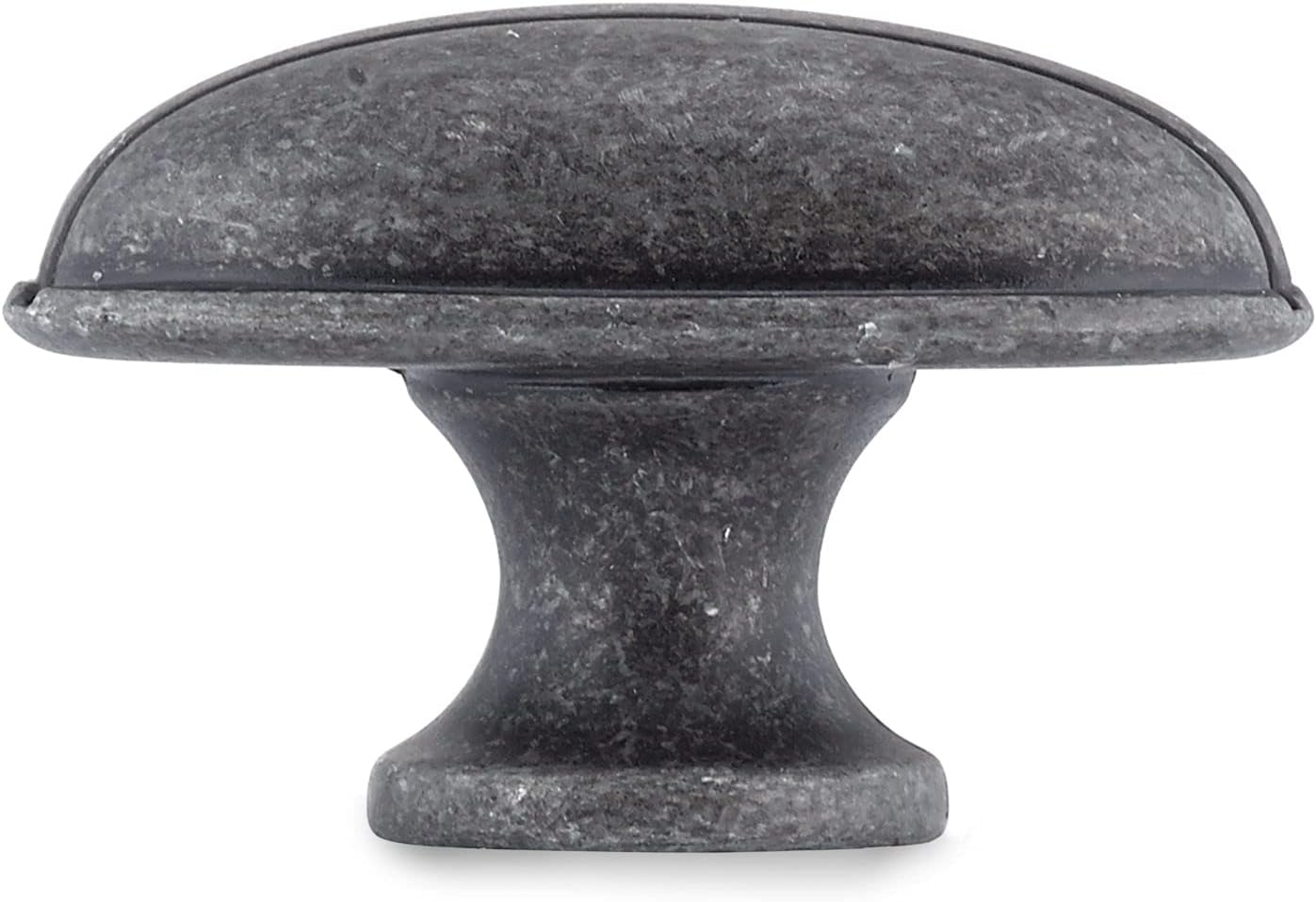

Figure 2: Side view of the cabinet knob, illustrating its profile and projection.
Visual Installation Guide:
For a visual demonstration of knob installation on a cabinet door, please refer to the video below. While the video may feature a different knob model, the installation principles and use of a template are applicable.
Video 1: General installation guide for cabinet knobs using a template. This video demonstrates marking and drilling for knob placement.
Operating Instructions
The Richelieu Hardware BP391299903 cabinet knob functions as a simple pull mechanism for opening cabinet doors and drawers. To operate, grasp the knob and pull to open, then push the door or drawer closed. No complex operation is required.
Maintenance
To maintain the appearance and longevity of your antique iron cabinet knob, follow these simple guidelines:
- Cleaning: Wipe the knob regularly with a soft, damp cloth. For more thorough cleaning, use a mild soap solution and immediately dry with a clean, soft cloth.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish of the knob.
- Periodic Inspection: Periodically check the tightness of the mounting screw. If the knob feels loose, gently re-tighten the screw from the inside of the cabinet or drawer.
Troubleshooting
- Knob is Loose: If the knob becomes loose, gently tighten the 8/32 screw from the interior side of the cabinet door or drawer. Avoid over-tightening.
- Knob is Difficult to Turn/Pull: This knob is designed for simple pull operation. If it is difficult to pull, ensure there are no obstructions to the cabinet door or drawer mechanism. The knob itself does not have moving parts that would cause resistance.
- Finish Damage: If the finish appears damaged, refer to the maintenance section to ensure proper cleaning methods are being used. Severe damage may require replacement.
Specifications
Detailed specifications for the Richelieu Hardware BP391299903 Chaillot Collection Cabinet Knob are provided below:
| Feature | Detail |
|---|---|
| Model Number | BP391299903 |
| Brand | Richelieu |
| Collection | Chaillot Collection |
| Material | Zamak (Metal) |
| Finish Type | Antique Iron |
| Color | Greys, Chromes, and Others (Antique Iron appearance) |
| Length x Width | 1 15/16 in (49 mm) x 15/16 in (24 mm) |
| Projection | 1 1/4 in (31 mm) |
| Handle Type | Knob |
| Shape | Novelty (Oval) |
| Included Components | 1 knob, 8/32 mounting screw |
| Item Weight | 0.2 Pounds |
| Unit Count | 1.0 Count |
| UPC | 773199277095, 698847886248 |
Figure 3: Technical drawing showing the dimensions of the cabinet knob.
Safety Information
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Warranty and Support
For information regarding product warranty, returns, or technical support, please contact Richelieu Hardware directly through their official website or customer service channels. Specific warranty details are not provided in this manual.
