Beyution VIZIO XUMO XRT500-3 TV Remote Control User Manual

Introduction

This manual provides comprehensive instructions for the Beyution VIZIO XUMO XRT500-3 TV Remote Control. This remote is designed for seamless operation with various VIZIO TV models, offering dedicated access to popular streaming services and a full QWERTY keyboard for enhanced functionality. Please read this manual carefully to ensure proper use and longevity of your remote control.

Compatible VIZIO TV Models:

• M-Series: M43-C1, M49-C1, M50-C1, M55-C2, M60-C3, M65-C1, M70-C3, M75-C1, M80-C3
• M-Series (Specific): M322I-B1, M422I-B1, M492I-B2, M502I-B1, M552I-B2, M602I-B3, M652I-B2, M702I-B3
• P-Series: P502UI-B1, P502UI-B1E, P552UI-B2, P602UI-B3, P652UI-B2, P702UI-B3
• Other: RS65-BL

Setup

1. Battery Installation

The Beyution VIZIO XUMO XRT500-3 remote control requires two AAA batteries (not included) for operation. Follow these steps to install the batteries:

1. Locate the battery compartment on the back of the remote control. The back of the remote features a full QWERTY keyboard and a removable cover for the battery compartment.
2. Gently slide the battery compartment cover downwards or press the latch and lift to open.
3. Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment. Incorrect insertion can prevent the remote from functioning.
4. Replace the battery compartment cover by sliding it back into place until it clicks securely.

Image: The back of the remote control, displaying the QWERTY keyboard and the battery compartment with the cover removed, ready for AAA battery insertion.

Once batteries are installed, the remote is ready for use. No additional programming is required for compatible VIZIO TV models.

Operating Instructions

This remote control features a dual-sided design: a standard TV remote on one side and a full QWERTY keyboard on the other. It operates using infrared (IR) technology.

Image: A comprehensive view of the remote control, showcasing both the primary TV control interface and the integrated QWERTY keyboard on the reverse side.

Front Side: TV Control Functions

The primary side of the remote provides standard television control buttons:

• Power Button: Turns the TV on or off.
• Input: Cycles through available input sources (HDMI, AV, etc.).
• Volume Up/Down (VOL): Adjusts the television's volume.
• Channel Up/Down (CH): Changes television channels.
• Navigation Pad (Up, Down, Left, Right, OK): Used for menu navigation and selection.
• Back: Returns to the previous screen or menu.
• Exit: Exits current menu or application.
• Menu: Accesses the TV's main menu.
• Info: Displays information about the current program or input.
• Guide: Opens the electronic program guide (if available).
• CC (Closed Captioning): Toggles closed captions on or off.
• Numeric Keypad (0-9): For direct channel entry.
• Dedicated App Buttons:
  • XUMO: Direct access to the XUMO streaming service.
  • NETFLIX: Direct access to the Netflix streaming service.
  • iHeart Radio: Direct access to the iHeart Radio application.

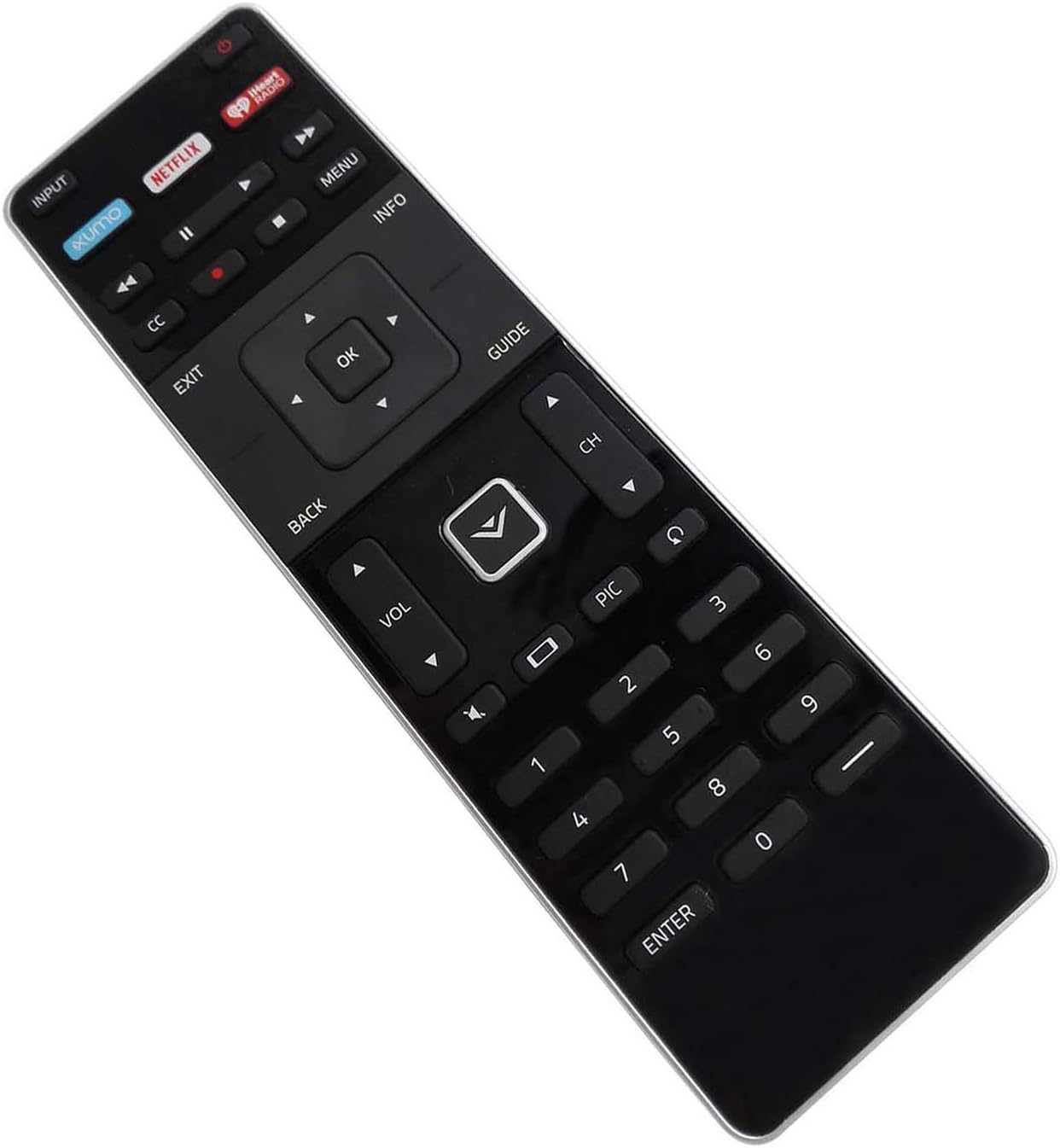

Image: The front side of the remote control, clearly showing the power button, input selector, volume and channel controls, navigation pad, and dedicated buttons for XUMO, Netflix, and iHeart Radio.

Back Side: QWERTY Keyboard

The reverse side of the remote features a full QWERTY keyboard, useful for entering text in smart TV applications, search fields, or web browsers. To use the keyboard, simply flip the remote over. The remote automatically detects which side is facing up and activates the corresponding functions.

• Typing: Use the individual keys to input letters, numbers, and symbols.
• CAPS/SHIFT: Toggles uppercase letters or accesses secondary key functions.
• TAB: Moves between input fields.
• ALT: Accesses alternative characters or functions.
• DEL: Deletes characters.
• ENTER: Confirms input or selection.
• SPACE: Inserts a space.

Maintenance

Cleaning the Remote

To maintain the remote's appearance and functionality, clean it periodically:

• Use a soft, dry cloth to wipe the surface of the remote.
• For stubborn dirt, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid excessive moisture.
• Do not use harsh chemicals, solvents, or abrasive cleaning pads, as these can damage the remote's finish or internal components.

Battery Replacement

Replace batteries when the remote's response becomes sluggish or it stops functioning. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries, as this can lead to leakage or damage.

Dispose of used batteries according to local regulations.

Troubleshooting

If you experience issues with your remote control, refer to the following common problems and solutions:

• Remote is not responding:
  • Ensure there is a clear line of sight between the remote and the TV's IR receiver.
  • Check the batteries. Replace them if they are old or depleted.
  • Verify that the batteries are inserted with the correct polarity (+/-).
  • If the remote has been dropped or damaged, internal components may be affected.
• Specific buttons are not working:
  • Clean around the unresponsive buttons to remove any debris that might be obstructing them.
  • If only certain buttons fail, it might indicate a specific internal fault.
• Keyboard is not responding:
  • Ensure the remote is flipped to the keyboard side. The remote automatically switches modes.
  • Check if the application you are using on the TV supports keyboard input.

If troubleshooting steps do not resolve the issue, please contact customer support.

Specifications

Support

For any questions or concerns regarding your Beyution VIZIO XUMO XRT500-3 remote control, please do not hesitate to contact our customer support. We are committed to assisting you with any issues you may encounter.

Please refer to your product packaging or retailer's website for specific contact information.
