Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Hipa C1U-K54A Carburetor. This carburetor is designed as a replacement part for various 2-cycle Mantis and Echo tillers, cultivators, and hedge trimmers.
Compatible Models Include:
- Mantis Tiller/Cultivator: 7225, 7222M, 7222, 7222E, 7924, 7920, 7230, 7234, 7240, Mantis 7222 SV-5C
- Echo Tiller/Hedge Trimmer: TC-210, TC210, TC-2100, TC-210i, HC1500, HC-1500
- Engine Models: SV-5C, SV-4B, SV-4B(H), SV-5C/1, SV-5C/2, SV-5Ci, SV-5Ci/2, SV-5H/2, SV-6, SV-6/1, SV-6/2
The Hipa C1U-K54A Carburetor replaces original part numbers such as C1U-K82, C1U-K54, C1U-K17, C1U-K27, C1U-K27A, C1U-K27B, C1U-K46, Echo A021001093, A021001090, A021001091, A021001092, and others.
Product Overview
The Hipa C1U-K54A Carburetor is an all-in-one kit designed to restore optimal engine performance. It is constructed from quality materials including brass components, composite rubber diaphragms, and an anodized aluminum carburetor body, ensuring resistance to heat, corrosion, and wear.
Image: Hipa C1U-K54A Carburetor kit shown with a Mantis tiller in the background, highlighting its application.
Image: The complete Hipa C1U-K54A Carburetor All-in-One Kit, including the carburetor, air filters, spark plug, primer bulbs, gaskets, fuel filter, tubes, grommet, and vent.
Setup and Installation
Before beginning installation, ensure the engine is cool and disconnected from any power source. It is recommended to wear appropriate safety gear, such as gloves and eye protection.
- Prepare the Work Area: Ensure a clean, well-lit workspace. Gather all necessary tools.
- Remove Old Carburetor:
- Carefully disconnect the fuel lines, throttle cable, and any other connections to the old carburetor.
- Remove the mounting bolts securing the carburetor to the engine.
- Remove the old carburetor and any old gaskets. Clean the gasket surfaces thoroughly.
- Install New Carburetor:
- Place new gaskets on the engine and carburetor mounting surfaces.
- Mount the new Hipa C1U-K54A Carburetor, ensuring proper alignment. Secure with mounting bolts, but do not overtighten.
- Reconnect the throttle cable, ensuring it moves freely without binding.
- Connect the new fuel lines from the kit to the carburetor and fuel tank. Ensure correct routing for fuel inlet and return lines.
- Replace Air Filter and Spark Plug:
- Replace the old air filter with a new one from the kit.
- Remove the old spark plug and install the new spark plug provided in the kit.
The Hipa C1U-K54A Carburetor arrives factory precisely tuned, requiring no adjustment for most applications. It is designed to be "ready to run" upon installation.
Image: A Hipa C1U-K54A Carburetor shown installed on a tiller, illustrating its "Arrives Ready to Run" feature with factory tuning.
Video: An official Hipa video demonstrating the C1U-K54A Carburetor for Mantis Tiller Cultivator, showcasing its features and compatibility.
Operating Instructions
After successful installation, follow your equipment's manufacturer guidelines for starting and operating your tiller or cultivator. The Hipa C1U-K54A Carburetor is designed to provide:
- Quick Start: Facilitates easier engine ignition.
- Fast Accelerate: Ensures responsive throttle control.
- Stable RPM: Maintains consistent engine speed during operation.
- Low Fuel Consumption: Optimizes fuel efficiency.
Image: Visual representation of the Hipa C1U-K54A Carburetor's performance benefits, including quick start, fast acceleration, stable RPM, and low fuel consumption.
Maintenance
Regular maintenance of your carburetor and associated components is crucial for prolonging the life of your equipment and ensuring consistent performance. The Hipa C1U-K54A Carburetor is built with durability in mind:
- Quality Materials: Constructed with brass components, composite rubber diaphragms, and an anodized aluminum body for resistance to heat, corrosion, and wear.
- Wet Flow Tested: Each carburetor undergoes wet flow testing to simulate actual engine conditions, ensuring dependable engine performance.
Periodically inspect fuel lines for cracks or leaks, and replace the air filter and spark plug as needed to maintain optimal engine health.
Image: A Hipa C1U-K54A Carburetor shown in a testing environment, illustrating the wet flow testing process to ensure dependable engine performance.
Troubleshooting
If your tiller or cultivator experiences issues after carburetor installation, consider the following common problems and solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, clogged fuel filter, faulty spark plug, incorrect choke setting. | Check fuel level, replace fuel filter, inspect/replace spark plug, adjust choke. |
| Starts then stalls | Improper fuel mixture, clogged fuel lines, air leak. | Verify fuel line connections, check for air leaks around carburetor, ensure proper fuel-oil mix. |
| Runs rough or blows black smoke | Rich fuel mixture, dirty air filter. | Clean or replace air filter. The carburetor is factory tuned, but minor adjustments to the air-fuel ratio screws may be needed in specific conditions (refer to "Tunable Air-Fuel Ratio" image). |
| Engine idles but dies at full throttle | Lean fuel mixture at high speed, clogged high-speed jet. | Check for obstructions in fuel system, ensure high-speed screw is correctly set (if adjustable). |
| Leaks gas from air filter | Float needle valve issue, carburetor gasket leak. | Inspect float needle valve for debris, ensure carburetor gaskets are properly seated. |

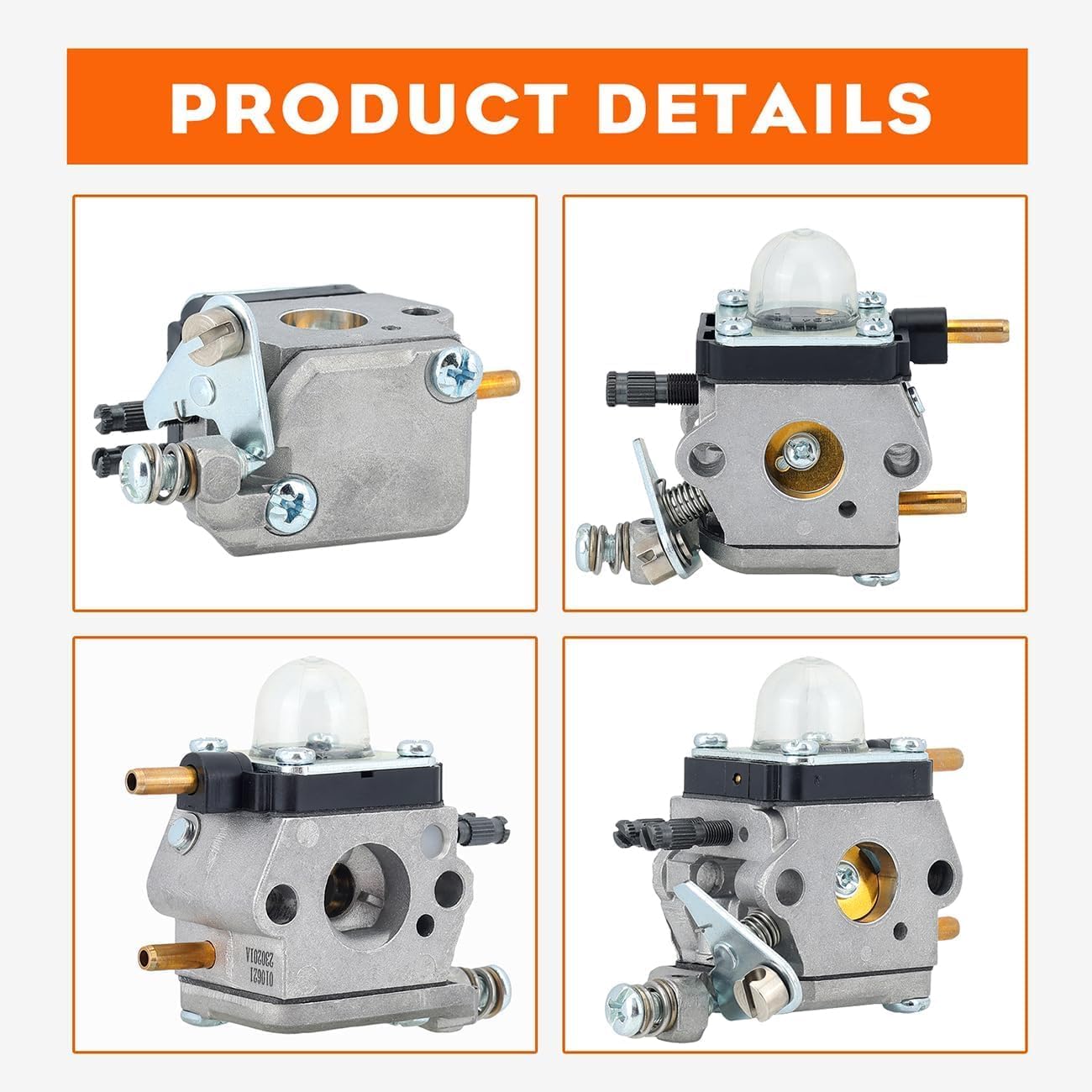

Image: Detailed view of the Hipa C1U-K54A Carburetor, highlighting the high speed screw, low speed screw, idle speed screw, impulse port, fuel inlet line, and fuel return line for potential adjustments.
Specifications
| Feature | Detail |
|---|---|
| Brand | Hipa |
| Model Number | C1U-K54A |
| Power Source | Gasoline (2-cycle engine) |
| Material | Brass, Anodized Aluminum, Composite Rubber Diaphragms |
| Item Weight | 0.39 Pounds |
| Mounting Hole Distance (Center to Center) | 31mm |
| Throttle Bore Diameter | 12.7mm |
| Choke Bore Diameter | 15.8mm |
| Venturi Diameter | 8.5mm |
| Fuel Inlet Line Diameter | 4mm |
| Fuel Return Line Diameter | 4mm |
Warranty and Support
Hipa products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the product packaging or contact Hipa customer service directly. Ensure you retain your proof of purchase for any warranty claims.
For further assistance, visit the official Hipa store or contact their support channels.
