YATO 07042 Grease Gun Instruction Manual

1. Introduction

Thank you for choosing the YATO 07042 Grease Gun. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your new grease gun. Please read these instructions carefully before use and keep them for future reference.

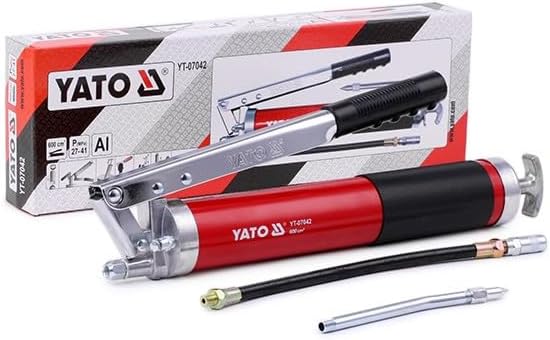

The YATO 07042 grease gun, shown with its flexible hose and rigid pipe attachments, ready for use.

2. Safety Information

Always observe the following safety precautions when operating the grease gun:

• Wear appropriate personal protective equipment (PPE), including safety glasses or goggles, to protect against grease splashes.
• Read and understand all instructions before operating the grease gun.
• Keep hands and fingers clear of moving parts, especially the plunger and lever mechanism.
• Use only the recommended type of grease for your application. Mixing incompatible greases can cause damage or malfunction.
• Do not exceed the maximum operating pressure of the grease gun (27-41 MPa).
• Ensure connections are secure before applying pressure to prevent leaks or disconnections.
• Store the grease gun safely when not in use, out of reach of children and in a clean, dry environment.
• Never point the grease gun nozzle at yourself or others. High-pressure grease injection can cause serious injury.

3. Setup and Loading Grease

Proper loading of grease is crucial for efficient operation. The YATO 07042 grease gun can be loaded using a standard grease cartridge or by bulk filling.

3.1 Loading a Grease Cartridge

1. Unscrew the barrel from the head of the grease gun.
2. Pull the plunger rod all the way back and lock it into place by rotating the T-handle.
3. Remove the caps from both ends of a new 600ml grease cartridge.
4. Insert the cartridge into the barrel, ensuring it fits snugly.
5. Re-attach the barrel to the grease gun head, screwing it on tightly.
6. Release the plunger rod by rotating the T-handle. Push the rod slightly to ensure it makes contact with the grease.

3.2 Bulk Filling

1. Unscrew the barrel from the head of the grease gun.
2. Pull the plunger rod all the way back and lock it into place by rotating the T-handle.
3. Using a spatula or similar tool, carefully fill the barrel with bulk grease. Ensure no air pockets are trapped.
4. Re-attach the barrel to the grease gun head, screwing it on tightly.
5. Release the plunger rod by rotating the T-handle. Push the rod slightly to ensure it makes contact with the grease.

3.3 Priming the Grease Gun

After loading, it may be necessary to prime the gun to remove any air pockets and ensure a steady flow of grease.

• Point the nozzle into a waste container.
• Operate the lever several times until grease begins to flow consistently.
• If grease does not flow, slightly loosen the barrel from the head to allow trapped air to escape, then re-tighten and try again.

This diagram provides a visual guide for loading grease, including inserting a cartridge, filling manually, and priming the gun.

4. Operation

Once the grease gun is loaded and primed, it is ready for operation.

1. Attach the appropriate fitting: Select either the flexible hose or the rigid pipe and securely screw it onto the grease gun head.
2. Connect to the grease nipple: Firmly press the coupler end of the hose or pipe onto the grease nipple of the component to be lubricated. Ensure a tight seal.
3. Operate the lever: Squeeze the operating lever repeatedly to pump grease into the component. Continue until the desired amount of grease has been dispensed or resistance is felt.
4. Disconnect: To remove the coupler from the grease nipple, tilt it slightly and pull it off. Some resistance is normal due to the pressure.

This image highlights the threaded connections for both the flexible hose and the rigid pipe, demonstrating how they attach to the grease gun.

A detailed view of the grease gun's head, showing the connection point for the hose or rigid pipe, and the robust construction.

5. Maintenance

Regular maintenance ensures the longevity and reliable performance of your grease gun.

• Cleaning: After each use, wipe down the exterior of the grease gun to remove any excess grease or dirt. Keep the nozzle and coupler clean to prevent contamination of grease points.
• Storage: Store the grease gun in a clean, dry place, away from extreme temperatures and direct sunlight.
• Check for Leaks: Periodically inspect the grease gun for any signs of grease leakage, especially around connections and seals. Tighten connections as needed.
• Coupler Maintenance: If the coupler becomes difficult to attach or remove from grease nipples, it may need cleaning or replacement.

6. Troubleshooting

Here are some common issues and their solutions:

7. Specifications

Key technical specifications for the YATO 07042 Grease Gun:

• Model Number: YT-07042
• Manufacturer: Yato
• Capacity: 600 ml
• Operating Pressure: 27-41 MPa
• Product Dimensions (L x W x H): 25 x 8 x 4 cm
• Weight: 1.69 Kilograms
• Quantity of Items: 1
• Battery(ies) / Cell(s) included: No
• Battery(ies) / Cell(s) required: No

8. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. YATO is committed to providing quality tools and support.

Spare parts availability: Information regarding spare parts for this specific model is currently unavailable. Please contact your supplier for further assistance.

For technical support or inquiries, please visit the official YATO website or contact their customer service department.
