HONEYSEW Upper Blade Serger Instruction Manual

1. Product Overview

This document provides instructions for the HONEYSEW Upper Blade Serger, model number 141000375. This component is a replacement upper blade designed for specific serger machines to ensure precise fabric cutting during sewing operations.

Compatible Serger Models:

• EUROPRO SERGER MODELS: EP550
• WHITE SERGER MODELS: 1500, 1600, 1634, 4500

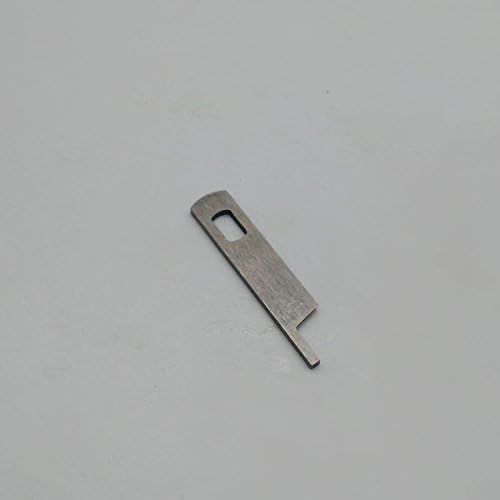

Image of the HONEYSEW Upper Blade Serger, model #141000375. This is a metal blade component, approximately 3.8 inches long, designed for cutting fabric during serging operations.

2. Setup and Installation

Proper installation of the upper blade is crucial for optimal serger performance and safety. Always refer to your serger machine's specific instruction manual for detailed blade replacement procedures, as steps may vary slightly between models.

1. Safety First: Before attempting any installation or maintenance, ensure your serger machine is turned off and unplugged from the power outlet.
2. Access the Blade Area: Open the front cover or access panel of your serger to expose the blade mechanism.
3. Remove Old Blade: Locate the screws holding the existing upper blade in place. Using an appropriate screwdriver, carefully loosen and remove these screws. Gently extract the old blade. Handle with care as blades are sharp.
4. Clean Area: While the blade is removed, it is an opportune time to clean any lint or debris from the blade area using a small brush or vacuum.
5. Install New Blade: Position the new HONEYSEW Upper Blade (model 141000375) into the blade holder. Ensure it is seated correctly and aligned with the lower blade according to your serger's specifications.
6. Secure Blade: Reinsert and tighten the screws to firmly secure the new upper blade. Do not overtighten, but ensure it is snug to prevent movement during operation.
7. Test Alignment: Manually turn the handwheel of your serger to observe the blade's movement and ensure it clears all components and aligns properly with the lower blade.
8. Close Covers: Close all access panels and covers.
9. Power On and Test: Plug in your serger, turn it on, and perform a test stitch on a scrap piece of fabric to verify proper cutting action.

3. Operating Instructions

The HONEYSEW Upper Blade is an integral part of your serger's cutting mechanism. Once correctly installed, its operation is directly controlled by the serger machine itself. There are no separate operating controls for the blade.

• Ensure the blade is sharp and correctly aligned for clean, consistent cuts.
• Refer to your serger machine's manual for instructions on how to engage or disengage the cutting function, if applicable.
• Always use the appropriate fabric and thread tension settings on your serger for optimal cutting and stitching results.

4. Maintenance

Regular maintenance of your serger blade ensures longevity and consistent performance.

• Cleaning: Periodically clean the blade and surrounding area to remove lint and fabric fibers that can accumulate and hinder cutting performance. Use a small brush or compressed air.
• Inspection: Regularly inspect the blade for signs of dullness, nicks, or damage. A dull blade can lead to frayed edges, skipped stitches, or difficulty cutting fabric.
• Replacement: Replace the upper blade when it becomes dull or damaged. The frequency of replacement depends on usage and the types of fabrics being cut. A sharp blade is essential for professional-looking serged seams.

5. Troubleshooting

If you experience issues related to fabric cutting, consider the following troubleshooting steps:

• Fabric Not Cutting Cleanly:
  • Check if the upper blade is dull. If so, replace it.
  • Ensure the upper and lower blades are correctly aligned. Refer to your serger manual for alignment instructions.
  • Verify that the blade is securely fastened and not loose.
• Frayed Edges:
  • A dull blade is a common cause of frayed edges. Replace the blade.
  • Incorrect tension settings on your serger can also contribute to poor edge finish.
• Machine Jams or Stops:
  • Ensure no fabric scraps or lint are obstructing the blade mechanism.
  • Confirm the blade is installed correctly and not interfering with other machine parts.

For persistent issues, consult your serger machine's comprehensive troubleshooting guide or contact a qualified service technician.

6. Specifications

7. Warranty and Support

Specific warranty information for the HONEYSEW Upper Blade (model 141000375) is not provided in this document. Please retain your purchase receipt and contact the retailer or HONEYSEW directly for details regarding warranty coverage.

For technical support or further assistance with your HONEYSEW product, please refer to the contact information provided by the manufacturer or your original point of purchase. For issues related to your serger machine, consult its dedicated instruction manual or the machine manufacturer's support channels.
