1. Product Overview
This manual provides instructions for the Teknix Kick Start Pawl, an essential component for the kick start mechanism of compatible scooters. This part is designed as a direct replacement for the original equipment.

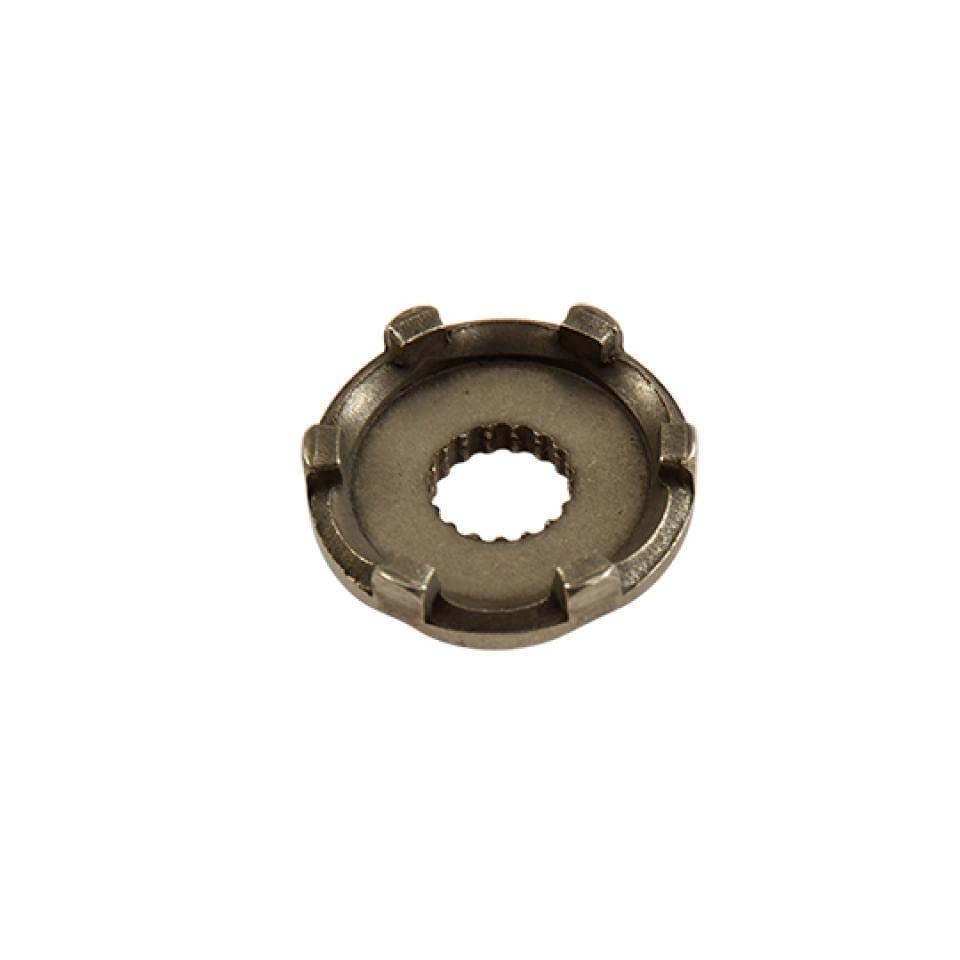

Image: Teknix Kick Start Pawl. This metallic circular component features internal splines for shaft engagement and external lugs for interacting with the kick start gear.
The Teknix Kick Start Pawl is a new, original-type component. It is delivered exactly as depicted in the product image, ensuring you receive the correct part for your scooter's kick start system.
2. Specifications
| Brand | Teknix |
| Model Number | Spirit |
| Manufacturer Serial Number | 01704 |
| ASIN | B01E2AE41E |
| Part Type | Kick Start Pawl |
3. Compatibility
This Teknix Kick Start Pawl (Model 01704) is specifically designed for the following scooter model:
- MBK 50 Spirit Scooter (Years: 2004 to 2011)
Ensure your scooter's make, model, and year match the compatibility information provided to guarantee proper fitment and function. If you are unsure about compatibility, consult a qualified mechanic or refer to your scooter's service manual.
4. Installation
Warning: Scooter repair and maintenance can be complex. If you are not confident in your mechanical abilities, it is highly recommended to seek professional assistance for installation to prevent damage to the part or your scooter, and to ensure your safety.
General Installation Steps:
- Preparation: Ensure the scooter is on a stable stand and the engine is cool. Disconnect the battery if working near electrical components.
- Access the Kick Start Mechanism: This typically involves removing the transmission cover or specific engine casing components to expose the kick start assembly. Refer to your scooter's service manual for exact procedures and fastener locations.
- Remove Old Pawl: Carefully disassemble the kick start mechanism. The pawl is usually located on the kick start shaft or within the gear assembly. Note the orientation and position of all components as you remove them.
- Inspect Components: While the mechanism is open, inspect other related parts such as the kick start spring, gears, and shaft for wear or damage. Replace any worn components as necessary.
- Install New Pawl: Position the new Teknix Kick Start Pawl (01704) in the correct orientation. Ensure it engages properly with the kick start gear and shaft.
- Reassemble: Reassemble the kick start mechanism and transmission cover, ensuring all fasteners are tightened to the manufacturer's specifications. Apply thread-locking compound if recommended by the service manual.
- Test Functionality: Before riding, manually operate the kick start lever several times to ensure smooth engagement and retraction. Check for any unusual noises or binding.
Always consult your scooter's specific service manual for detailed, model-specific instructions and torque specifications.
5. Operation
The kick start pawl is an internal component of your scooter's kick start system. Its function is to engage with the kick start gear when the kick start lever is depressed, transferring the force to the engine's crankshaft to initiate rotation and start the engine. Once the engine starts or the lever is released, the pawl disengages, allowing the kick start lever to return to its resting position.
Proper operation of the kick start pawl is crucial for reliable manual engine starting. If the kick start lever slips, jams, or does not return correctly, it may indicate an issue with the pawl or other components within the kick start mechanism.
6. Maintenance
While the kick start pawl itself requires minimal direct maintenance once installed, regular inspection of the entire kick start mechanism is recommended as part of your scooter's routine service schedule.
- Periodic Inspection: During routine transmission or engine maintenance, inspect the kick start pawl and associated gears for signs of wear, chipping, or deformation.
- Lubrication: Ensure that the kick start shaft and pawl pivot points are adequately lubricated with appropriate grease or oil as specified in your scooter's service manual. This prevents premature wear and ensures smooth operation.
- Cleanliness: Keep the kick start mechanism free from dirt, debris, and corrosion, which can impede its function.
Addressing minor issues promptly can prevent more significant damage to the kick start system.
7. Troubleshooting
If you experience issues with your scooter's kick start system after installing the new pawl, consider the following common problems and potential solutions:
- Kick Start Lever Slips:
- Cause: Worn kick start pawl (if not replaced), worn kick start gear, or incorrect installation of the new pawl.
- Solution: Re-inspect the pawl and gear for wear. Ensure the pawl is correctly seated and engaging.
- Kick Start Lever Jams or Sticks:
- Cause: Incorrect assembly, lack of lubrication, or a damaged kick start spring.
- Solution: Disassemble and reassemble the mechanism, ensuring all parts are correctly positioned and lubricated. Check the kick start return spring for proper tension and condition.
- Kick Start Lever Does Not Return:
- Cause: Damaged or dislodged kick start return spring, excessive friction due to lack of lubrication, or binding components.
- Solution: Inspect the return spring. Lubricate all moving parts. Check for any obstructions or misaligned components.
For persistent issues, it is advisable to consult a professional scooter mechanic.
8. Warranty and Support
Specific warranty information for the Teknix Kick Start Pawl (Model 01704) is not provided in this manual. For details regarding warranty coverage, terms, and conditions, please refer to the product packaging, contact the retailer from whom you purchased the item, or visit the official Teknix website.
For technical support or further assistance with this product, please contact your authorized Teknix dealer or the retailer where the purchase was made. Always provide your product model number (01704) and any relevant purchase details when seeking support.
