1. Important Safety Information
Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other hazards that can cause injury or property damage.
- WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installing or servicing.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- This fixture is intended for indoor use only.
- Do not attempt to alter the fixture or its components.
- Handle the fixture with care to avoid damage.
2. Package Contents
Verify that all components are present before proceeding with installation.
- Hubbardton Forge Quad Large LED Sconce Fixture (1)
- Mounting Hardware Kit (1)
- Instruction Manual (1)

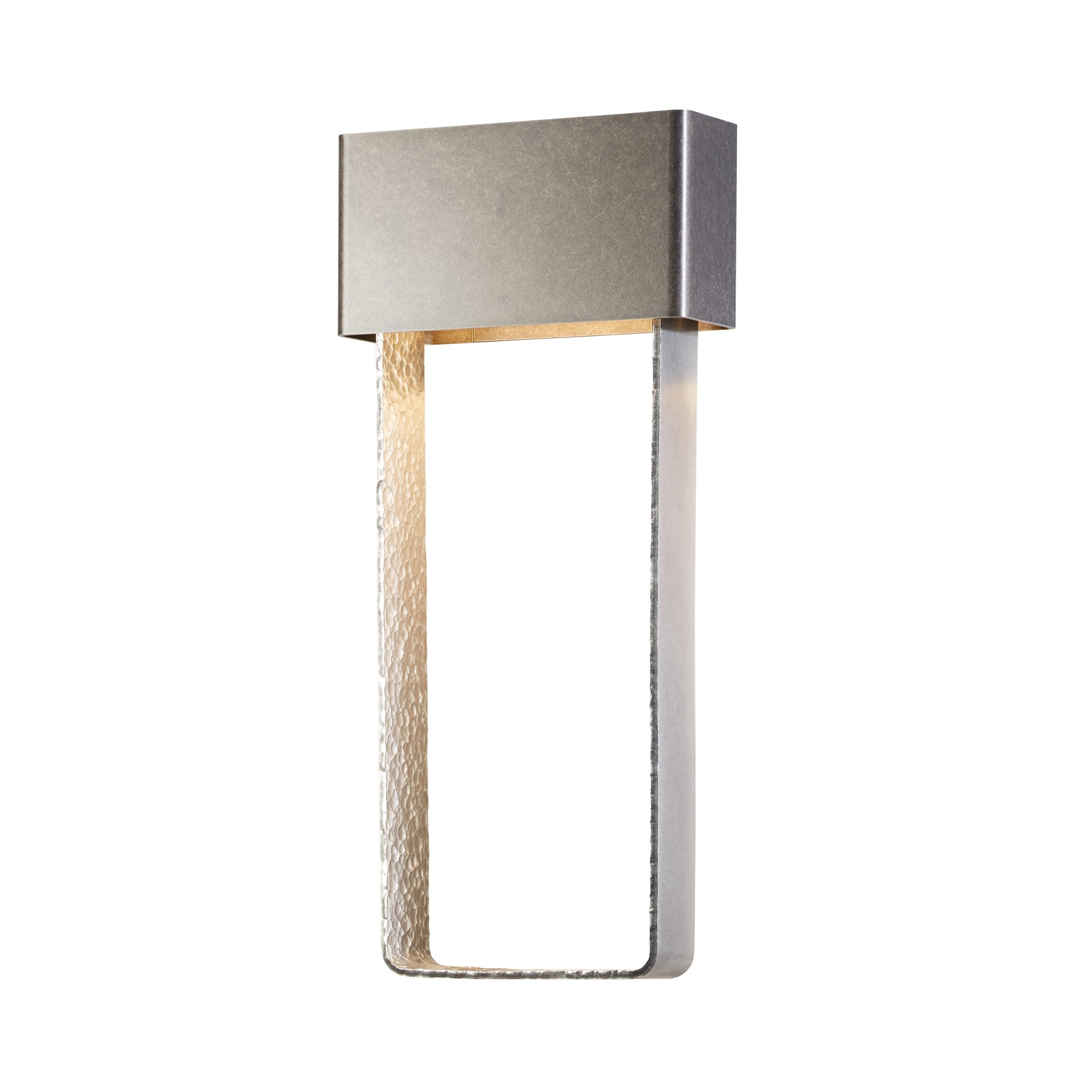

Image: The Hubbardton Forge Quad Large LED Sconce in Burnished Steel, showcasing its minimalist design and integrated LED light source.
3. Tools Required (Not Included)
- Phillips Head Screwdriver
- Flat Head Screwdriver
- Wire Strippers
- Electrical Tape
- Pliers
- Voltage Tester (recommended)
4. Setup and Installation
Professional installation by a qualified electrician is highly recommended.
- Turn Off Power: Locate the circuit breaker or fuse box that supplies power to the wall switch controlling the fixture location. Turn off the power completely. Verify power is off using a voltage tester.
- Prepare Mounting Surface: Ensure the existing electrical junction box is securely mounted in the wall.
- Attach Mounting Bracket: Secure the fixture's mounting bracket to the junction box using the screws provided in the hardware kit. Ensure the bracket is level and firmly attached.
- Make Electrical Connections: Carefully connect the fixture's wires to the corresponding wires from the junction box. Use wire nuts (not included) to secure connections.
- Connect the green or bare copper ground wire from the fixture to the house ground wire.
- Connect the white (neutral) wire from the fixture to the house white (neutral) wire.
- Connect the black (hot) wire from the fixture to the house black (hot) wire.
Wrap electrical tape around the wire nuts to ensure a secure connection.
- Mount the Fixture: Carefully align the fixture with the mounting bracket and secure it in place using the provided screws. Ensure no wires are pinched during this process.
- Restore Power: Once the fixture is securely mounted and all connections are made, restore power at the circuit breaker or fuse box.
- Test Operation: Turn on the wall switch to verify the fixture is functioning correctly.
5. Operating Instructions
The Hubbardton Forge Quad Large LED Sconce is designed for simple operation. Once properly installed and powered, the integrated LED light source will illuminate when the connected wall switch is turned to the 'ON' position.
- On/Off: Use the standard wall switch connected to the fixture to turn the light on or off.
- Dimming: If a compatible LED dimmer switch is installed, the light output can be adjusted. Refer to your dimmer switch's instructions for proper operation.
6. Maintenance
This LED sconce requires minimal maintenance.
- Cleaning: To clean the fixture, ensure power is off at the wall switch. Use a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- LED Light Source: The LED light source is integrated and not user-replaceable. It is designed for a long operational life.
- Inspection: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
Image: A close-up view of different metal textures and finishes, representative of the craftsmanship and material quality used in Hubbardton Forge products.
7. Troubleshooting
If the fixture is not operating as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture | Check circuit breaker/fuse. Ensure wall switch is ON. Verify wiring connections. |
| Light flickers | Loose wiring connection or incompatible dimmer | Turn off power and check all wire connections. If using a dimmer, ensure it is LED compatible. |
| Fixture hums | Incompatible dimmer switch | Replace with a high-quality, LED-compatible dimmer switch. |
If troubleshooting steps do not resolve the issue, contact a qualified electrician or Hubbardton Forge customer support.
8. Specifications
- Model Number: 205427D-VP-08-NO
- Brand: Hubbardton Forge
- Light Source Type: Integrated LED
- Shade Material: Metal
- Finish: Burnished Steel
- Item Weight: 5.8 Pounds
- Product Dimensions: 9.5 x 9.5 x 20.4 inches
- Included Components: Wall Sconce Fixture
- ADA Compliance: Meets ADA compliance for wall sconces
9. Warranty and Support
This Hubbardton Forge fixture comes with a Lifetime Limited Warranty when installed in a residential setting. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or further assistance, please contact Hubbardton Forge customer service directly. Keep your purchase receipt as proof of purchase.
Contact Information: Refer to the official Hubbardton Forge website or product packaging for the most current contact details.
