Otech Compatible Battery for Nikon COOLPIX L21 Instruction Manual

1. Introduction and Overview

This manual provides essential information for the safe and effective use of your Otech compatible NiMH rechargeable battery, model 1N150X2-13080976. This battery is designed for use with devices requiring AA-sized NiMH batteries, specifically compatible with the Nikon COOLPIX L21 camera model. It offers optimal duration and low self-discharge for reliable performance.

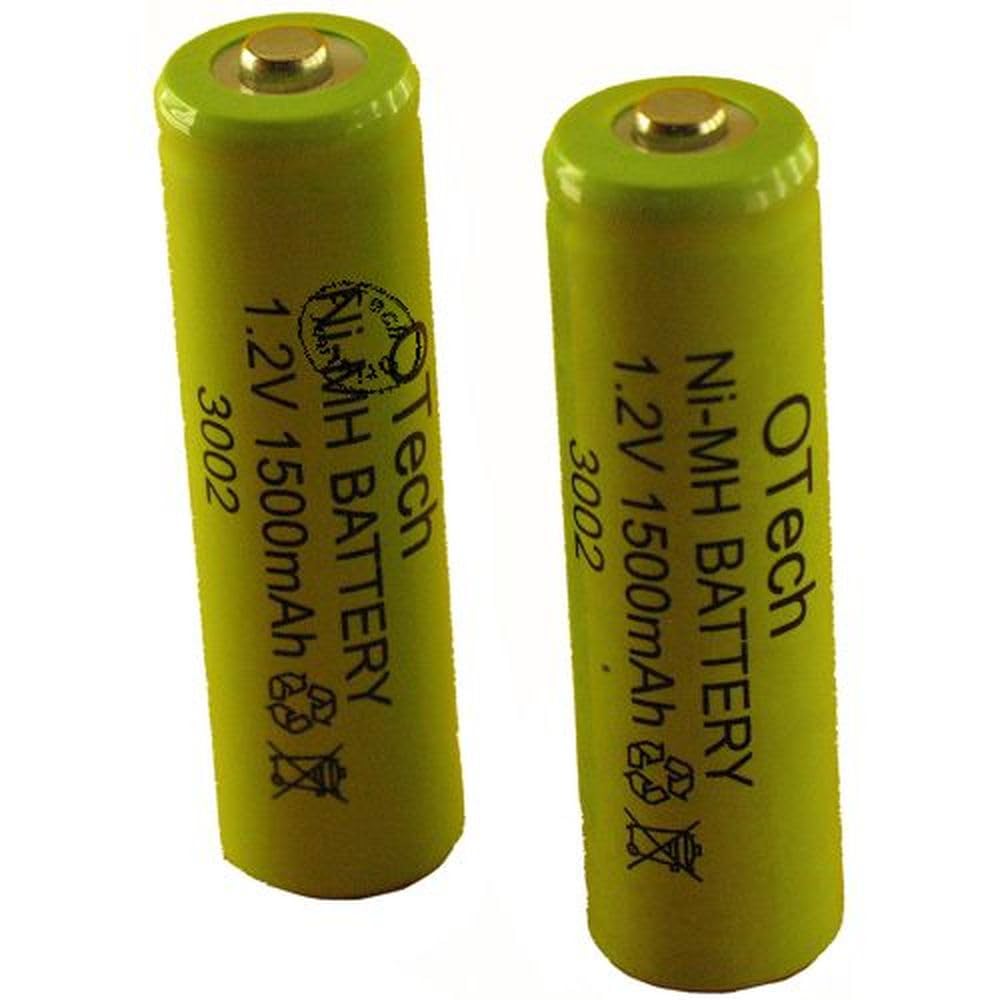

Figure 1: Two Otech compatible NiMH rechargeable batteries. This image shows two Otech rechargeable batteries, highlighting their design and form factor.

2. Setup

2.1 Initial Charging

Before first use, fully charge the batteries. NiMH batteries may not come fully charged from the factory. Use a compatible NiMH battery charger. Refer to your charger's instructions for proper charging procedures. A full charge typically takes several hours depending on the charger and battery capacity.

2.2 Inserting Batteries into Device

1. Ensure your device (e.g., Nikon COOLPIX L21 camera) is powered off.
2. Locate the battery compartment, usually on the bottom or side of the device.
3. Open the battery compartment cover.
4. Insert the Otech batteries according to the polarity indicators (+ and -) inside the compartment. Incorrect insertion can damage the device or batteries.
5. Close the battery compartment cover securely.

3. Operating Instructions

3.1 General Use

Once properly installed and charged, the Otech batteries will power your compatible device. The performance and duration will vary based on the device's power consumption and usage patterns. For optimal performance, ensure batteries are fully charged before each significant use.

3.2 Recharging

When the device indicates low battery power, remove the batteries and recharge them using a dedicated NiMH battery charger. Avoid completely draining the batteries repeatedly, as this can reduce their overall lifespan. It is recommended to recharge them when they are significantly depleted but not entirely empty.

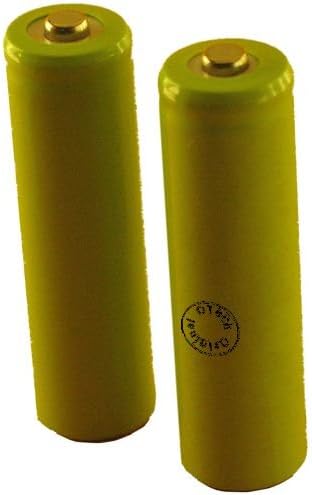

Figure 2: Otech rechargeable batteries. A close-up view of two Otech rechargeable batteries, showing the brand logo and 'Rechargeable' text.

4. Maintenance

4.1 Storage

Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is advisable to store NiMH batteries with a partial charge (around 50%) rather than fully charged or fully discharged. This helps maintain battery health.

4.2 Cleaning

Periodically inspect battery terminals for dirt or corrosion. Clean terminals with a dry cloth or a cotton swab lightly moistened with rubbing alcohol if necessary. Ensure terminals are completely dry before reinserting batteries into a device or charger.

4.3 Safety Precautions

• Do not short-circuit the battery terminals.
• Do not expose batteries to fire or water.
• Do not disassemble or modify the batteries.
• Keep batteries out of reach of children.
• Dispose of used batteries responsibly according to local regulations.

5. Troubleshooting

5.1 Device Not Powering On

• Check Battery Charge: Ensure batteries are fully charged.
• Verify Polarity: Confirm batteries are inserted correctly according to the device's polarity markings.
• Inspect Terminals: Check for any dirt or corrosion on battery or device terminals. Clean if necessary.
• Test with Other Batteries: If possible, try another set of known-good batteries to rule out a device issue.

5.2 Short Battery Life

• Full Charge Cycle: Ensure batteries are being fully charged each time.
• Charger Compatibility: Use a charger specifically designed for NiMH batteries.
• Battery Age: Rechargeable batteries have a finite lifespan. If batteries are old, their capacity may have diminished.
• Device Usage: High-drain devices or continuous use will deplete batteries faster.

5.3 Batteries Not Charging

• Charger Connection: Ensure the charger is properly plugged into a power source and the batteries are correctly seated in the charger.
• Charger Functionality: Test the charger with other NiMH batteries if available, or try a different charger.
• Battery Condition: Severely over-discharged or damaged batteries may not accept a charge.

6. Specifications

7. Warranty Information

This Otech battery product is covered by a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets its stated specifications under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear.

8. Support

For further assistance, technical support, or warranty inquiries regarding your Otech compatible battery, please refer to the contact information provided by your retailer or the official Otech website. When contacting support, please have your product model number (1N150X2-13080976) and proof of purchase readily available.
