LUEDD E27 LED Filament Bulb 4W 2700K Instruction Manual

1. Introduction

This manual provides instructions for the safe and efficient use of your LUEDD E27 LED Filament Bulb. This 4W LED bulb is designed to provide a warm white light at 2700 Kelvin, delivering 470 lumens of brightness. It features a classic filament design and is suitable for standard E27 lamp holders.

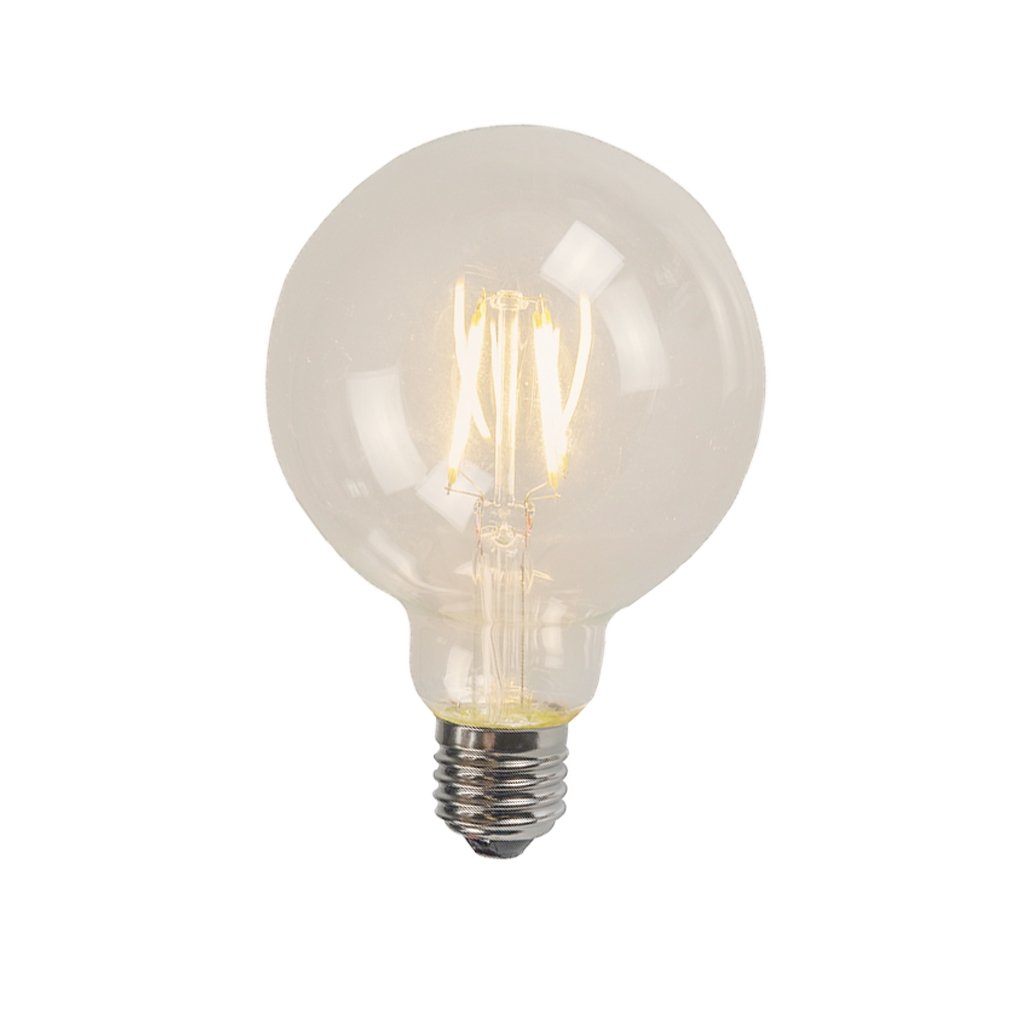

Image 1.1: The LUEDD E27 LED Filament Bulb, showcasing its clear glass and internal filament structure.

2. Safety Information

Please read all safety instructions before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• Turn off power: Always ensure the power supply to the lamp holder is switched off at the main circuit breaker before installing or removing the bulb.
• Indoor use only: This bulb is designed for indoor use in dry locations (IP20 rated). Do not expose to moisture or outdoor elements.
• Do not touch when hot: LED bulbs can become warm during operation. Allow the bulb to cool completely before handling.
• Proper voltage: Ensure your lamp holder's voltage matches the bulb's specified voltage (230V).
• Non-dimmable: This bulb is not compatible with dimmer switches. Using it with a dimmer may cause damage to the bulb or the dimmer.
• Disposal: Dispose of the bulb according to local regulations for electronic waste.

3. Setup and Installation

Follow these steps to safely install your LUEDD E27 LED Filament Bulb:

1. Ensure power is off: Before beginning, switch off the power to the light fixture at the main circuit breaker.
2. Remove old bulb (if applicable): Carefully unscrew the existing bulb from the lamp holder.
3. Insert new bulb: Gently screw the LUEDD E27 LED Filament Bulb into the E27 lamp holder until it is finger-tight. Do not overtighten.
4. Restore power: Once the bulb is securely installed, switch the power back on at the main circuit breaker.
5. Test: Turn on the light switch to confirm the bulb is working correctly.

Image 3.1: Close-up view of the E27 screw base of the LED bulb, ready for installation into a compatible lamp holder.

Image 3.2: Diagram showing the dimensions of the bulb: 9.5 cm diameter and 14 cm height.

4. Operating Instructions

To operate the LUEDD E27 LED Filament Bulb, simply use the standard wall switch connected to your light fixture. This bulb is designed for instant-on functionality and provides full brightness immediately.

• On/Off: Use the light switch to turn the bulb on or off.
• Non-Dimmable: As stated in the safety information, this bulb is not dimmable. Do not connect it to a dimmer switch.

5. Maintenance

The LUEDD E27 LED Filament Bulb requires minimal maintenance.

• Cleaning: Ensure the power is off and the bulb is cool before cleaning. Wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Replacement: When the bulb reaches the end of its lifespan, follow the installation steps in reverse to remove it, ensuring the power is off.

6. Troubleshooting

If you encounter issues with your bulb, refer to the following troubleshooting steps:

• Bulb does not light up:
  • Check if the power supply to the fixture is on.
  • Ensure the bulb is screwed in securely into the lamp holder.
  • Test the bulb in another working fixture to rule out a faulty bulb or fixture.
• Flickering:
  • Confirm the bulb is not connected to a dimmer switch.
  • Ensure the bulb is screwed in tightly.

If problems persist after following these steps, please contact customer support.

7. Specifications

Image 7.1: EU Energy Label for the LUEDD E27 LED Bulb, indicating Energy Class G and 4 kWh/1000h consumption. For more details, visit the official EPREL database: EPREL Product Page

8. Warranty and Support

For warranty information or technical support, please refer to the retailer's terms of sale or contact LUEDD customer service directly. Keep your purchase receipt as proof of purchase.
