Seiko Bell Alarm Clock QHK035C User Manual

Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your Seiko Bell Alarm Clock, model QHK035C. Please read this manual thoroughly before using the clock to ensure proper function and longevity.

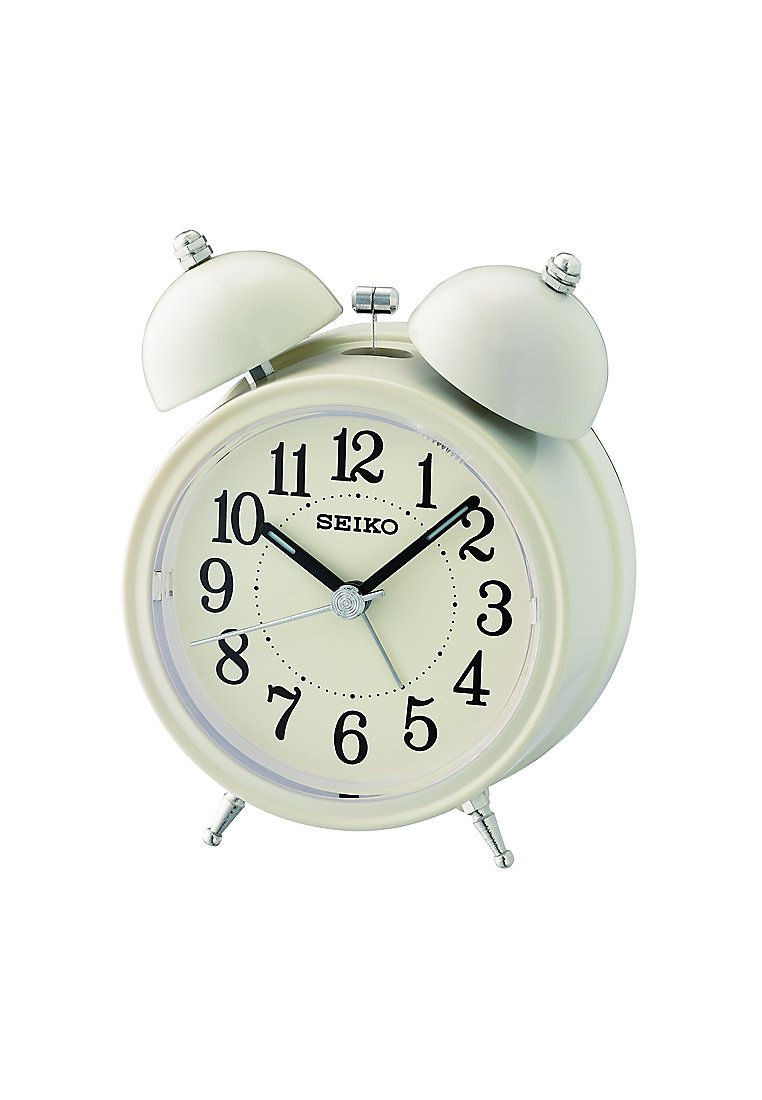

Figure 1: Front view of the Seiko Bell Alarm Clock QHK035C. The clock features a cream-colored plastic casing, a classic analog dial with large black numbers, and two bell hammers on top for the alarm function. It stands on two silver-colored feet.

Safety Information

• Do not expose the clock to extreme temperatures, direct sunlight, or high humidity.
• Avoid dropping the clock or subjecting it to strong impacts.
• Keep the clock away from strong magnetic fields.
• Do not attempt to disassemble or repair the clock yourself. Refer to qualified service personnel.
• Dispose of used batteries according to local regulations.

Package Contents

Verify that all items are present in the package:

• Seiko Bell Alarm Clock (Model QHK035C)
• 1 AAA Battery (pre-installed or included separately)
• This Instruction Manual

Setup

1. Battery Installation

1. Locate the battery compartment cover on the back of the clock.
2. Remove the cover by sliding it or gently prying it open.
3. Insert one AAA battery, ensuring the correct polarity (+ and -) as indicated inside the compartment.
4. Replace the battery compartment cover securely.

2. Setting the Time

1. On the back of the clock, locate the TIME SET knob.
2. Rotate the TIME SET knob in either direction to move the hour and minute hands to the desired current time.
3. For accuracy, it is recommended to set the time slightly ahead and then turn the knob backward to the exact time.

3. Setting the Alarm

1. Locate the ALARM SET knob on the back of the clock.
2. Rotate the ALARM SET knob to move the alarm hand to your desired alarm time.
3. Ensure the alarm ON/OFF switch (usually a small slide switch) on the back or side of the clock is in the ON position to activate the alarm.

Operating Instructions

1. Alarm Function

• When the alarm is set and activated, it will sound at the designated time.
• To stop the alarm, slide the alarm ON/OFF switch to the OFF position. The alarm will reset for the next 24 hours if the switch remains ON.

2. Snooze Function

• When the alarm sounds, press the large button on top of the clock (often labeled SNOOZE/LIGHT).
• The alarm will temporarily stop and sound again after approximately 5-10 minutes (duration may vary by model).
• You can repeat the snooze function multiple times.
• To permanently stop the alarm, slide the alarm ON/OFF switch to the OFF position.

3. Light Function (Lumibrite)

• The clock features Lumibrite hands and markers, which absorb light and glow in the dark for a period.
• To activate a temporary backlight for better visibility in low light conditions, press the large button on top of the clock (often labeled SNOOZE/LIGHT). The light will illuminate for a few seconds.

Maintenance

1. Cleaning

• Wipe the clock with a soft, dry cloth.
• Do not use abrasive cleaners, solvents, or chemical sprays, as these may damage the casing or dial.

2. Battery Replacement

• When the clock's display dims, the alarm weakens, or the clock stops functioning, it is time to replace the battery.
• Follow the battery installation steps outlined in the Setup section.
• Always use a fresh AAA battery.

Troubleshooting

Specifications

• Model: QHK035C
• Brand: Seiko Clocks
• Material: Plastic
• Power Source: 1 x AAA Battery (included)
• Features: Bell Alarm, Snooze, Lumibrite (Light)
• Product Dimensions: 1.97 x 3.15 x 4.72 inches (5 x 8 x 12 cm)
• Weight: 6 ounces (0.18 kg)

Warranty and Support

Seiko Clocks products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Seiko Clocks website. For technical support or service inquiries, please contact Seiko customer service.
