Sonneman 2430.01-FT Tubo Slim LED Linear Vanity Light Fixture User Manual

1. Product Overview

The Sonneman 2430.01-FT Tubo Slim LED Linear Vanity Light Fixture is an 18-inch lighting solution designed for modern bathroom or bedroom environments. Featuring a polished chrome finish and flat trim, this fixture provides energy-efficient 3000K LED illumination. Its sleek design integrates seamlessly into contemporary spaces, offering both style and functionality.

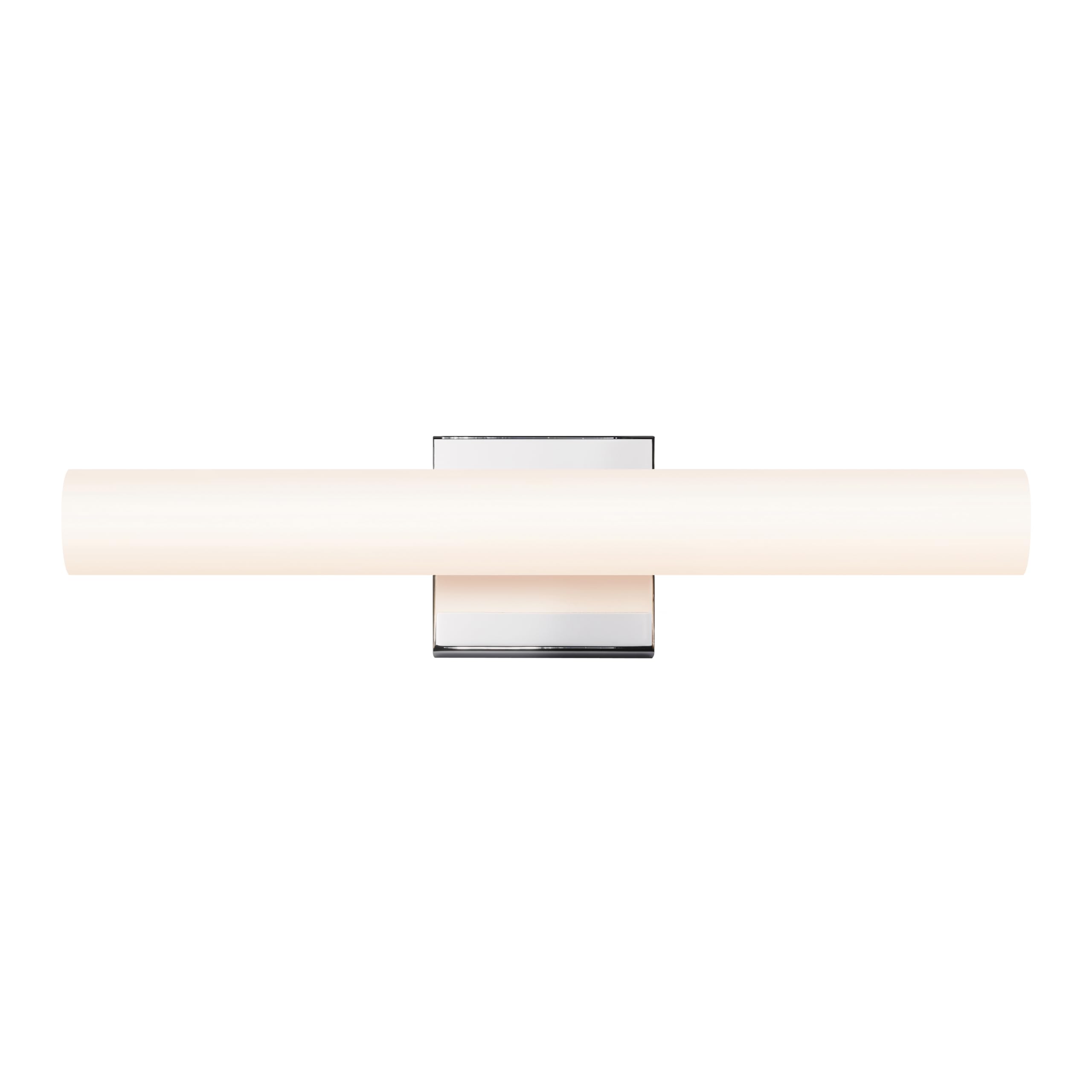

Figure 1: Sonneman Tubo Slim LED Linear Vanity Light Fixture, 18-inch, Polished Chrome with Flat Trim.

2. Important Safety Information

Please read all instructions carefully before installation and use. Retain this manual for future reference.

• Electrical Safety: Always disconnect power at the circuit breaker before installing, servicing, or cleaning the fixture. All wiring must be in accordance with national and local electrical codes. If you are unsure about wiring, consult a qualified electrician.
• Fixture Handling: Handle the fixture with care. Avoid dropping or subjecting it to strong impacts.
• LED Module: The LED light source is integrated and non-removable. Do not attempt to replace the LED module yourself.
• Dimmability: This fixture is dimmable. Ensure you use a compatible LED dimmer switch for optimal performance and to prevent damage.
• Indoor Use Only: This product is designed for indoor use in dry or damp locations (e.g., bathrooms). Do not install in areas exposed to direct water spray or extreme humidity.

Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please check your local laws before purchasing this product.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, do not attempt to install the fixture and contact customer support.

• Sonneman Tubo Slim LED Linear Vanity Light Fixture (1 unit)
• Mounting Hardware (screws, wire nuts, mounting plate)
• Installation Guide (this manual)

4. Setup and Installation

This fixture is designed for wall mount installation and requires no assembly. Professional installation is recommended.

1. Prepare for Installation: Turn off power at the main circuit breaker. Ensure the power is completely off before beginning.
2. Mounting Plate Installation: Attach the mounting plate to the junction box in the wall using the provided screws. Ensure it is securely fastened.
3. Wiring Connections: Connect the fixture's wires to the corresponding household wires (black to black, white to white, ground to ground) using the provided wire nuts. Ensure all connections are secure.
4. Secure the Fixture: Carefully align the fixture with the mounting plate and secure it in place using the provided screws. Ensure there are no exposed wires.
5. Restore Power: Once the fixture is securely installed, restore power at the circuit breaker.

Figure 2: Fixtures installed above dual sinks in a bathroom.

Figure 3: Fixture installed above a single sink in a bathroom.

5. Operating Instructions

The Sonneman Tubo Slim LED Linear Vanity Light Fixture is operated via a standard wall switch or a compatible remote control system, if installed.

• Turning On/Off: Use the wall switch connected to the fixture to turn the light on or off.
• Dimming Function: If a compatible LED dimmer switch is installed, adjust the dimmer to control the brightness of the light. This fixture supports dimming.
• Remote Control (Optional): If integrated with a remote control system, refer to the remote control's specific instructions for operation. The fixture supports remote control functionality.

6. Maintenance

Regular cleaning and proper care will help maintain the appearance and performance of your light fixture.

• Cleaning: Turn off power to the fixture before cleaning. Use a soft, dry, or slightly damp cloth to wipe down the metal and glass surfaces. Avoid abrasive cleaners, solvents, or polishes as they may damage the finish.
• Bulb Replacement: The LED light source in this fixture is integrated and designed for long-term use. It is not user-replaceable.
• Inspection: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.

Figure 4: Close-up of the fixture's polished chrome finish and flat trim.

7. Troubleshooting

If you encounter issues with your fixture, refer to the following common problems and solutions:

If the problem persists after trying these solutions, contact customer support or a qualified electrician.

8. Specifications

9. Warranty Information

This Sonneman lighting fixture is backed by a 5-year limited manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the official Sonneman warranty documentation or contact customer support.

10. Customer Support

For technical assistance, replacement parts, or warranty inquiries, please contact Sonneman customer support. Have your model number (2430.01-FT) and proof of purchase ready when contacting support.

Online: Visit the official Sonneman website for support resources and contact information.

Manufacturer: Lumtopia--DROPSHIP
