Bussmann FWA-150B 150 Amp 150V Fast Acting Fuse Instruction Manual

1. Product Overview

The Bussmann FWA-150B is a high-performance, fast-acting fuse designed for critical circuit protection applications. This fuse is rated for 150 Amperes at 150 Volts and is engineered to provide rapid interruption of overcurrents, safeguarding sensitive electrical equipment from damage. Its robust construction ensures reliable operation in demanding industrial and commercial environments.

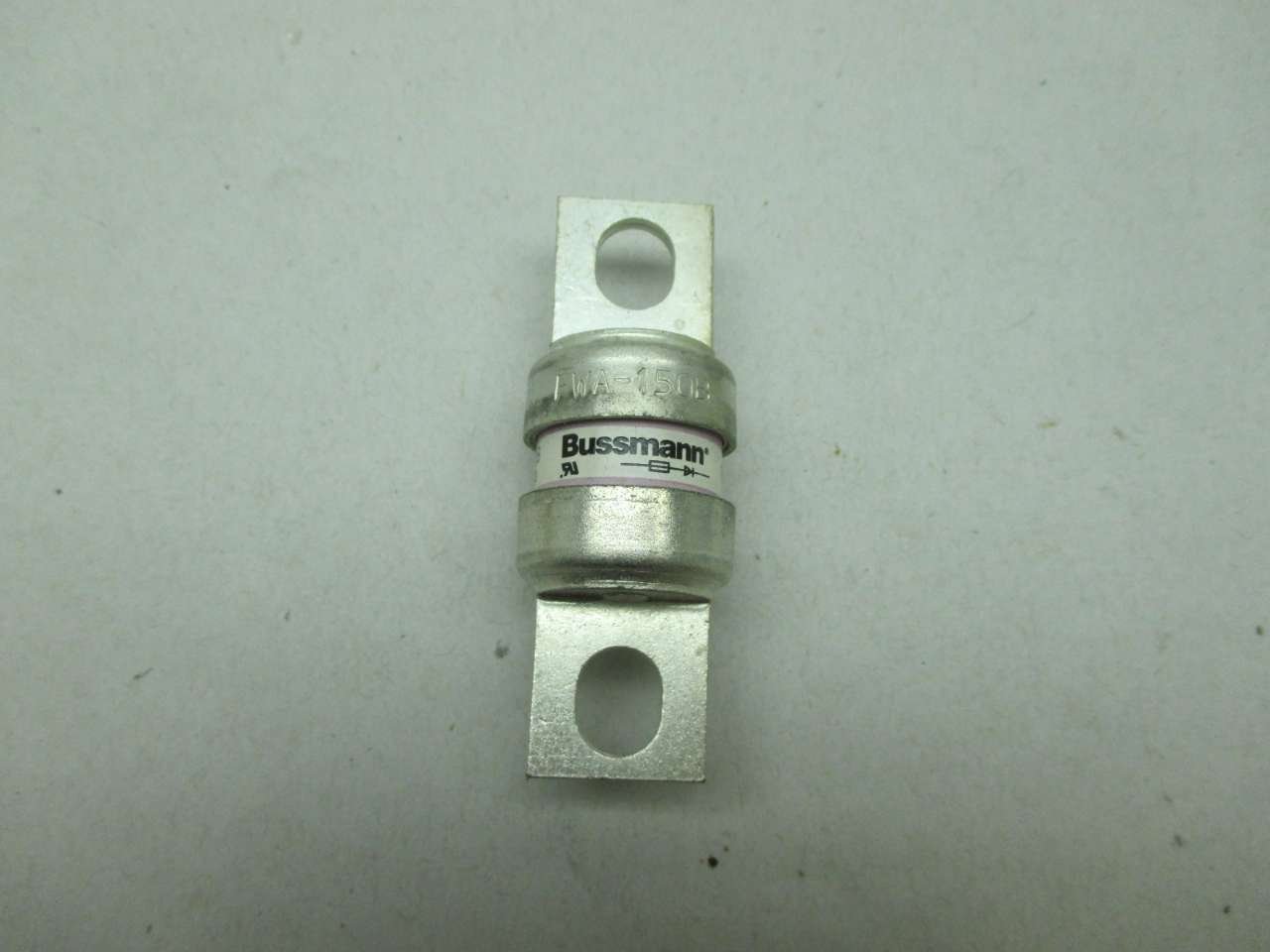

Image 1.1: Front view of the Bussmann FWA-150B 150 Amp Fast Acting Fuse, showing its cylindrical body and blade terminals.

2. Safety Information

WARNING: Electrical work should only be performed by qualified personnel. Always disconnect power before installing, inspecting, or replacing fuses. Failure to do so can result in serious injury or death.

• Ensure the fuse rating (Amperage and Voltage) matches the circuit requirements.
• Never bypass a fuse or replace it with a fuse of a higher rating.
• Wear appropriate personal protective equipment (PPE), including insulated gloves and eye protection.
• This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning). Handle with care and wash hands after contact.

3. Installation (Setup)

The Bussmann FWA-150B fuse is designed for through-hole mounting in appropriate fuse holders or blocks. Follow these steps for proper installation:

1. Power Disconnection: Before beginning any installation, ensure that all power to the circuit where the fuse will be installed is completely disconnected and locked out. Verify with a voltage tester.
2. Fuse Holder Preparation: Ensure the fuse holder or block is clean, free of debris, and designed to accommodate a fuse of this size and rating.
3. Fuse Insertion: Carefully insert the FWA-150B fuse into the designated fuse holder. The blade terminals should slide securely into the contacts. Ensure a firm connection without excessive force.
4. Verification: Double-check that the fuse is seated correctly and that there are no loose connections.
5. Power Restoration: Once installation is complete and verified, restore power to the circuit.

4. Operating Principles

The FWA-150B is a fast-acting fuse, meaning it is designed to open very quickly when an overcurrent condition occurs. This rapid response is crucial for protecting sensitive electronic components and circuits that can be damaged by even short durations of excessive current. When the current flowing through the fuse exceeds its rated amperage (150A), the internal element melts, creating an open circuit and interrupting the flow of electricity. This prevents damage to downstream equipment and helps to mitigate fire hazards.

5. Maintenance

Fuses are generally maintenance-free components. However, periodic inspection is recommended to ensure optimal circuit protection.

• Visual Inspection: Periodically inspect the fuse and its holder for any signs of physical damage, discoloration, or corrosion.
• Replacement: If a fuse blows, it must be replaced with an identical fuse (Bussmann FWA-150B) of the same amperage and voltage rating. Never attempt to repair a blown fuse.
• Cleaning: Ensure the fuse holder contacts are clean and free of dust or debris to maintain good electrical conductivity.

6. Troubleshooting

If a circuit protected by the FWA-150B fuse loses power, the fuse may have blown. Follow these troubleshooting steps:

1. Disconnect Power: Always disconnect power to the circuit before inspecting or replacing the fuse.
2. Locate Fuse: Identify the FWA-150B fuse in its holder.
3. Inspect Fuse: Visually inspect the fuse. A blown fuse may show a broken internal element or discoloration. For non-visual fuses, use a multimeter to check for continuity across the fuse terminals. A blown fuse will show an open circuit (no continuity).
4. Identify Cause: Before replacing the fuse, investigate the cause of the overcurrent. Common causes include short circuits, overloaded equipment, or faulty components. Replacing a fuse without addressing the underlying issue will likely result in the new fuse blowing immediately.
5. Replace Fuse: If the fuse is confirmed blown and the cause has been addressed, replace it with a new Bussmann FWA-150B fuse.
6. Restore Power: Restore power and monitor the circuit.

If the new fuse blows immediately, or if you cannot identify the cause of the overcurrent, consult a qualified electrician or technician.

7. Specifications

Key technical specifications for the Bussmann FWA-150B fuse:

8. Warranty and Support

For specific warranty information regarding the Bussmann FWA-150B fuse, please refer to the documentation provided at the point of purchase or contact Bussmann directly through their official website. As a consumable safety device, fuses typically do not carry extensive warranties against normal operation (i.e., blowing due to overcurrent). However, manufacturing defects may be covered.

For technical support, product inquiries, or to locate authorized distributors, please visit the official Bussmann website or contact their customer service department.
