1. Introduction

This manual provides essential information regarding the SKF Rear Forward Axle Output Shaft Pinion Bearing, model BR119. This precision-engineered component is designed for specific Toyota and Lexus vehicle models, including Highlander, Rav4, Sienna, RX350, RX300, and RX330. The pinion bearing is a critical part of the vehicle's driveline, supporting the pinion gear within the differential or transfer case, ensuring smooth power transfer from the driveshaft to the axles.

Proper installation and maintenance are crucial for the longevity and performance of this bearing and the overall vehicle driveline system. Please read this manual thoroughly before any installation or service procedures.

Figure 1.1: The SKF BR119 Rear Forward Axle Output Shaft Pinion Bearing, shown with its outer race. This tapered roller bearing assembly is designed for high load capacity and precise rotational support within the vehicle's differential or transfer case.

2. Setup & Installation

Installation of the SKF BR119 pinion bearing requires specialized tools, technical knowledge, and adherence to specific vehicle manufacturer specifications. It is strongly recommended that installation be performed by a certified automotive technician. Incorrect installation can lead to premature bearing failure, damage to other driveline components, and potential safety hazards.

2.1 Pre-Installation Checks

• Verify the bearing model (BR119) matches the vehicle's requirements.
• Inspect the bearing and race for any signs of damage during shipping.
• Ensure all mating surfaces in the differential or transfer case housing are clean and free of debris, old sealant, or burrs.
• Confirm availability of all necessary tools, including bearing presses, torque wrenches, and specialized differential tools.
• Obtain the vehicle manufacturer's service manual for specific torque specifications, preload settings, and installation procedures.

2.2 General Installation Steps (Consult Service Manual for Details)

1. Safely lift and support the vehicle.
2. Drain differential fluid and remove the driveshaft and other necessary components to access the differential or transfer case.
3. Carefully remove the old pinion bearing and race using appropriate pullers and presses.
4. Clean the bearing bore thoroughly.
5. Press the new SKF BR119 bearing race into the housing, ensuring it is fully seated and not cocked.
6. Press the new SKF BR119 bearing onto the pinion shaft.
7. Install the pinion shaft assembly into the differential/transfer case, ensuring proper shimming and preload according to manufacturer specifications. This step is critical for bearing longevity and gear mesh.
8. Reassemble all components, applying new seals and gaskets as required.
9. Refill the differential/transfer case with the specified type and amount of gear oil.
10. Perform a final inspection for leaks and proper operation.

Figure 2.1: Top view of the SKF BR119 Pinion Bearing, highlighting the precision-machined rollers and cage. This view emphasizes the robust construction designed to withstand the axial and radial loads encountered in automotive driveline applications.

3. Operation

Once correctly installed, the SKF BR119 pinion bearing operates continuously as an integral part of the vehicle's differential or transfer case. Its function is to provide smooth, low-friction support for the pinion gear, allowing it to rotate efficiently and transfer power from the driveshaft to the ring gear and ultimately to the wheels.

A properly functioning pinion bearing should operate silently and without noticeable vibration. Any unusual noises (whining, grinding, humming) or vibrations originating from the differential or transfer case area after installation may indicate an issue with the bearing, its installation, or other driveline components. It is important to address such symptoms promptly.

4. Maintenance

The SKF BR119 pinion bearing is designed for long-term performance when properly installed and lubricated. Its primary maintenance requirement is ensuring it operates within a clean, adequately lubricated environment.

4.1 Differential Fluid Maintenance

The pinion bearing relies on the differential or transfer case fluid for lubrication and cooling. Adhere strictly to the vehicle manufacturer's recommended fluid type and change intervals. Using incorrect fluid or neglecting fluid changes can lead to premature bearing wear and failure.

4.2 Regular Inspections

During routine vehicle maintenance, it is advisable to:

• Check for any signs of fluid leaks around the differential or transfer case seals. Leaks can lead to insufficient lubrication.
• Listen for unusual noises (whining, grinding, humming) from the driveline during vehicle operation.
• Inspect for excessive play in the driveshaft or pinion flange, which could indicate bearing wear.

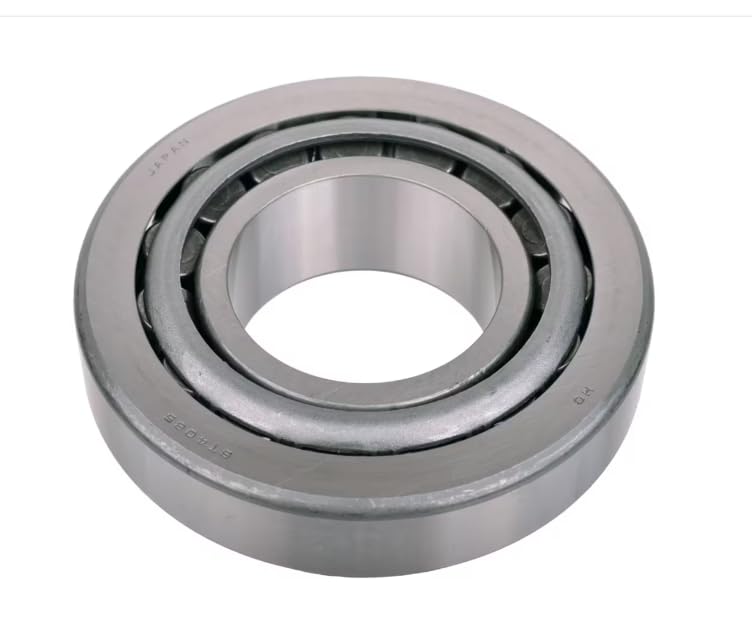

Figure 4.1: Angled view of the SKF BR119 Pinion Bearing, showcasing its internal structure and robust design. This perspective highlights the precision engineering that contributes to the bearing's durability and performance under demanding automotive conditions.

5. Troubleshooting

If you experience symptoms that suggest a problem with your differential or transfer case, the pinion bearing may be a contributing factor. Due to the complexity of driveline systems, professional diagnosis is highly recommended.

5.1 Common Symptoms of Pinion Bearing Issues

• Whining or Humming Noise: Often heard at specific speeds or during acceleration/deceleration. This can indicate worn bearings or incorrect preload.
• Grinding Noise: A more severe sound, suggesting significant wear or damage to the bearing or gears.
• Vibration: Can be felt through the vehicle, especially at higher speeds, and may be related to a failing bearing or driveshaft imbalance.
• Excessive Play: If the pinion flange has noticeable up-and-down or side-to-side movement when the driveshaft is disconnected, it could indicate worn pinion bearings.
• Fluid Leaks: While not a direct symptom of bearing failure, a leaking pinion seal can lead to fluid loss and subsequent bearing damage due to lack of lubrication.

5.2 Recommended Action

If any of these symptoms are observed, cease operation of the vehicle if the noise is severe or if there is significant vibration. Contact a qualified automotive technician immediately for diagnosis and repair. Attempting to drive with a failing pinion bearing can lead to catastrophic failure of the differential/transfer case and other driveline components.

6. Specifications

7. Warranty & Support

7.1 Warranty Information

Specific warranty terms for the SKF BR119 bearing are provided by the manufacturer, SKF, or the authorized seller at the time of purchase. Please retain your proof of purchase. For detailed warranty coverage, duration, and claim procedures, refer to the documentation included with your product or contact the seller directly. Warranty typically covers manufacturing defects but may not cover damage due to improper installation, misuse, or normal wear and tear.

7.2 Technical Support

For technical assistance, installation guidance, or questions regarding the SKF BR119 bearing, it is recommended to contact the authorized SKF distributor or the seller from whom the product was purchased. Professional automotive technicians are also a valuable resource for installation and diagnostic support.

You may also visit the official SKF website for general product information and support resources: www.skf.com
