Stanley 1/4 Sheet Sander 220W Instruction Manual

Important Safety Instructions

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Avoid body contact with earthed or grounded surfaces.
• Personal Safety: Always wear eye protection. Use dust masks, non-skid safety shoes, hard hats, or hearing protection for appropriate conditions. Dress properly. Do not wear loose clothing or jewelry.
• Power Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
• Dust Collection: This sander includes a dust collector. Always use it to minimize dust exposure, which can be harmful.

Product Overview

The Stanley STEL401-B3 is a 1/4 sheet sander designed for smooth finishing on various surfaces. It features a powerful 220W motor and an integrated dust collection system.

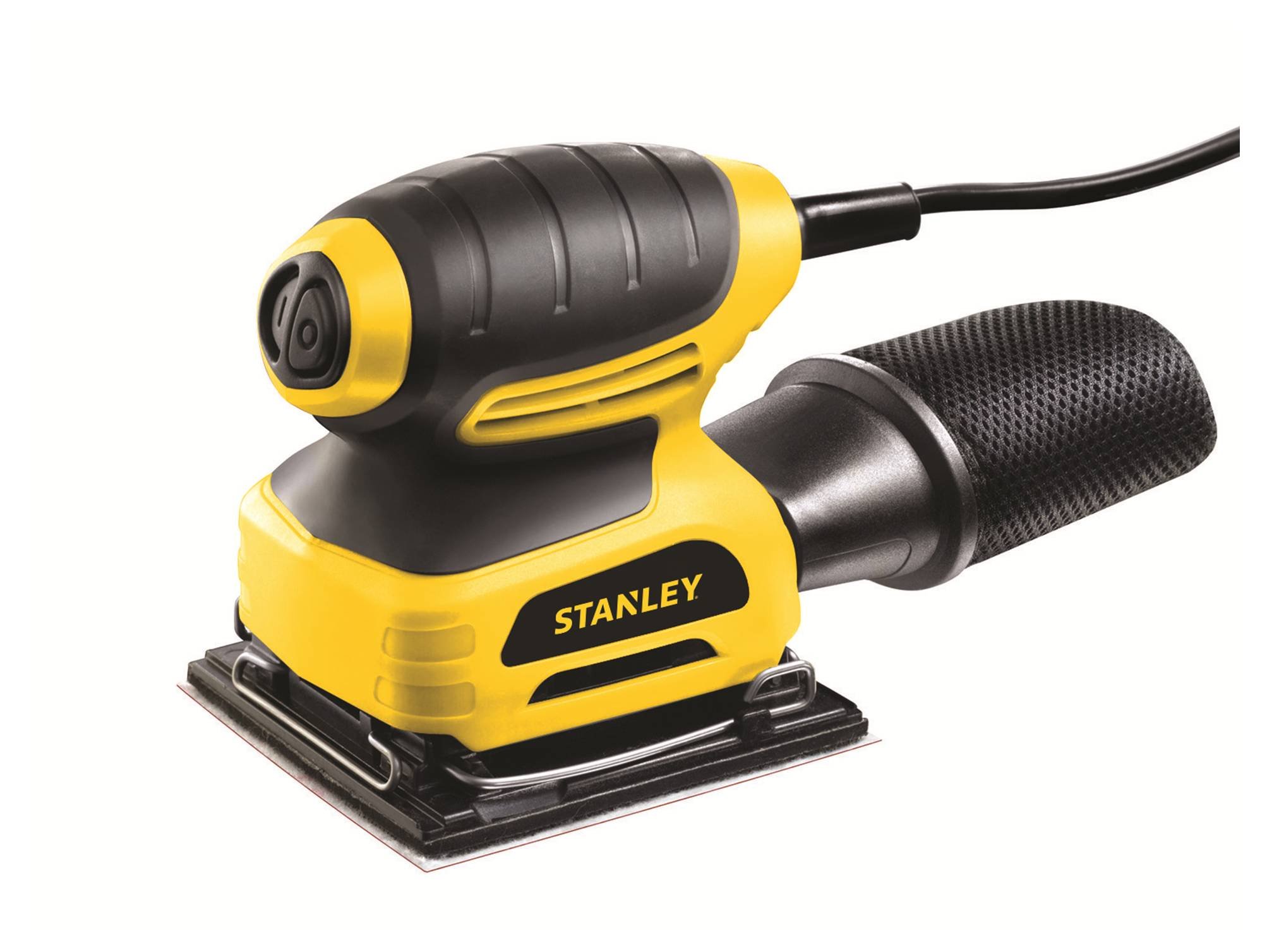

Figure 1: Stanley 1/4 Sheet Sander (Model STEL401-B3). This image shows the overall design of the sander, highlighting its compact form and ergonomic handle.

Key Components:

• Sanding Base: The flat surface where the sandpaper is attached.
• Dust Collector: A removable container designed to collect sanding dust, improving visibility and reducing airborne particles.
• Power Switch: Controls the ON/OFF function of the sander.
• Paper Clamps (for regular sandpaper): Metal clamps located on the sides to secure standard sandpaper sheets.
• Hook-and-Loop Base (for adapted sandpaper): A base designed for quick attachment and removal of sandpaper with a hook-and-loop backing and dust extraction holes.

Setup

Attaching Sandpaper:

1. For Standard Sandpaper Sheets:
   • Ensure the sander is unplugged.
   • Lift the metal clamps on both sides of the sanding base.
   • Insert one end of the sandpaper sheet under one clamp and secure it.
   • Stretch the sandpaper tightly across the sanding base and insert the other end under the second clamp, securing it firmly.
   • Ensure the sandpaper is taut and flat against the base.
2. For Hook-and-Loop Sandpaper (with dust holes):
   • Ensure the sander is unplugged.
   • Align the holes on the sandpaper with the holes on the sander's hook-and-loop base.
   • Press the sandpaper firmly onto the base to ensure a secure attachment.

Attaching the Dust Collector:

• Locate the dust port at the rear of the sander.
• Slide the dust collector firmly onto the dust port until it clicks into place or feels secure.
• Empty the dust collector regularly for optimal performance and to prevent clogging.

Operating Instructions

1. Preparation: Ensure the workpiece is securely clamped and stable. Wear appropriate personal protective equipment (PPE), including eye protection and a dust mask.
2. Power Connection: Plug the sander into a suitable 120V power outlet.
3. Starting the Sander: Hold the sander firmly with both hands. Place the sanding base flat on the surface to be sanded. Press the ON/OFF switch to start the tool.
4. Sanding Technique: Apply light, even pressure. Move the sander in long, overlapping strokes. Avoid pressing down too hard, as this can reduce efficiency and damage the workpiece or sander.
5. Stopping the Sander: Lift the sander from the workpiece, then press the ON/OFF switch to turn it off. Wait for the sanding pad to stop completely before setting the tool down.

Maintenance

• Cleaning: Regularly clean the sander's exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Dust Collector: Empty the dust collector frequently. A full dust collector reduces sanding efficiency and increases dust exposure.
• Air Vents: Keep the motor's air vents clear of dust and debris to prevent overheating. Use compressed air to blow out vents if necessary.
• Sandpaper Replacement: Replace worn sandpaper promptly. Using dull sandpaper can strain the motor and produce poor results.
• Cord Inspection: Periodically inspect the power cord for damage. If damaged, have it repaired by a qualified service technician.
• Professional Maintenance: The product includes a first year of free maintenance. Contact Stanley authorized service centers for professional servicing.

Troubleshooting

Specifications

• Model Number: STEL401-B3
• Brand: STANLEY
• Power: 220W
• Voltage: 120 Volts
• Power Source: Corded Electric
• Sanding Sheet Size: 1/4 Sheet
• Product Weight: 1.3 Kilograms
• Included Items: Sander, Dust Collector
• GTIN/UPC: 885911369466

Warranty and Support

This Stanley STEL401-B3 1/4 Sheet Sander comes with a 3-year limited warranty. Additionally, the first year of maintenance is provided free of charge. For warranty claims, technical support, or service inquiries, please contact your local authorized Stanley service center or visit the official Stanley website.

For more information, you can visit the STANLEY Brand Store.
