Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of the Thule Rapid System 1769 Fitting Kit (Model 141769). This kit is specifically designed for use with Thule roof racks on the Renault Espace 5 vehicle model. Please read these instructions carefully before installation to ensure proper and safe use of the product.
Setup and Installation
Proper installation is crucial for the safety and performance of your roof rack system. Always refer to the specific instructions provided with your Thule roof bars in conjunction with this fitting kit manual.
- Vehicle Preparation: Ensure your Renault Espace 5 roof is clean and free of debris where the fitting kit will be attached. Identify the designated mounting points on your vehicle's roof, typically indicated in your vehicle's owner's manual or by specific markings.
- Kit Component Identification: Unpack all components of the Thule Rapid System 1769 Kit (Model 141769). Verify that all parts are present and undamaged according to the packing list.
- Attaching the Foot Pack: Follow the instructions provided with your Thule Rapid System foot pack to attach the foot pack components to the fitting kit brackets. Ensure all bolts are hand-tightened initially.
- Positioning on Vehicle: Carefully place the assembled foot packs with the fitting kit onto the designated mounting points on your vehicle's roof. Ensure the rubber pads are correctly seated to protect the vehicle's paintwork.
- Securing the System: Using the provided tools, tighten all fasteners according to the torque specifications outlined in your Thule foot pack manual. It is critical not to overtighten or undertighten.
- Final Check: After installation, gently pull and push on the roof bars to ensure they are securely fastened to the vehicle. Drive a short distance and then re-check all fasteners for tightness. Repeat this check periodically, especially before long journeys.

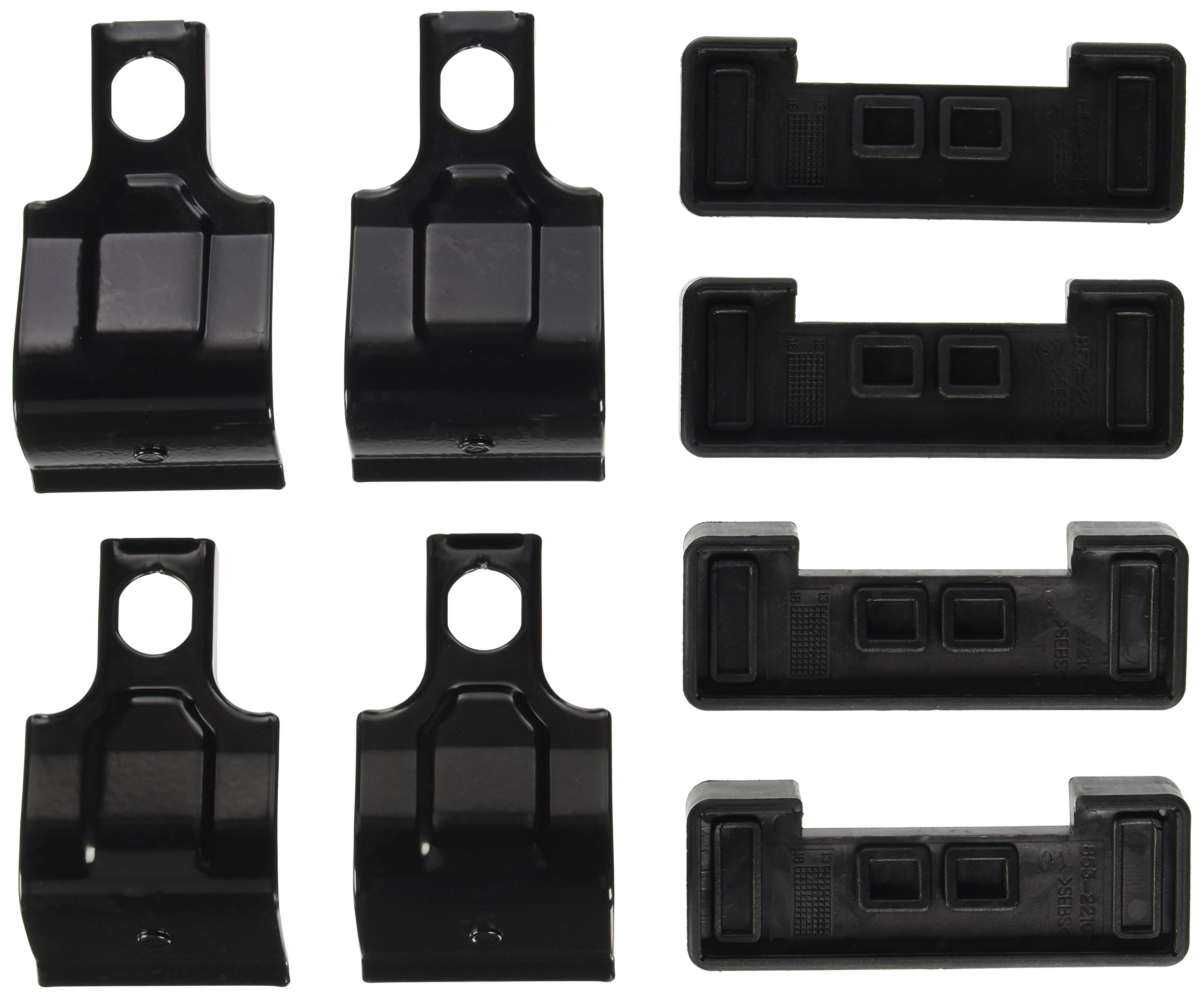

Image: Thule Rapid System 1769 Fitting Kit components. This image shows the various parts included in the kit, such as brackets, rubber pads, and fasteners, which are essential for securing the roof rack to the vehicle.
Operation and Usage Guidelines
Once the Thule Rapid System 1769 Fitting Kit and associated roof bars are correctly installed, adhere to the following guidelines for safe operation:
- Load Capacity: Never exceed the maximum load capacity specified for your Thule roof rack system or your vehicle's roof, whichever is lower. Refer to your vehicle's owner's manual and the Thule roof bar instructions for specific limits.
- Load Distribution: Distribute the load evenly across the roof bars. Secure all items firmly to prevent shifting during transit.
- Driving Speed: Adjust your driving speed to suit the load and road conditions. High speeds, sudden braking, or sharp turns can affect stability.
- Height Clearance: Be aware of the increased height of your vehicle when carrying items on the roof rack. Exercise caution when entering garages, car washes, or areas with low overhead clearance.
- Regular Checks: Periodically check the tightness of all fasteners and the security of the load, especially during long journeys.
Maintenance
Regular maintenance ensures the longevity and safe operation of your Thule Rapid System 1769 Fitting Kit.
- Cleaning: Clean the fitting kit components and roof bars regularly with mild soap and water. Avoid abrasive cleaners or solvents that could damage the materials.
- Inspection: Periodically inspect all components for signs of wear, corrosion, or damage. Pay close attention to rubber pads, brackets, and fasteners. Replace any damaged parts immediately.
- Lubrication: If any moving parts or locking mechanisms are present (typically on the foot pack, not the fitting kit itself), lubricate them as recommended by Thule.
- Storage: When not in use, remove the roof rack system from your vehicle and store it in a dry, protected area to prevent unnecessary exposure to weather elements and potential theft.
Troubleshooting
If you encounter issues with your Thule Rapid System 1769 Fitting Kit, consider the following common solutions:
- Loose Fitment: If the roof rack feels loose, re-check all fasteners for proper torque. Ensure the fitting kit is correctly seated in the vehicle's designated mounting points.
- Excessive Noise/Whistling: This can often be caused by incorrect positioning of the roof bars or accessories, or by gaps in the system. Ensure all components are installed flush and that any rubber strips or end caps are in place. Adjust the position of the bars slightly if possible.
- Difficulty Installing: Double-check that you have the correct fitting kit for your specific vehicle model (Renault Espace 5) and year. Refer to both this manual and your Thule foot pack instructions.
- Damaged Components: Do not use the system if any part of the fitting kit or roof bars is damaged. Contact Thule customer support for replacement parts.
Specifications
| Manufacturer | Thule GmbH |
| Brand | Thule |
| Model Number | 141769 |
| Item Weight | 610 g |
| Product Dimensions (L x W x H) | 16 x 16 x 7.5 cm |
| ASIN | B0191XTF66 |
| Country of Origin | Sweden |
| Compatibility | Renault Espace 5 (with Thule Rapid System foot packs) |
Warranty Information
Thule products are known for their quality and are covered by a warranty. For specific details regarding the warranty period and terms for the Thule Rapid System 1769 Fitting Kit (Model 141769), please refer to the official Thule website or contact Thule customer support directly. Keep your proof of purchase for warranty claims.
Customer Support
If you have any questions, require assistance with installation, or need to report a problem with your Thule Rapid System 1769 Fitting Kit, please contact Thule customer support. You can typically find contact information, FAQs, and additional resources on the official Thule website.
Always ensure you are using genuine Thule parts and accessories for optimal performance and safety.
