Introduction
Thank you for choosing the Sojag Dakota Sun Shelter. This manual provides essential information for the safe assembly, proper operation, and effective maintenance of your 10' x 10' sun shelter. The Dakota Sun Shelter features a durable aluminum frame and a galvanized steel roof, designed to provide shade and withstand various weather conditions. Please read these instructions carefully before beginning assembly and retain them for future reference.
Safety Information
- Read All Instructions: Ensure you understand all assembly steps and safety warnings before starting.
- Two-Person Assembly: Assembly typically requires at least two adults. Some steps, particularly roof installation, may benefit from additional assistance.
- Secure Anchoring: Always anchor the sun shelter securely to the ground or a solid surface to prevent wind damage. Concrete anchors are recommended for permanent installations.
- Snow Removal: The galvanized steel roof is durable, but heavy snow accumulation must be removed promptly to prevent structural damage. Do not allow snow to accumulate on the roof.
- Check for Damage: Inspect all components upon receipt. Do not proceed with assembly if parts are significantly damaged. Contact customer support for replacements.
- Use Proper Tools: Ensure you have the necessary tools for assembly, as specified in the hardware kit.
Parts List
Your Sojag Dakota Sun Shelter package includes the gazebo structure, galvanized steel roof panels, a hardware kit, and a detailed instruction manual with a complete parts list. Please refer to the separate parts list provided in your packaging to identify all components before beginning assembly. Ensure all parts are present and undamaged.
Setup and Assembly
Assembly of the Sojag Dakota Sun Shelter requires careful attention to detail. While the frame assembly is generally straightforward, the roof installation can be challenging and is best performed with multiple individuals.
General Assembly Steps:
- Unpack and Organize: Carefully unpack all boxes and lay out components. Verify all parts against the provided parts list.
- Assemble the Frame: Follow the step-by-step instructions in your manual to construct the aluminum frame. Ensure all bolts are tightened securely but do not overtighten until the entire frame is aligned.
- Install Roof Supports: Attach the roof support beams to the main frame.
- Roof Panel Installation: This is often the most challenging step.
- It is highly recommended to have at least three to four people for roof panel installation.
- Ensure all mid-roof holes align. If alignment is difficult, slightly loosen support brackets to allow for adjustment, then re-tighten once panels are in place.
- Carefully slide the thin roof panels into the tracks. If clips fall off, reattach them and restart the section.
- Secure the Structure: Once fully assembled, anchor the gazebo legs to your patio or ground surface using appropriate hardware. The base plates have pre-drilled holes for this purpose.
- Install Mosquito Netting: The included nylon mosquito net utilizes a two-track system. Install the netting into the designated tracks.
Figure 1: Fully assembled Sojag Dakota Sun Shelter.

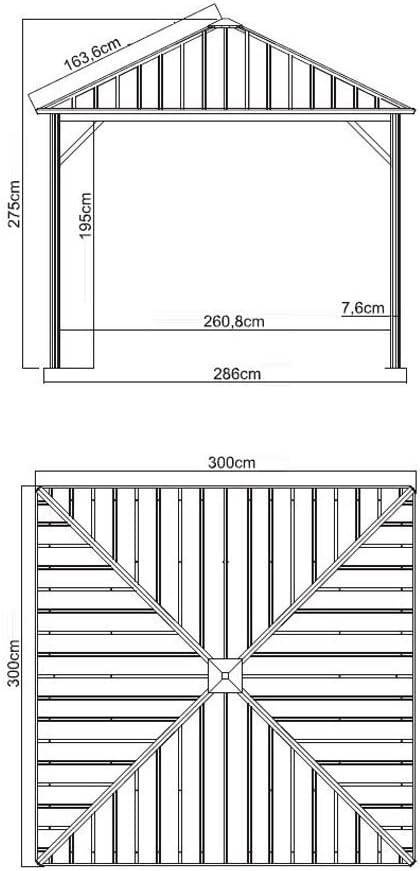

Figure 2: Dimensional diagram of the Sojag Dakota Sun Shelter.
Figure 3: Detail of the base plate for securing the shelter.
Operating Instructions
The Sojag Dakota Sun Shelter is designed for ease of use and durability.
- Mosquito Netting: The included nylon mosquito netting slides easily along the two-track system. Open or close the netting as needed to provide insect protection.
- Privacy Curtains (Sold Separately): If you purchase privacy curtains, they can be installed on the second track of the two-track system, allowing for flexible use alongside the mosquito netting.
- Sun Protection: The galvanized steel roof provides 100% shade, blocking sunlight effectively.
Maintenance
Proper maintenance will extend the lifespan of your Sojag Dakota Sun Shelter.
- Cleaning: Clean the aluminum frame and galvanized steel roof with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Rinse thoroughly with clean water.
- Winter Care: The galvanized steel roof does not need to be stored away for the winter. However, it is crucial to always remove snow accumulation from the roof to prevent structural stress and potential collapse.
- Hardware Check: Periodically check all bolts and fasteners to ensure they remain tight. Re-tighten if necessary.
- Mosquito Netting Care: Clean the nylon mosquito netting as needed. It can typically be hand-washed with mild soap and water and air-dried.
Figure 4: View of the galvanized steel roof structure from below.
Figure 5: Detail of the roof edge and drainage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Parts missing or damaged upon arrival. | Shipping damage or packaging error. | Do not proceed with assembly. Contact Sojag customer support immediately for replacement parts. |
| Roof panels do not align or fit correctly. | Frame not perfectly square; bolts overtightened prematurely; insufficient personnel for installation. | Ensure the main frame is square. Loosen frame bolts slightly to allow for flexibility during roof panel installation, then re-tighten. Ensure at least 3-4 people are assisting with roof panels. |
| Hardware (nuts/bolts) stripping or breaking. | Overtightening; defective hardware. | Use appropriate tools and avoid overtightening. If hardware is defective, contact Sojag for replacements. |
| Gazebo unstable or swaying. | Not properly anchored; loose connections. | Ensure all frame connections are tight. Securely anchor the gazebo legs to the ground or patio using appropriate anchors. |
Specifications
- Model Number: 500-8162585
- Brand: Sojag
- Dimensions: Approximately 10' x 10' (300cm x 300cm)
- Frame Material: Aluminum, Alloy Steel
- Roof Material: Galvanized Steel
- Color: Dark Brown
- Item Weight: 194 Pounds
- Water Resistance Level: Waterproof
- Assembly Required: Yes
- Included Components: Gazebo Structure, Galvanized Steel Roof Panels, Hardware Kit, Instruction Manual, Nylon Mosquito Netting
Warranty Information
The Sojag Dakota Sun Shelter comes with a 1-year limited manufacturer's warranty. Please refer to the warranty details provided in your product packaging for specific terms and conditions. This warranty typically covers manufacturing defects but may not cover damage due to improper assembly, lack of maintenance (e.g., snow removal), or extreme weather conditions.
Customer Support
For assistance with assembly, missing parts, or warranty claims, please contact Sojag customer support. Replacement parts can be ordered if needed. Refer to the contact information provided in your product manual or visit the official Sojag website for support details.
