Amico AST-28 Deluxe Snow Blower User Manual

1. Introduction and Safety Information

This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your Amico AST-28 Deluxe 265cc Two-stage Electric Start Gas Snow Blower. Read and understand all instructions before operating the machine. Failure to follow these instructions can result in serious injury or property damage.

General Safety Rules

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy footwear.
• Keep children and pets away from the operating area.
• Never operate the snow blower indoors or in poorly ventilated areas due to carbon monoxide risk.
• Inspect the area to be cleared for objects that could be thrown by the auger/impeller. Remove all debris before starting.
• Do not allow hands or feet near rotating parts. Keep all guards and safety devices in place.
• Always turn off the engine and disconnect the spark plug wire before performing any adjustments, maintenance, or clearing clogs.

2. Setup and Assembly

Your Amico AST-28 Deluxe snow blower requires some assembly before first use. Refer to the included assembly guide for detailed diagrams.

Unboxing and Initial Inspection

• Carefully remove all components from the packaging.
• Check for any shipping damage or missing parts. Contact customer service immediately if issues are found.

Handlebar Assembly

Attach the upper handlebar to the lower handlebar using the provided bolts and nuts. Ensure all connections are secure.

Chute Assembly

Mount the discharge chute and chute control crank according to the instructions. Verify that the chute rotates freely and locks into position.

Fuel and Oil Preparation

• Engine Oil: Fill the engine crankcase with the recommended 4-stroke engine oil (typically 5W-30 or 10W-30, refer to engine manual for specifics) to the 'Full' mark on the dipstick. Do not overfill.
• Fuel: Use fresh, unleaded gasoline with an octane rating of 87 or higher. Do not use E85 fuel. Fill the fuel tank carefully, avoiding spills.

Electric Start Connection

For electric start models, ensure the power cord (not included) is compatible with your snow blower's receptacle and a grounded 120V AC outlet.

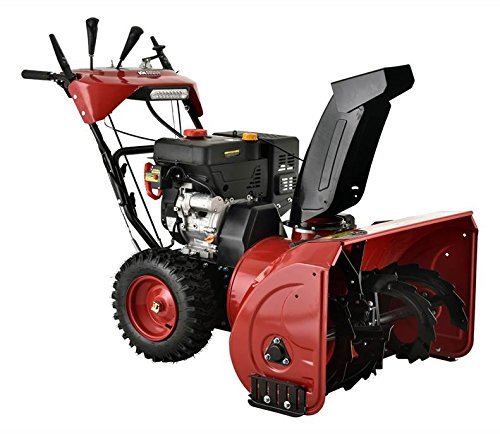

Figure 1: Amico AST-28 Deluxe Snow Blower, showing its general appearance and key components.

3. Operating Instructions

Follow these steps for safe and effective operation of your snow blower.

Pre-Operation Checklist

• Check engine oil level.
• Ensure fuel tank is adequately filled.
• Inspect all controls for proper function.
• Verify that all fasteners are tight.
• Clear the area of any obstacles.

Starting the Engine

1. Turn the fuel valve to the 'ON' position.
2. Set the choke lever to 'FULL CHOKE'.
3. Set the throttle lever to 'FAST'.
4. Electric Start: Connect the power cord to the snow blower and a grounded 120V AC outlet. Press and hold the electric start button until the engine starts. Disconnect the cord immediately after starting.
5. Recoil Start: Grasp the recoil starter handle firmly and pull slowly until resistance is felt, then pull quickly and smoothly. Repeat until the engine starts.
6. Once the engine starts, gradually move the choke lever to 'RUN' as the engine warms up.

Clearing Snow

• Engage the auger/impeller control lever.
• Engage the drive control lever to move the snow blower forward.
• Adjust the discharge chute direction and deflector height to throw snow away from cleared areas, buildings, and people.
• Overlap each pass slightly to ensure complete snow removal.
• If the discharge chute becomes clogged, immediately turn off the engine and disconnect the spark plug wire before using a clean-out tool to clear the obstruction. Never use your hands.

Stopping the Engine

• Disengage the auger/impeller control lever.
• Disengage the drive control lever.
• Move the throttle lever to 'SLOW' or 'IDLE' for a few moments.
• Turn the engine switch to 'OFF'.
• Turn the fuel valve to 'OFF'.

4. Maintenance

Regular maintenance ensures optimal performance and extends the life of your snow blower.

After Each Use

• Clean snow and ice from the machine.
• Inspect for loose fasteners or damaged parts.

Seasonal Maintenance

• Engine Oil: Change engine oil after the first 5 hours of operation, then every 25 hours or annually.
• Spark Plug: Inspect and clean or replace the spark plug annually.
• Belts: Check auger and drive belts for wear and tension. Replace if worn or cracked.
• Shear Pins: Inspect shear pins regularly. Replace with genuine Amico parts if broken.
• Skid Shoes and Scraper Bar: Adjust or replace skid shoes and the scraper bar as they wear down.

Storage

• For long-term storage, drain the fuel tank or add a fuel stabilizer. Run the engine until it stops to consume all fuel in the carburetor.
• Clean the entire machine thoroughly.
• Store in a dry, protected area away from direct sunlight and extreme temperatures.

5. Troubleshooting

This section addresses common issues you might encounter with your snow blower.

For issues not listed here or if solutions do not resolve the problem, contact an authorized service center.

6. Specifications

Key technical specifications for the Amico AST-28 Deluxe Snow Blower.

• Model: AST-28
• Engine Displacement: 265 cubic centimeters
• Engine Type: 4 Cycle
• Power Source: Gas Powered
• Start Type: Electric Start
• Product Dimensions: 147.32 x 109.22 x 71.12 cm (58 x 43 x 28 inches)
• Item Weight: 127.91 kg (282 pounds)
• Color: Black
• UPC: 689076957335

7. Warranty and Support

For warranty information, please refer to the separate warranty card included with your product or visit the official Amico website. Keep your proof of purchase for warranty claims.

For technical assistance, replacement parts, or service inquiries, please contact Amico customer support through their official channels. Always provide your model number (AST-28) and serial number when contacting support.
