1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your SCHÜTTE 24550 WINDOW Single-Lever Kitchen Faucet. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.
2. Safety Information
Observe all local plumbing and building codes during installation. Ensure the water supply is turned off before beginning any installation or maintenance work. If you are unsure about any step, consult a qualified plumber.
- Always turn off the main water supply before installation or maintenance.
- Wear appropriate personal protective equipment (e.g., gloves, eye protection).
- Do not use abrasive cleaners or harsh chemicals on the chrome finish.
- Ensure all connections are tight to prevent leaks.
3. Package Contents
Verify that all components are present before starting the installation:
- 1x SCHÜTTE WINDOW Kitchen Faucet with high, swivel, and foldable spout
- 2x DVGW-tested flexible connection hoses (350 mm)
- 1x Central connection for mounting
- 1x Installation instructions (multilingual, including English)
- Installation material (washers, nuts, etc.)
Figure 1: Package contents including the faucet, hoses, and mounting parts.
4. Setup and Installation
This faucet is designed for countertop mounting with a single hole. The installation process is straightforward.
- Prepare the Mounting Hole: Ensure your sink or countertop has a single mounting hole with a diameter between 35-50 mm.
- Insert the Faucet: Place the faucet into the mounting hole. Ensure the base gasket is correctly positioned to prevent water leakage.
- Secure the Faucet: From underneath the sink, attach the central connection and tighten the large plastic nut by hand. This design simplifies tightening in confined spaces.
- Connect Water Hoses: Attach the two flexible connection hoses (350 mm) to the hot and cold water inlets on the faucet and to your water supply lines. Use a spanner to ensure secure, leak-free connections.
- Check for Leaks: Once installed, slowly turn on the main water supply and check all connections for any leaks.
Figure 2: Simplified mounting process for drill diameters of 35-50 mm.
5. Operating Instructions
The SCHÜTTE 24550 WINDOW faucet offers convenient features for daily kitchen use.
5.1 Water Flow and Temperature Control
The single-lever handle controls both water flow and temperature. Move the lever up to increase flow and down to decrease it. Move the lever left for hot water and right for cold water. This faucet features a cold start function, meaning when the lever is in the central position, only cold water flows, saving energy.

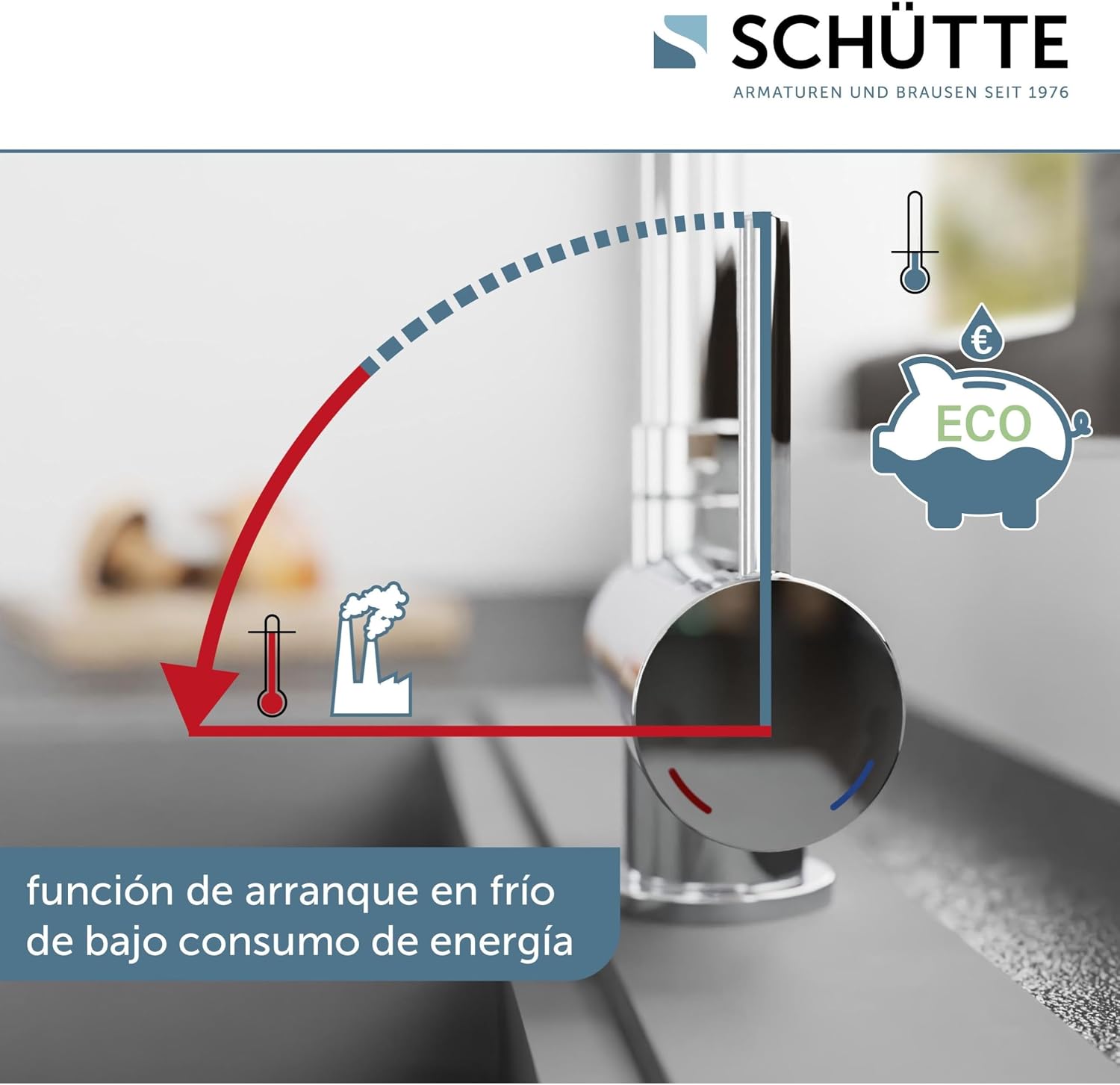

Figure 3: Cold start function for energy efficiency.
5.2 Swivel and Foldable Spout
The faucet's spout can swivel 360 degrees, providing flexibility for various sink tasks. Additionally, it features a foldable design, allowing the faucet to be easily lowered into the sink. This is particularly useful for sinks located in front of a window, enabling the window to be opened fully without obstruction.
Figure 4: Foldable spout for window clearance.
Figure 5: Faucet in use, demonstrating its under-window design.
5.3 Quiet Water Flow
The faucet is designed to provide a quiet water flow, minimizing noise during use.
Figure 6: Quiet water stream from the faucet.
6. Maintenance
Regular cleaning and maintenance will ensure the longevity and appearance of your faucet.
- Cleaning the Surface: Clean the chrome surface regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Avoid Harsh Chemicals: Do not use abrasive sponges, scouring agents, or cleaners containing alcohol, ammonia, or phosphoric acid, as these can damage the chrome finish.
- Aerator Maintenance: Periodically unscrew and clean the aerator at the end of the spout to remove any mineral deposits or debris that may affect water flow.
7. Troubleshooting
If you encounter any issues with your faucet, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valve; kinked supply hose. | Clean or replace aerator; ensure shut-off valves are fully open; check supply hoses for kinks. |
| Leaking from Spout | Worn cartridge; mineral deposits. | Replace the ceramic cartridge; clean internal components. |
| Leaking from Base | Loose mounting nut; damaged base gasket. | Tighten mounting nut from underneath the sink; replace base gasket. |
| Difficulty Swiveling/Folding Spout | Accumulation of debris or mineral deposits. | Clean the swivel mechanism; apply a silicone-based lubricant if necessary. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Schütte |
| Model Name | WINDOW |
| Model Number | 24550 |
| Recommended Use | Kitchen |
| Mounting Type | Countertop Mount, Single Hole |
| Material | Metal |
| Color | Chrome or Silver |
| Number of Handles | 1 (Single-Lever) |
| Special Features | Swivel, Foldable Spout |
| Spout Design | Foldable and Swivel |
| Flow Rate | 9 Liters per minute |
| Spout Height | 350 mm (approx. 260 mm when folded) |
| Hose Length | 350 mm |
| Product Weight | 1850 Grams |
| Item Dimensions (DxWxH) | 22.5 x 5 x 33.5 cm |
| Valve Type | Disc Valve |
| Origin | China |
| GTIN | 04008431245508 |
| ASIN | B0185QDQY2 |
Figure 7: Faucet dimensions (unfolded).
Figure 8: Faucet dimensions (folded).
9. Warranty and Support
SCHÜTTE stands by the quality of its products.
- Manufacturer's Warranty: This product comes with a 5-year manufacturer's warranty, subject to internal conditions.
- Spare Parts Availability: Spare parts are available in the EU for a duration of 5 years.
- Customer Support: For any questions or suggestions, you can contact SCHÜTTE at their Wallenhorst (NDS) location: +49 (0) 5407-81529-0 – 29.
