1. Introduction
This instruction manual provides essential information for the safe and efficient use of the Festo MS4/6-A8.ERS Adapter Module. It covers product overview, installation, operation, maintenance, troubleshooting, and technical specifications. Please read this manual thoroughly before installing or operating the device.
2. Safety Information
Always observe the following safety precautions to prevent personal injury and damage to the equipment:
- Ensure that installation and maintenance are performed by qualified personnel only.
- Disconnect power and depressurize the system before performing any work on the module.
- Use only genuine Festo spare parts and accessories.
- Do not exceed the specified operating pressures and temperatures.
- Protect the module from impact, moisture, and extreme temperatures.
- Follow all local and national safety regulations.
3. Product Overview
The Festo MS4/6-A8.ERS Adapter Module (Part Number 673592) is designed for integration within pneumatic systems. It serves as an adapter, facilitating connections or modifications within the MS series modular system. This module is supplied as a single unit.

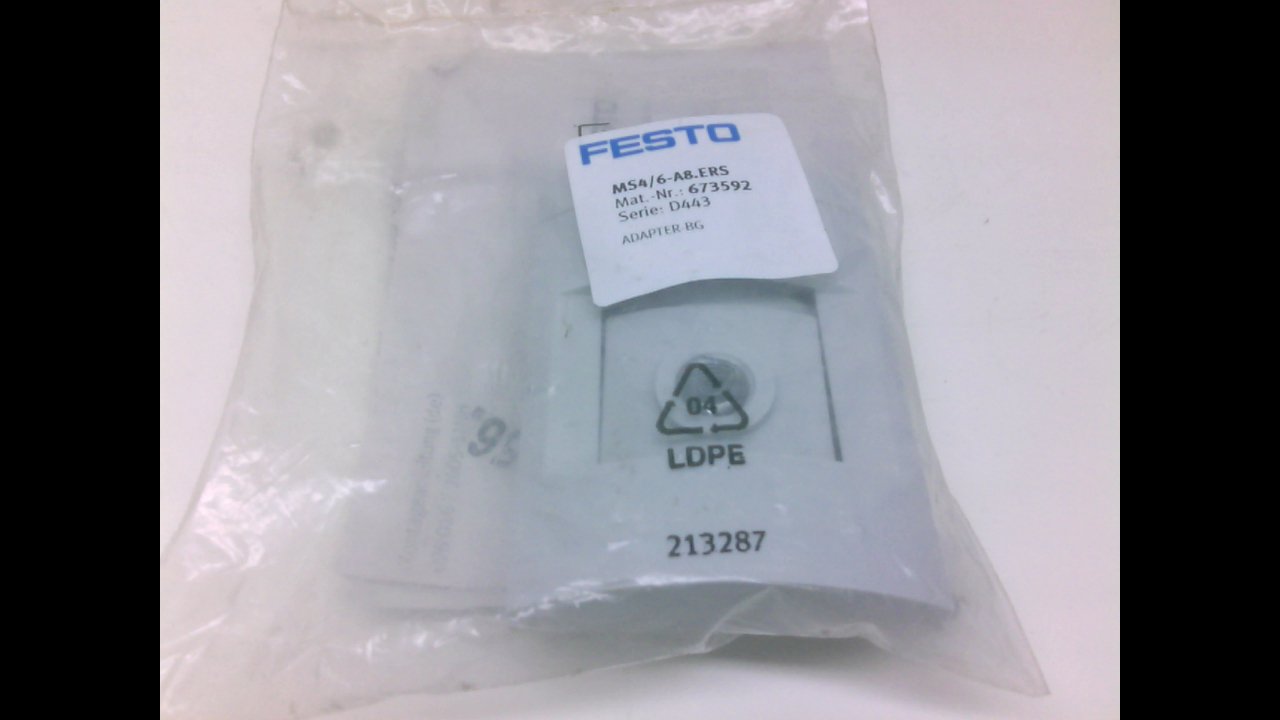

Figure 3.1: Festo MS4/6-A8.ERS Adapter Module as supplied in its protective packaging.
Figure 3.2: Side view of the Festo MS4/6-A8.ERS Adapter Module, showing its compact form factor within the packaging.
4. Setup and Installation
The MS4/6-A8.ERS adapter module is designed for easy integration into existing Festo MS series modular systems. Follow these general steps for installation:
- Preparation: Ensure the pneumatic system is depressurized and secured against accidental activation. Gather necessary tools.
- Module Placement: Identify the correct position for the adapter module within your MS series assembly. The module is designed to fit securely between other MS series components.
- Connection: Align the adapter module with the adjacent components. Ensure the seals are correctly seated. Use the provided fasteners or locking mechanisms to secure the module firmly in place.
- Leak Check: After installation, slowly repressurize the system and check all connections for leaks using appropriate leak detection methods.
- Functionality Test: Verify that the system operates as expected with the new adapter module installed.
Note: Specific installation details may vary depending on the exact configuration of your pneumatic system. Refer to the overall system documentation for detailed assembly instructions.
5. Operating Instructions
The Festo MS4/6-A8.ERS Adapter Module is a passive component within the pneumatic system. It does not require active operation or adjustments. Its function is to provide a specific connection or structural adaptation within the modular system. Once correctly installed, its operation is integral to the overall system's functionality.
- Ensure the system pressure remains within the specified limits for all connected components.
- Monitor the system for any unusual noises or pressure drops that might indicate a leak or malfunction.
6. Maintenance
The MS4/6-A8.ERS Adapter Module requires minimal maintenance. Regular inspection of the pneumatic system is recommended to ensure optimal performance and longevity.
- Visual Inspection: Periodically check the module and its connections for any signs of damage, wear, or corrosion.
- Leak Detection: Regularly check for air leaks around the module and its connections. Address any leaks promptly to maintain system efficiency.
- Cleaning: If necessary, clean the exterior of the module with a soft, damp cloth. Do not use aggressive cleaning agents or solvents.
- Seal Replacement: If seals show signs of wear or damage, they should be replaced by qualified personnel. Ensure the system is depressurized before replacing any seals.
7. Troubleshooting
This section provides guidance for common issues that may arise with the adapter module. For complex problems, contact Festo technical support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Air Leakage | Improperly seated seals, loose connections, damaged module. | Check and tighten connections. Inspect and replace damaged seals. If the module is damaged, replace it. |
| System Pressure Drop | Significant air leakage, blockage in the system (unlikely to be the adapter module itself). | Identify and fix all leaks. Check other system components for blockages. |
| Module Does Not Fit | Incorrect module type for the system, incompatible components. | Verify the part number (MS4/6-A8.ERS) against your system requirements. Ensure compatibility with other MS series components. |
8. Specifications
Technical specifications for the Festo MS4/6-A8.ERS Adapter Module:
- Model Number: MS4/6-A8.ERS
- Manufacturer Part Number: 673592
- Brand: FESTO
- Product Dimensions: Approximately 0.8 x 0.8 x 0.6 cm (0.31 x 0.31 x 0.24 inches)
- Product Weight: Approximately 757.5 g (1.67 lbs)
- Units in Package: 1
- ASIN: B015TL4KEQ
- Country of Origin: United Kingdom
Figure 8.1: Close-up view of the Festo MS4/6-A8.ERS Adapter Module, showing product labeling and details.
9. Warranty and Support
For warranty information and technical support regarding the Festo MS4/6-A8.ERS Adapter Module, please refer to the official Festo website or contact your local Festo representative. Keep your purchase receipt and product details handy when contacting support.
Festo Official Website: www.festo.com
