Introduction
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of the HES 5200C-630 All-Purpose Electric Strike. This device is designed for commercial and institutional access control applications, offering secure and reliable door locking and unlocking functionality when integrated with an access control system.
The HES 5200C-630 is compatible with cylindrical locksets and is designed to work with 501 and 501A faceplates.
Safety Information
- Professional Installation Recommended: Installation should be performed by qualified personnel familiar with electrical wiring and door hardware.
- Power Disconnection: Always disconnect power to the access control system and the electric strike before performing any installation, maintenance, or troubleshooting.
- Proper Wiring: Ensure all wiring conforms to local electrical codes and the manufacturer's specifications. Incorrect wiring can damage the unit or pose a safety hazard.
- Environmental Conditions: Do not expose the electric strike to extreme temperatures, moisture, or corrosive environments unless specifically rated for such conditions.
Setup and Installation
The HES 5200C-630 electric strike is designed for integration into a door frame to secure a door equipped with a cylindrical lockset. Refer to the detailed installation template provided with the product packaging for precise measurements and cutting instructions.
Installation Steps (General Overview):
- Prepare the Door Frame: Carefully mark and cut the mortise pocket in the door frame according to the provided template. Ensure the opening is clean and free of debris.
- Mount the Strike: Insert the electric strike into the prepared mortise pocket. Secure it using the screws provided, ensuring it is flush with the door frame surface.
- Connect Wiring: Route the power and control wires from your access control system to the electric strike. Connect the wires to the strike's terminals as per the wiring diagram (refer to the specific diagram included with your product for details on Normally Open (NO) or Normally Closed (NC) configurations).
- Test Functionality: Before fully securing the installation, apply power and test the strike's operation with the door closed. Ensure the latch bolt engages correctly and the strike releases/secures as expected with the access control system.
- Final Adjustments: Make any necessary adjustments to ensure smooth operation and proper alignment with the door's latch bolt.

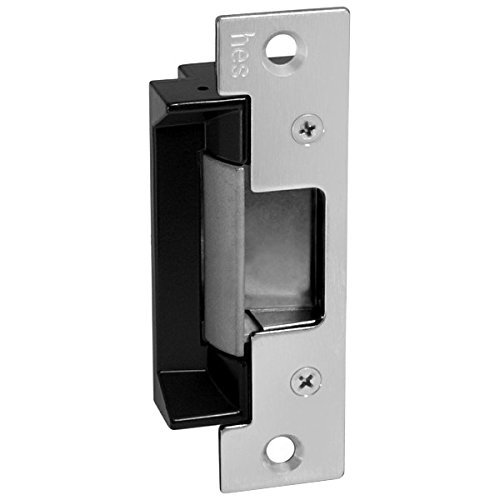

An image showing the HES 5200C-630 All-Purpose Electric Strike, typically used in commercial door applications. The strike features a durable metal construction and is designed for integration with access control systems.
Operating Instructions
The HES 5200C-630 electric strike operates in conjunction with an external access control system. Its function is to secure or release the door's latch bolt based on electrical signals from the access control panel.
- Secured State: When the access control system is in a secured state, the electric strike's jaw remains closed, preventing the door from being opened without authorization.
- Released State: Upon receiving an authorized signal from the access control system (e.g., card swipe, keypad entry), the electric strike's jaw will retract or pivot, allowing the door to be opened. The specific behavior (fail-safe or fail-secure) depends on the model configuration and wiring.
- Door Closure: When the door closes, the latch bolt will automatically engage with the strike's jaw, returning the door to a secured state (if the access control system permits).
Maintenance
Regular maintenance ensures the longevity and reliable operation of your HES 5200C-630 electric strike.
- Cleaning: Periodically clean the visible parts of the strike with a soft, dry cloth. Avoid abrasive cleaners or solvents that could damage the finish or internal components.
- Inspection: Annually inspect the strike for any signs of wear, damage, or misalignment. Check that all mounting screws are tight.
- Lubrication: The internal mechanisms are generally self-lubricating. Do not apply oil or grease unless specifically instructed by HES technical support, as this can attract dirt and hinder operation.
- Wiring Check: Ensure all wiring connections remain secure and free from corrosion.
Troubleshooting
If you encounter issues with your HES 5200C-630 electric strike, perform the following basic troubleshooting steps:
- Strike Not Releasing/Securing:
- Check the power supply to the strike and the access control panel.
- Verify all wiring connections are secure and correct according to the diagram.
- Ensure the access control system is functioning correctly and sending the appropriate signal.
- Check for any physical obstructions preventing the strike's jaw from moving freely.
- Buzzing Noise:
- A continuous buzzing noise may indicate an issue with the power supply (e.g., AC hum if using a DC strike with an unfiltered AC power source) or a mechanical obstruction.
- Ensure the strike is receiving the correct voltage and current.
- Door Latch Not Engaging Properly:
- Check the alignment of the door's latch bolt with the strike's opening. Adjust the strike or door hinges if necessary.
- Ensure the door closes completely and without excessive force.
If these steps do not resolve the issue, contact HES technical support or a qualified locksmith/installer.
Specifications
| Feature | Detail |
|---|---|
| Brand | HES |
| Model Number | 5200C-630 |
| Material | Aluminum, Metal |
| Recommended Uses | Commercial or institutional access control |
| Compatible Lock Type | Cylindrical (with 501 and 501A faceplates) |
| Item Weight | 1.3 pounds |
| Package Dimensions | 10.35 x 3.25 x 2 inches |
| UPC | 803983119376 |
Warranty Information
For detailed warranty information regarding the HES 5200C-630 electric strike, please refer to the official HES website or contact HES customer service directly. Warranty terms and conditions may vary.
Customer Support
If you require further assistance, technical support, or have questions not covered in this manual, please contact HES customer service through their official channels. Have your product model number (5200C-630) and any relevant purchase information ready when contacting support.
