1. Introduction
Thank you for choosing the Jaclo S206-PCH Round Rain Machine. This 6-inch fixed showerhead is designed to provide a luxurious rain-like shower experience with its polished chrome finish. This manual provides essential information for the safe installation, operation, and maintenance of your new showerhead. Please read these instructions carefully before installation and retain them for future reference.
2. Safety Information
- Always turn off the main water supply before attempting any installation or maintenance.
- Ensure all connections are secure to prevent leaks. Do not overtighten, as this may damage the product or plumbing.
- Use appropriate tools and follow all local plumbing codes. If you are unsure about any step, consult a qualified plumber.
- Avoid using harsh chemicals or abrasive cleaners on the polished chrome finish, as this can cause damage.
- Be mindful of water temperature to prevent scalding.
3. Package Contents
Verify that all components are present before beginning installation:
- One (1) Jaclo S206-PCH Round Rain Machine, 6-inch, Polished Chrome showerhead.
If any parts are missing or damaged, please contact Jaclo customer service.
4. Setup and Installation
This section guides you through the installation of your Jaclo S206-PCH showerhead. No specialized tools are required beyond standard household items.
Tools Required:
- Adjustable Wrench
- Plumber's Tape (Thread Sealant)
- Soft Cloth
Installation Steps:
- Turn Off Water Supply: Locate the main water shut-off valve for your shower or entire home and turn it off to prevent water flow during installation.
- Remove Old Showerhead (if applicable): If replacing an existing showerhead, turn it counter-clockwise by hand or with an adjustable wrench. Use a soft cloth to protect the finish if using a wrench. Clean any old plumber's tape or debris from the shower arm threads.
- Prepare Shower Arm Threads: Wrap 3-4 layers of plumber's tape clockwise around the threads of the shower arm. This helps create a watertight seal and prevents leaks.
- Attach New Showerhead: Carefully thread the Jaclo S206-PCH showerhead onto the shower arm by turning it clockwise. Hand-tighten until snug.
- Final Tightening: Use an adjustable wrench to gently tighten the showerhead an additional quarter to half turn. Do not overtighten, as this can strip threads or crack the showerhead.
- Restore Water Supply and Test: Turn the main water supply back on. Check for any leaks around the connection point. If leaks occur, turn off the water, re-tighten slightly, or re-apply plumber's tape.

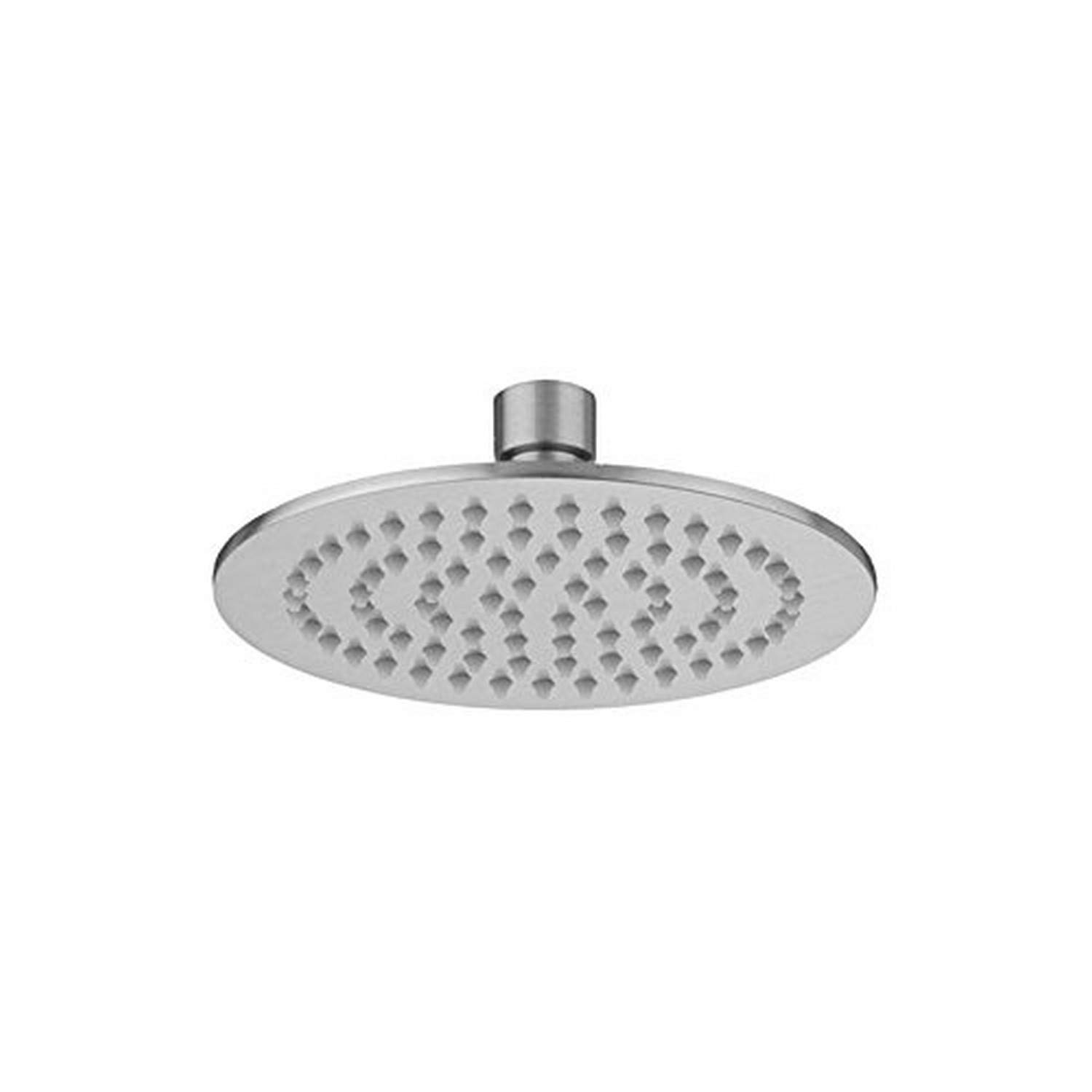

Image 1: The Jaclo S206-PCH Round Rain Machine, 6-inch, Polished Chrome showerhead. This image shows the product as it appears, ready for installation onto a standard shower arm.
5. Operation
The Jaclo S206-PCH Round Rain Machine is a fixed showerhead designed for simplicity. To operate, simply turn on your shower's water supply using your existing shower valve. The showerhead will deliver a consistent rain-like spray pattern.
6. Maintenance
Proper care will ensure the longevity and appearance of your Jaclo showerhead.
- Cleaning the Finish: Clean the polished chrome finish regularly with a soft cloth and mild soap and water. Rinse thoroughly and dry immediately to prevent water spots.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or any cleaners containing bleach or alcohol, as these can damage the finish.
- Mineral Buildup: If you notice reduced water flow or irregular spray patterns due to mineral buildup, gently rub the rubber nozzles on the showerhead to dislodge deposits. For stubborn buildup, a solution of white vinegar and water can be applied with a soft cloth, then rinsed thoroughly.
7. Troubleshooting
If you encounter issues with your Jaclo S206-PCH showerhead, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Mineral buildup in nozzles; partially closed water valve; low household water pressure. | Clean showerhead nozzles (see Maintenance); ensure water supply valve is fully open; consult a plumber for household water pressure issues. |
| Leaks at Connection Point | Loose connection; insufficient plumber's tape; damaged threads. | Turn off water, re-tighten connection; re-apply plumber's tape; if threads are damaged, replacement of shower arm or showerhead may be necessary. |
| Irregular Spray Pattern | Clogged nozzles due to mineral deposits. | Gently rub the rubber nozzles to clear blockages (see Maintenance). |
8. Specifications
Detailed specifications for the Jaclo S206-PCH Round Rain Machine:
| Feature | Detail |
|---|---|
| Model Number | S206-PCH |
| Product Dimensions | 6 x 6 x 2 inches |
| Item Weight | 1.4 pounds |
| Size | 6 Inch |
| Color | Polished Chrome |
| Shape | Round |
| Manufacturer | Standard Plumbing Supply |
| Country of Origin | United States |
| UPC | 020111494833 |
9. Official Product Video
Video 1: A brief overview of the Jaclo S206-PCH Round Rain Machine. This video demonstrates the product's appearance and features.
10. Warranty and Support
Jaclo products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty documentation included with your purchase or visit the official Jaclo website.
For technical support, replacement parts, or warranty claims, please contact Jaclo customer service directly. Keep your purchase receipt as proof of purchase for any warranty-related inquiries.
- Jaclo Official Website: www.jaclo.com (Please verify current contact information on the website)
