Introduction
The Franklin Electric Pumptec-Plus 5800060100 is an electronic control system designed to protect single-phase submersible and above-ground pump motors from various fault conditions. This system monitors motor load and incoming voltage to prevent damage caused by dry-run conditions, over/underload, and voltage fluctuations. It is suitable for pumps ranging from 1/2 HP to 5 HP, operating on 230 Volts single phase.
Important Safety Information
WARNING: Risk of electric shock. Disconnect power before servicing. This device operates with high voltage. Installation and servicing should only be performed by qualified personnel. Failure to follow these instructions can result in serious injury or death.
Always ensure the power supply is disconnected before attempting any installation, maintenance, or troubleshooting procedures. Observe all local and national electrical codes.
Product Features
- Protects single-phase submersible and above-ground pump motors.
- Designed to shut off the well pump when it senses low water (dry-run protection).
- Monitors for over/underload conditions.
- Monitors for over/under voltage conditions.
- Compatible with 1/2 HP to 5 HP motors.
- Operates on 230 Volt Single Phase power.
- Automatic reset feature with adjustable time settings.
Setup and Installation
Installation of the Pumptec-Plus system requires electrical knowledge. It is recommended that a qualified electrician perform the installation.
Wiring Connections
- Use only 75°C copper wiring.
- Tighten terminals to 36 in-lbs.
- For circuit use non-time delay.
- Type-K or Type-L fuse rated 70A, 240V.
- Ensure all unused wire openings are permanently closed.

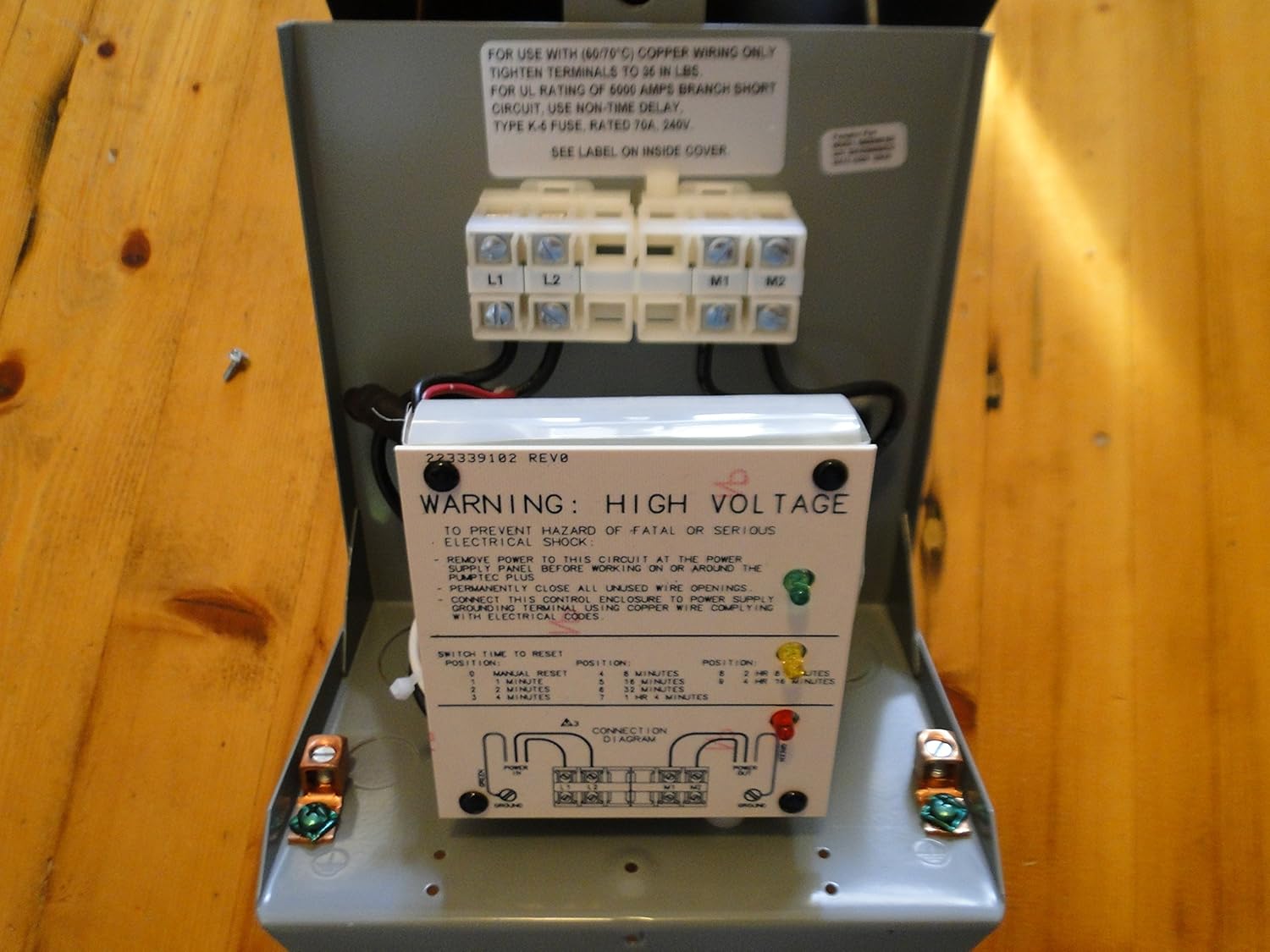

Figure 1: Internal Wiring and Reset Diagram. This image displays the internal components of the Pumptec-Plus, including the L1, L2 (line input) and M1, M2 (motor output) terminals. A prominent warning about high voltage is visible. Below the terminals, a diagram illustrates the "Switch Time to Reset" settings, allowing adjustment of the automatic reset delay.
Reset Time Configuration
The Pumptec-Plus features an adjustable reset timer. Refer to the connection diagram inside the unit (Figure 1) to set the desired reset delay. Available positions include:
- Position 1: Manual Reset
- Position 2: 5 Minutes
- Position 3: 15 Minutes
- Position 4: 30 Minutes
- Position 5: 60 Minutes
- Position 6: 2 Hours
- Position 7: 4 Hours
Operating Instructions
Once installed and powered, the Pumptec-Plus will automatically monitor your pump system. The front panel features indicator lights to provide status information.
Figure 2: Pumptec-Plus Front Panel. This image shows the exterior of the Pumptec-Plus control box, highlighting the indicator lights for Power, Load, and Voltage, along with the Reset button.
Indicator Lights
| Indicator | Status | Meaning |
|---|---|---|
| POWER | Solid | Pumptec Powered |
| POWER | Flashing | Motor Running |
| LOAD | Solid | Underload (e.g., dry run) |
| LOAD | Flashing | Overload |
| VOLTAGE | Solid | Under Voltage |
| VOLTAGE | Flashing | Over Voltage |
| LOAD & VOLTAGE | Flashing | Rapid Cycling |
Resetting the System
If the Pumptec-Plus detects a fault, it will shut down the pump and indicate the fault via the LED lights. Depending on the configured reset time, the unit will attempt to restart the pump after the set delay. For an immediate reset, press the "RESET" button on the front panel.
Maintenance
The Franklin Electric Pumptec-Plus is designed for minimal maintenance.
- Periodically inspect the unit for any visible damage or loose connections.
- Ensure the enclosure is kept clean and free from dust and debris.
- Do not attempt to open the sealed internal components. Refer servicing to qualified technicians.
Troubleshooting
Use the indicator lights on the front panel to diagnose common issues.
- Pump not running, POWER light solid, LOAD light solid: Indicates an underload condition, most commonly a dry well. Check water levels. The unit will reset after the set delay.
- Pump not running, POWER light solid, LOAD light flashing: Indicates an overload condition. Check the pump motor for obstructions or mechanical issues.
- Pump not running, POWER light solid, VOLTAGE light solid: Indicates under voltage. Check the power supply to the unit.
- Pump not running, POWER light solid, VOLTAGE light flashing: Indicates over voltage. Check the power supply to the unit.
- Pump cycling rapidly, LOAD & VOLTAGE lights flashing: Indicates rapid cycling. This could be due to a pressure tank issue or a faulty check valve.
- No lights: Check the main power supply to the Pumptec-Plus unit.
If the issue persists after basic troubleshooting, contact a qualified pump technician or Franklin Electric customer support.
Specifications
- Model: 5800060100
- Brand: Franklin Electric
- HP Range: 1/2 HP to 5 HP
- Voltage: 230 Volts Single Phase
- Frequency: 60 Hz
- Material: Aluminum
- Color: Black
- Item Weight: Approximately 0.01 Ounces (Note: This value is provided in product data and may be a nominal or packaging weight.)
- Product Dimensions: 5.91 x 5.91 x 5.91 inches
- UPC: 755717496645
Warranty and Support
For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Franklin Electric website. Keep your purchase receipt for warranty claims.
Additional Product Views
Figure 3: Product Packaging. This image shows the packaging label for the Franklin Electric Pumptec-Plus, clearly displaying the model number 5800060100, 230 Volts Single Phase, 60 Hz, and an HP range of 1/2 - 5.
Figure 4: Angled Product View. An angled perspective of the Franklin Electric Pumptec-Plus unit, showcasing its compact gray enclosure and the blue front label with the product name and indicator light descriptions.
