1. Product Overview
The TATTU 3S 11.1V 1300mAh 45C LiPo Battery Pack is designed for high-performance RC models, including drones and FPV racing quadcopters. This battery provides reliable power with a high discharge rate, ensuring optimal performance for your applications.
Image 1.1: The TATTU 3S 11.1V 1300mAh LiPo battery, featuring an XT60 connector and balance lead.
2. Specifications
| Feature | Value |
|---|---|
| Battery Voltage | 11.1V |
| Configuration | 3S1P (3 Cells in Series, 1 Parallel) |
| Capacity | 1300mAh |
| Discharge Rate | 45C |
| Plug Type | XT60 |
| Dimensions | 72 x 36 x 23 mm (2.83 x 1.42 x 0.91 inches) |
| Approx. Weight | 119g (4.2oz) |
Image 2.1: Detailed specifications and dimensions of the TATTU 1300mAh 3S LiPo battery.
3. Safety Guidelines
Lithium Polymer (LiPo) batteries require careful handling to ensure safety and longevity. Failure to follow these guidelines can result in fire, personal injury, and property damage.
- Charging: Always use a LiPo-compatible charger with a balance function. Never charge unattended. Charge in a fire-safe area, away from flammable materials.
- Discharging: Do not over-discharge the battery. Stop use if the voltage drops below 3.0V per cell (9.0V for a 3S battery).
- Storage: Store LiPo batteries at room temperature (15-25°C or 59-77°F) and at a storage voltage of 3.8V per cell. Keep away from direct sunlight and extreme temperatures.
- Physical Damage: Inspect batteries for swelling, punctures, or other damage before each use. Do not use a damaged battery.
- Disposal: Dispose of damaged or old LiPo batteries responsibly. Fully discharge the battery before disposal. Consult local regulations for proper disposal methods.
- Temperature: Do not expose the battery to temperatures above 60°C (140°F).
- Water: Keep the battery away from water and moisture.

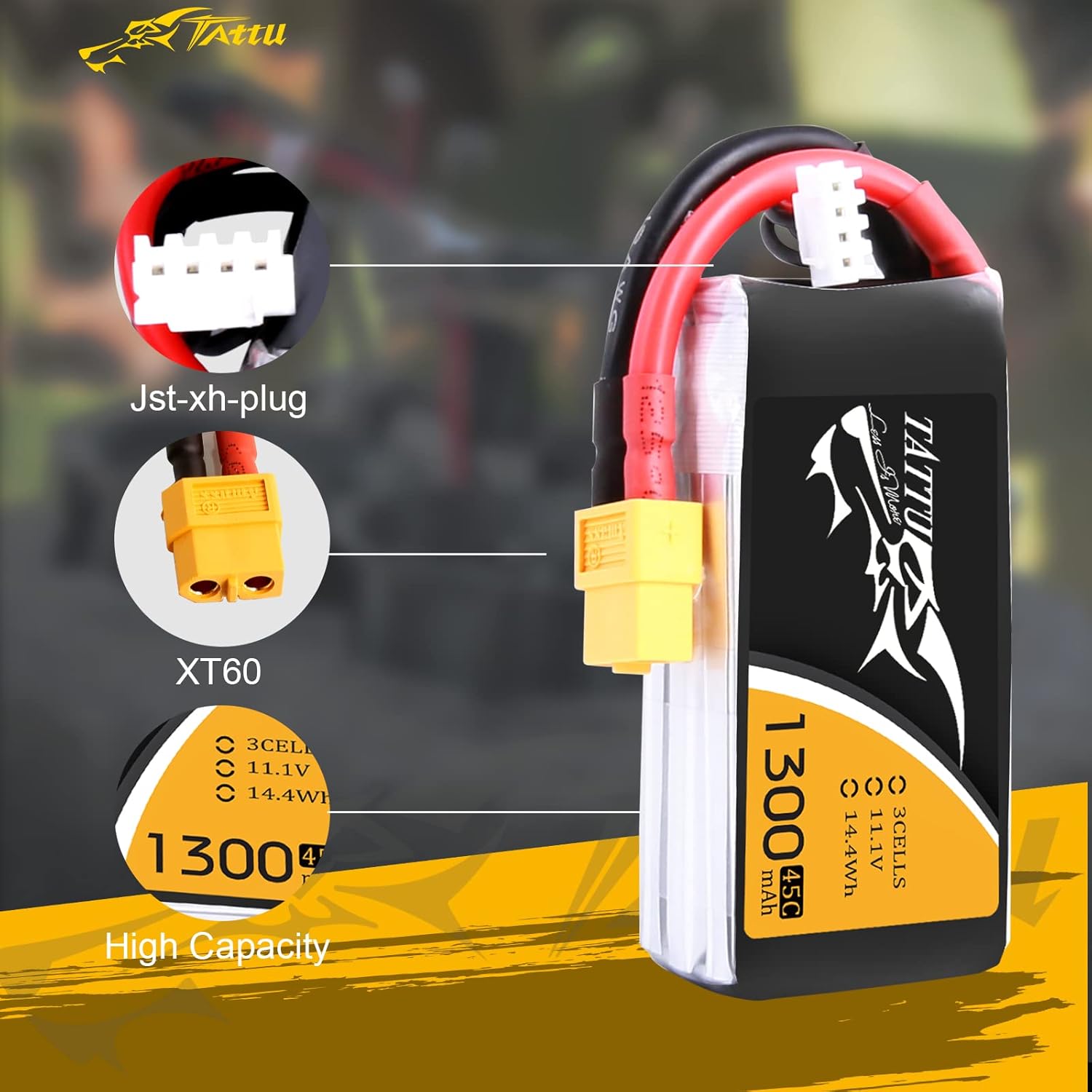

Image 3.1: The XT60 main power connector and JST-XH balance plug on the TATTU LiPo battery, essential for safe charging and operation.
4. Setup and Initial Use
- Initial Inspection: Upon receiving your battery, inspect it for any physical damage or swelling.
- First Charge: Fully charge the battery using a compatible LiPo balance charger before its first use. Ensure the charger settings match the battery's specifications (3S, 11.1V, 1300mAh).
- Connection: Connect the XT60 plug to your RC model's Electronic Speed Controller (ESC) and the balance lead to your charger for balanced charging.
- Compatibility: This battery is compatible with various RC models, including QAV250, QAV180/210, Vortex 285, Mini H, FLIP FPV 250S MINI, FLIP FPV FRAME, FLIP FPV 260H MINI, Emax Nighthawk 250, ZMR 250, HOVERSHIP MHQ2(270), ZUUL RACEHOUND 265/285, MOJO 280, and VECTOR 250.
5. Operating Guidelines
- Pre-Flight Check: Always check the battery voltage before each flight or use. Ensure it is fully charged.
- Secure Mounting: Securely mount the battery in your RC model to prevent movement during operation, which can cause damage or affect balance.
- Monitoring: Monitor battery voltage during use, especially in flight. Use a low-voltage alarm or telemetry system to avoid over-discharging.
- Discharge Rate: The 45C discharge rate provides high power output suitable for demanding applications. Ensure your model's ESC and motors can handle this power.
Video 5.1: Official Tattu video showcasing the battery's performance in various RC applications, including drones and RC cars. This video demonstrates the battery's power and reliability in action.
6. Maintenance and Storage
- Post-Use: After use, allow the battery to cool down before recharging. Do not store fully charged or fully discharged for extended periods.
- Storage Voltage: For long-term storage, charge or discharge the battery to its storage voltage (3.8V per cell).
- Physical Protection: Store batteries in a fire-resistant LiPo bag or container to minimize risk in case of an incident.
- Regular Inspection: Periodically inspect batteries for any signs of damage, swelling, or unusual odors.
Image 6.1: An illustration highlighting the advantages of TATTU LiPo batteries, including a stable discharge rate curve, light weight, long cycle life, ultra-low impedance, and high-quality materials.
7. Troubleshooting
- Battery Not Charging:
- Ensure all connections (main and balance leads) are secure and correctly plugged into the charger.
- Verify charger settings match the battery's cell count and type (3S LiPo).
- Check for any visible damage to the battery or connectors.
- Reduced Flight Time/Performance:
- Battery may be aging or nearing its end of life.
- Check for signs of puffing or swelling, indicating internal damage.
- Ensure the battery is fully charged before use.
- Battery Swelling:
- Immediately discontinue use. Swelling indicates internal damage and a potential safety hazard.
- Store the swollen battery in a fire-safe container and dispose of it properly.
8. Warranty and Support
The TATTU battery comes with a 60-day money-back guarantee and an 18-month warranty. For any product issues or inquiries, please contact customer service directly through your order details. Our team is available 24 hours to provide friendly support.
For further assistance, visit the official TATTU store: TATTU Store.
Image 8.1: The TATTU LiPo battery powering various FPV drones and multirotors, demonstrating its wide application and strong endurance.
